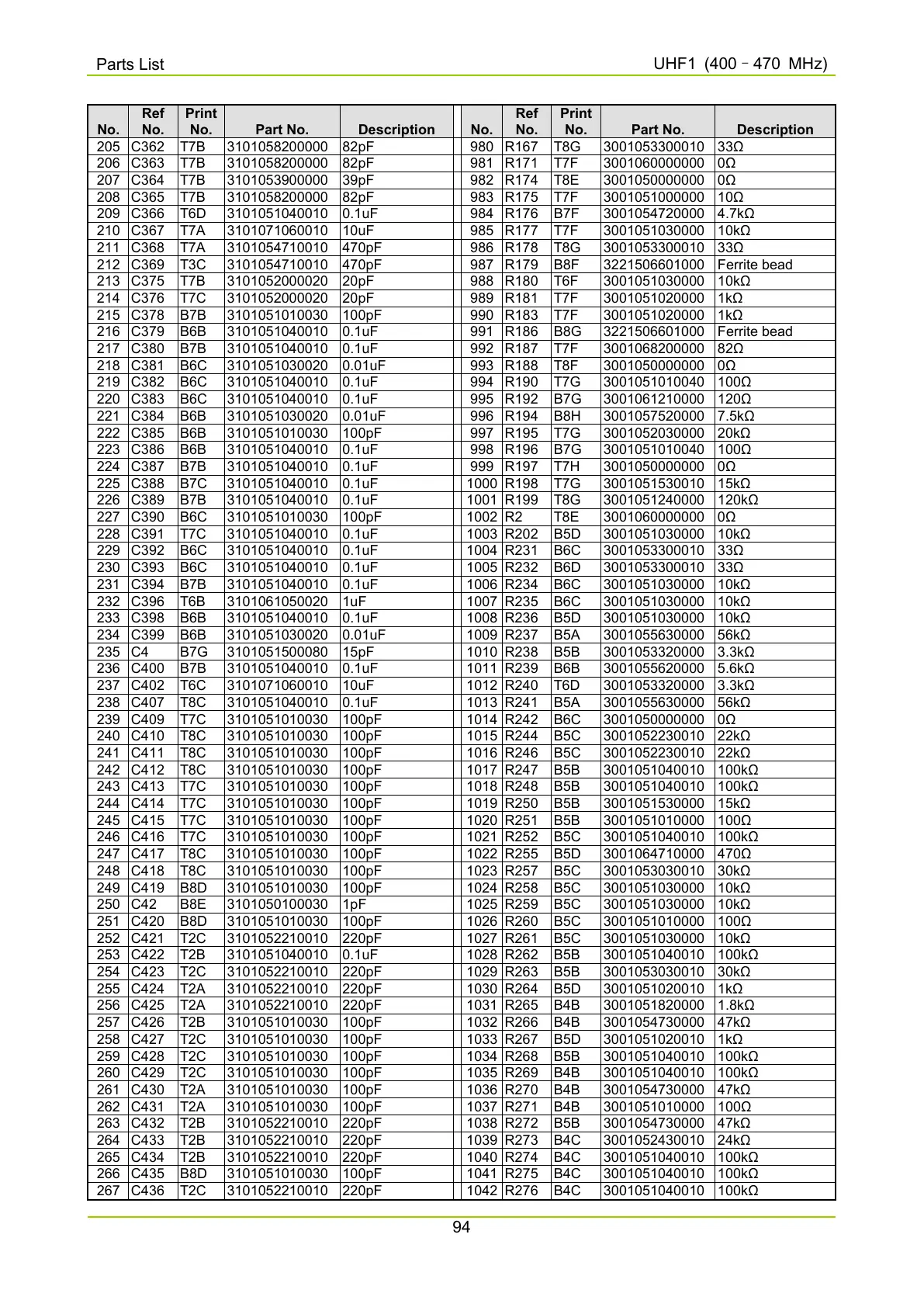

Hytera MD78X Service Manual

Parts List
UHF1 (400
–
470 MHz)
94
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
205
C362
T7B
3101058200000
82pF
980
R167
T8G
3001053300010
33Ω
206
C363
T7B
3101058200000
82pF
981
R171
T7F
3001060000000
0Ω
207
C364
T7B
3101053900000
39pF
982
R174
T8E
3001050000000
0Ω
208
C365
T7B
3101058200000
82pF
983
R175
T7F
3001051000000
10Ω
209
C366
T6D
3101051040010
0.1uF
984
R176
B7F
3001054720000
4.7kΩ
210
C367
T7A
3101071060010
10uF
985
R177
T7F
3001051030000
10kΩ
211
C368
T7A
3101054710010
470pF
986
R178
T8G
3001053300010
33Ω
212
C369
T3C
3101054710010
470pF
987
R179
B8F
3221506601000
Ferrite bead
213
C375
T7B
3101052000020
20pF
988
R180
T6F
3001051030000
10kΩ
214
C376
T7C
3101052000020
20pF
989
R181
T7F
3001051020000
1kΩ
215
C378
B7B
3101051010030
100pF
990
R183
T7F
3001051020000
1kΩ
216
C379
B6B
3101051040010
0.1uF
991
R186
B8G
3221506601000
Ferrite bead
217
C380
B7B
3101051040010
0.1uF
992
R187
T7F
3001068200000
82Ω
218
C381
B6C
3101051030020
0.01uF
993
R188
T8F
3001050000000
0Ω
219
C382
B6C
3101051040010
0.1uF
994
R190
T7G
3001051010040
100Ω
220
C383
B6C
3101051040010
0.1uF
995
R192
B7G
3001061210000
120Ω
221
C384
B6B
3101051030020
0.01uF
996
R194
B8H
3001057520000
7.5kΩ
222
C385
B6B
3101051010030
100pF
997
R195
T7G
3001052030000
20kΩ
223
C386
B6B
3101051040010
0.1uF
998
R196
B7G
3001051010040
100Ω
224
C387
B7B
3101051040010
0.1uF
999
R197
T7H
3001050000000
0Ω
225
C388
B7C
3101051040010
0.1uF
1000
R198
T7G
3001051530010
15kΩ
226
C389
B7B
3101051040010
0.1uF
1001
R199
T8G
3001051240000
120kΩ
227
C390
B6C
3101051010030
100pF
1002
R2
T8E
3001060000000
0Ω
228
C391
T7C
3101051040010
0.1uF
1003
R202
B5D
3001051030000
10kΩ
229
C392
B6C
3101051040010
0.1uF
1004
R231
B6C
3001053300010
33Ω
230
C393
B6C
3101051040010
0.1uF
1005
R232
B6D
3001053300010
33Ω
231
C394
B7B
3101051040010
0.1uF
1006
R234
B6C
3001051030000
10kΩ
232
C396
T6B
3101061050020
1uF
1007
R235
B6C
3001051030000
10kΩ
233
C398
B6B
3101051040010
0.1uF
1008
R236
B5D
3001051030000
10kΩ
234
C399
B6B
3101051030020
0.01uF
1009
R237
B5A
3001055630000
56kΩ
235
C4
B7G
3101051500080
15pF
1010
R238
B5B
3001053320000
3.3kΩ
236
C400
B7B
3101051040010
0.1uF
1011
R239
B6B
3001055620000
5.6kΩ
237
C402
T6C
3101071060010
10uF
1012
R240
T6D
3001053320000
3.3kΩ
238
C407
T8C
3101051040010
0.1uF
1013
R241
B5A
3001055630000
56kΩ
239
C409
T7C
3101051010030
100pF
1014
R242
B6C
3001050000000
0Ω
240
C410
T8C
3101051010030
100pF
1015
R244
B5C
3001052230010
22kΩ
241
C411
T8C
3101051010030
100pF
1016
R246
B5C
3001052230010
22kΩ
242
C412
T8C
3101051010030
100pF
1017
R247
B5B
3001051040010
100kΩ
243
C413
T7C
3101051010030
100pF
1018
R248
B5B
3001051040010
100kΩ
244
C414
T7C
3101051010030
100pF
1019
R250
B5B
3001051530000
15kΩ
245
C415
T7C
3101051010030
100pF
1020
R251
B5B
3001051010000
100Ω
246
C416
T7C
3101051010030
100pF
1021
R252
B5C
3001051040010
100kΩ
247
C417
T8C
3101051010030
100pF
1022
R255
B5D
3001064710000
470Ω
248
C418
T8C
3101051010030
100pF
1023
R257
B5C
3001053030010
30kΩ
249
C419
B8D
3101051010030
100pF
1024
R258
B5C
3001051030000
10kΩ
250
C42
B8E
3101050100030
1pF
1025
R259
B5C
3001051030000
10kΩ
251
C420
B8D
3101051010030
100pF
1026
R260
B5C
3001051010000
100Ω
252
C421
T2C
3101052210010
220pF
1027
R261
B5C
3001051030000
10kΩ
253
C422
T2B
3101051040010
0.1uF
1028
R262
B5B
3001051040010
100kΩ
254
C423
T2C
3101052210010
220pF
1029
R263
B5B
3001053030010
30kΩ
255
C424
T2A
3101052210010
220pF
1030
R264
B5D
3001051020010
1kΩ
256
C425
T2A
3101052210010
220pF
1031
R265
B4B
3001051820000
1.8kΩ
257
C426
T2B
3101051010030
100pF
1032
R266
B4B
3001054730000
47kΩ
258
C427
T2C
3101051010030
100pF
1033
R267
B5D
3001051020010
1kΩ
259
C428
T2C
3101051010030
100pF
1034
R268
B5B
3001051040010
100kΩ
260
C429
T2C
3101051010030
100pF
1035
R269
B4B
3001051040010
100kΩ
261
C430
T2A
3101051010030
100pF
1036
R270
B4B
3001054730000
47kΩ
262
C431
T2A
3101051010030
100pF
1037
R271
B4B
3001051010000
100Ω
263
C432
T2B
3101052210010
220pF
1038
R272
B5B
3001054730000
47kΩ
264
C433
T2B
3101052210010
220pF
1039
R273
B4C
3001052430010
24kΩ
265
C434
T2B
3101052210010
220pF
1040
R274
B4C
3001051040010
100kΩ
266
C435
B8D
3101051010030
100pF
1041
R275
B4C
3001051040010
100kΩ
267
C436
T2C
3101052210010
220pF
1042
R276
B4C
3001051040010
100kΩ
