Hytera MD78X Service Manual

UHF3 (350
–
400 MHz)
Parts List
75

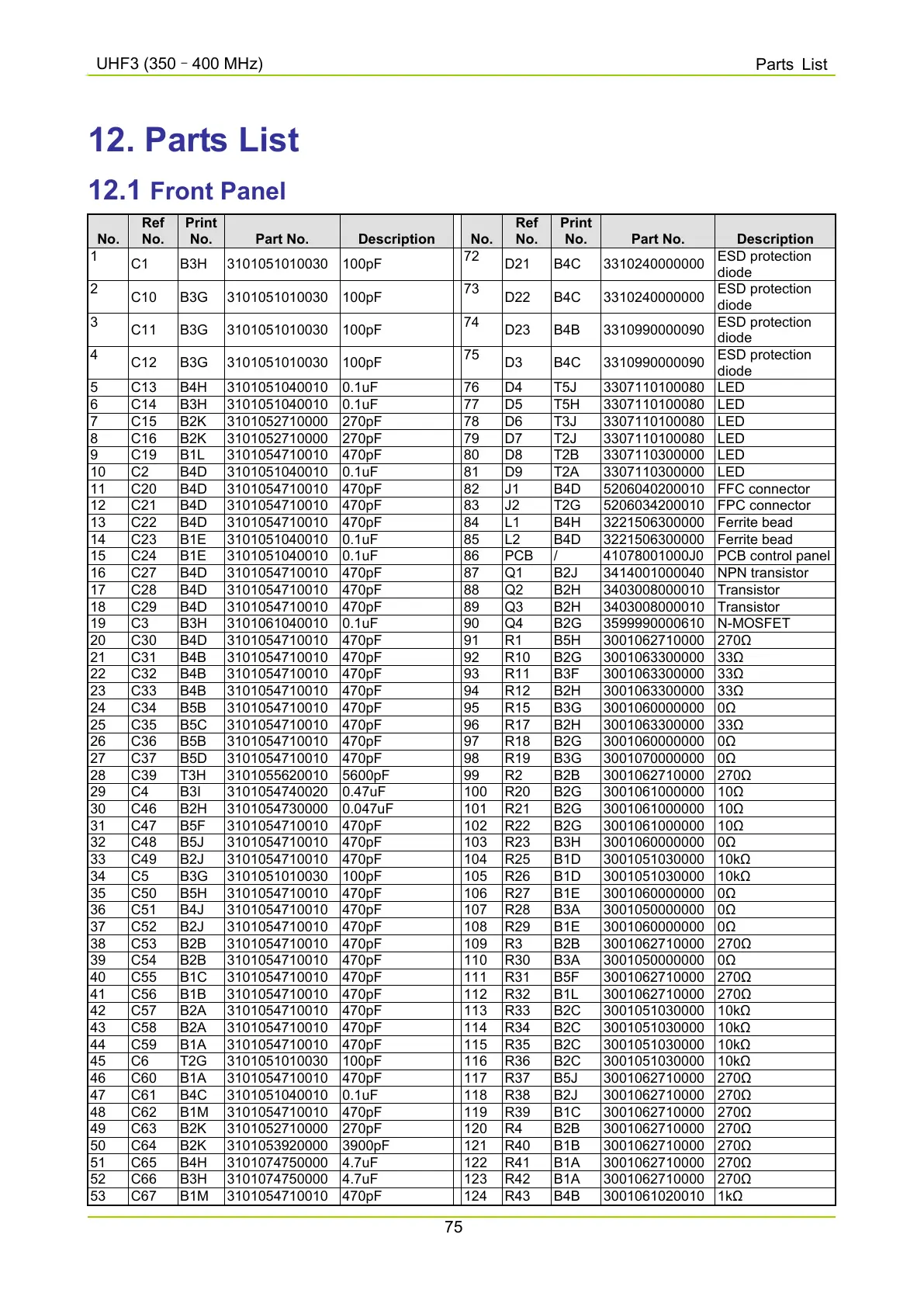

12. Parts List
12.1 Front Panel
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
1
C1 B3H 3101051010030 100pF
72
D21 B4C 3310240000000
ESD protection
diode
2
C10 B3G 3101051010030 100pF
73
D22 B4C 3310240000000
ESD protection
diode
3
C11 B3G 3101051010030 100pF
74
D23 B4B 3310990000090
ESD protection
diode
4
C12 B3G 3101051010030 100pF
75
D3 B4C 3310990000090
ESD protection
diode
5
C13
B4H
3101051040010
0.1uF
76
D4
T5J
3307110100080
LED
6
C14
B3H
3101051040010
0.1uF
77
D5
T5H
3307110100080
LED
7
C15
B2K
3101052710000
270pF
78
D6
T3J
3307110100080
LED
8
C16
B2K
3101052710000
270pF
79
D7
T2J
3307110100080
LED
9
C19
B1L
3101054710010
470pF
80
D8
T2B
3307110300000
LED
10
C2
B4D
3101051040010
0.1uF
81
D9
T2A
3307110300000
LED
11
C20
B4D
3101054710010
470pF
82
J1
B4D
5206040200010
FFC connector
12
C21
B4D
3101054710010
470pF
83
J2
T2G
5206034200010
FPC connector
13
C22
B4D
3101054710010
470pF
84
L1
B4H
3221506300000
Ferrite bead
14
C23
B1E
3101051040010
0.1uF
85
L2
B4D
3221506300000
Ferrite bead
15
C24
B1E
3101051040010
0.1uF
86
PCB
/
41078001000J0
PCB control panel
16
C27
B4D
3101054710010
470pF
87
Q1
B2J
3414001000040
NPN transistor
17
C28
B4D
3101054710010
470pF
88
Q2
B2H
3403008000010
Transistor
18
C29
B4D
3101054710010
470pF
89
Q3
B2H
3403008000010
Transistor
19
C3
B3H
3101061040010
0.1uF
90
Q4
B2G
3599990000610
N-MOSFET
20
C30
B4D
3101054710010
470pF
91
R1
B5H
3001062710000
270Ω
21
C31
B4B
3101054710010
470pF
92
R10
B2G
3001063300000
33Ω
22
C32
B4B
3101054710010
470pF
93
R11
B3F
3001063300000
33Ω
23
C33
B4B
3101054710010
470pF
94
R12
B2H
3001063300000
33Ω
24
C34
B5B
3101054710010
470pF
95
R15
B3G
3001060000000
0Ω
25
C35
B5C
3101054710010
470pF
96
R17
B2H
3001063300000
33Ω
26
C36
B5B
3101054710010
470pF
97
R18
B2G
3001060000000
0Ω
27
C37
B5D
3101054710010
470pF
98
R19
B3G
3001070000000
0Ω
28
C39
T3H
3101055620010
5600pF
99
R2
B2B
3001062710000
270Ω
29
C4
B3I
3101054740020
0.47uF
100
R20
B2G
3001061000000
10Ω
30
C46
B2H
3101054730000
0.047uF
101
R21
B2G
3001061000000
10Ω
31
C47
B5F
3101054710010
470pF
102
R22
B2G
3001061000000
10Ω
32
C48
B5J
3101054710010
470pF
103
R23
B3H
3001060000000
0Ω
33
C49
B2J
3101054710010
470pF
104
R25
B1D
3001051030000
10kΩ
34
C5
B3G
3101051010030
100pF
105
R26
B1D
3001051030000
10kΩ
35
C50
B5H
3101054710010
470pF
106
R27
B1E
3001060000000
0Ω
36
C51
B4J
3101054710010
470pF
107
R28
B3A
3001050000000
0Ω
37
C52
B2J
3101054710010
470pF
108
R29
B1E
3001060000000
0Ω
38
C53
B2B
3101054710010
470pF
109
R3
B2B
3001062710000
270Ω
39
C54
B2B
3101054710010
470pF
110
R30
B3A
3001050000000
0Ω
40
C55
B1C
3101054710010
470pF
111
R31
B5F
3001062710000
270Ω
41
C56
B1B
3101054710010
470pF
112
R32
B1L
3001062710000
270Ω
42
C57
B2A
3101054710010
470pF
113
R33
B2C
3001051030000
10kΩ
43
C58
B2A
3101054710010
470pF
114
R34
B2C
3001051030000
10kΩ
44
C59
B1A
3101054710010
470pF
115
R35
B2C
3001051030000
10kΩ
45
C6
T2G
3101051010030
100pF
116
R36
B2C
3001051030000
10kΩ
46
C60
B1A
3101054710010
470pF
117
R37
B5J
3001062710000
270Ω
47
C61
B4C
3101051040010
0.1uF
118
R38
B2J
3001062710000
270Ω
48
C62
B1M
3101054710010
470pF
119
R39
B1C
3001062710000
270Ω
49
C63
B2K
3101052710000
270pF
120
R4
B2B
3001062710000
270Ω
50
C64
B2K
3101053920000
3900pF
121
R40
B1B
3001062710000
270Ω
51
C65
B4H
3101074750000
4.7uF
122
R41
B1A
3001062710000
270Ω
52
C66
B3H
3101074750000
4.7uF
123
R42
B1A
3001062710000
270Ω
53
C67
B1M
3101054710010
470pF
124
R43
B4B
3001061020010
1kΩ
