Hytera MD78X Service Manual

UHF1 (400
–
470 MHz)
Exploded View and Packing Guide
5

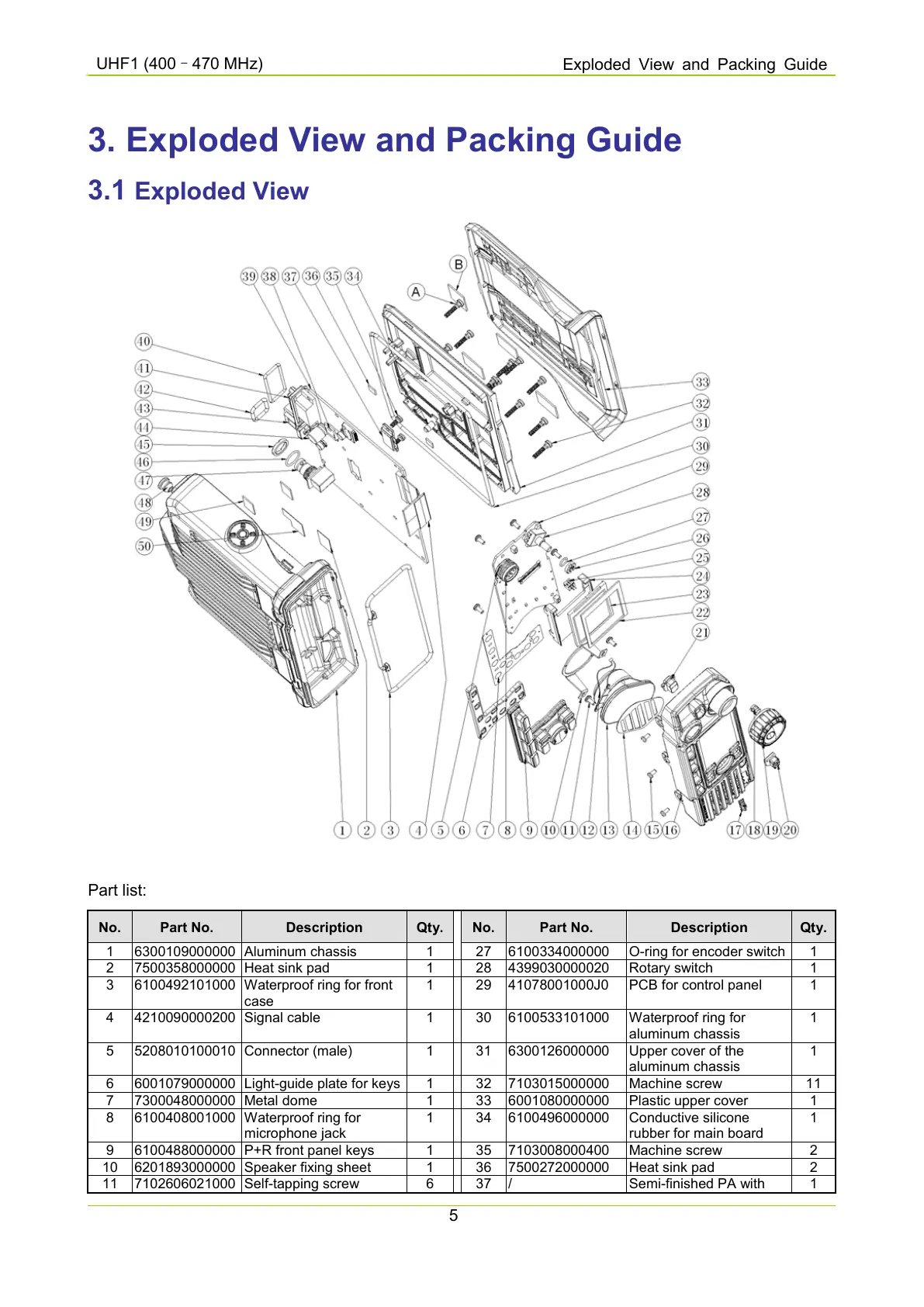

3. Exploded View and Packing Guide
3.1 Exploded View
Part list:
No. Part No. Description Qty. No. Part No. Description Qty.
1
6300109000000
Aluminum chassis
1
27
6100334000000
O-ring for encoder switch
1
2
7500358000000
Heat sink pad
1
28
4399030000020
Rotary switch
1
3
6100492101000
Waterproof ring for front
case
1
29
41078001000J0
PCB for control panel
1
4
4210090000200
Signal cable
1
30
6100533101000
Waterproof ring for
aluminum chassis
1
5
5208010100010
Connector (male)
1
31
6300126000000
Upper cover of the
aluminum chassis
1
6
6001079000000
Light-guide plate for keys
1
32
7103015000000
Machine screw
11
7
7300048000000
Metal dome
1
33
6001080000000
Plastic upper cover
1
8
6100408001000
Waterproof ring for
microphone jack
1
34
6100496000000
Conductive silicone
rubber for main board
1
9
6100488000000
P+R front panel keys
1
35
7103008000400
Machine screw
2
10
6201893000000
Speaker fixing sheet
1
36
7500272000000
Heat sink pad
2
11
7102606021000
Self-tapping screw
6
37
/
Semi-finished PA with
1
