Hytera MD78X Service Manual

Exploded View and Packing Guide
UHF1 (400
–
470 MHz)
6

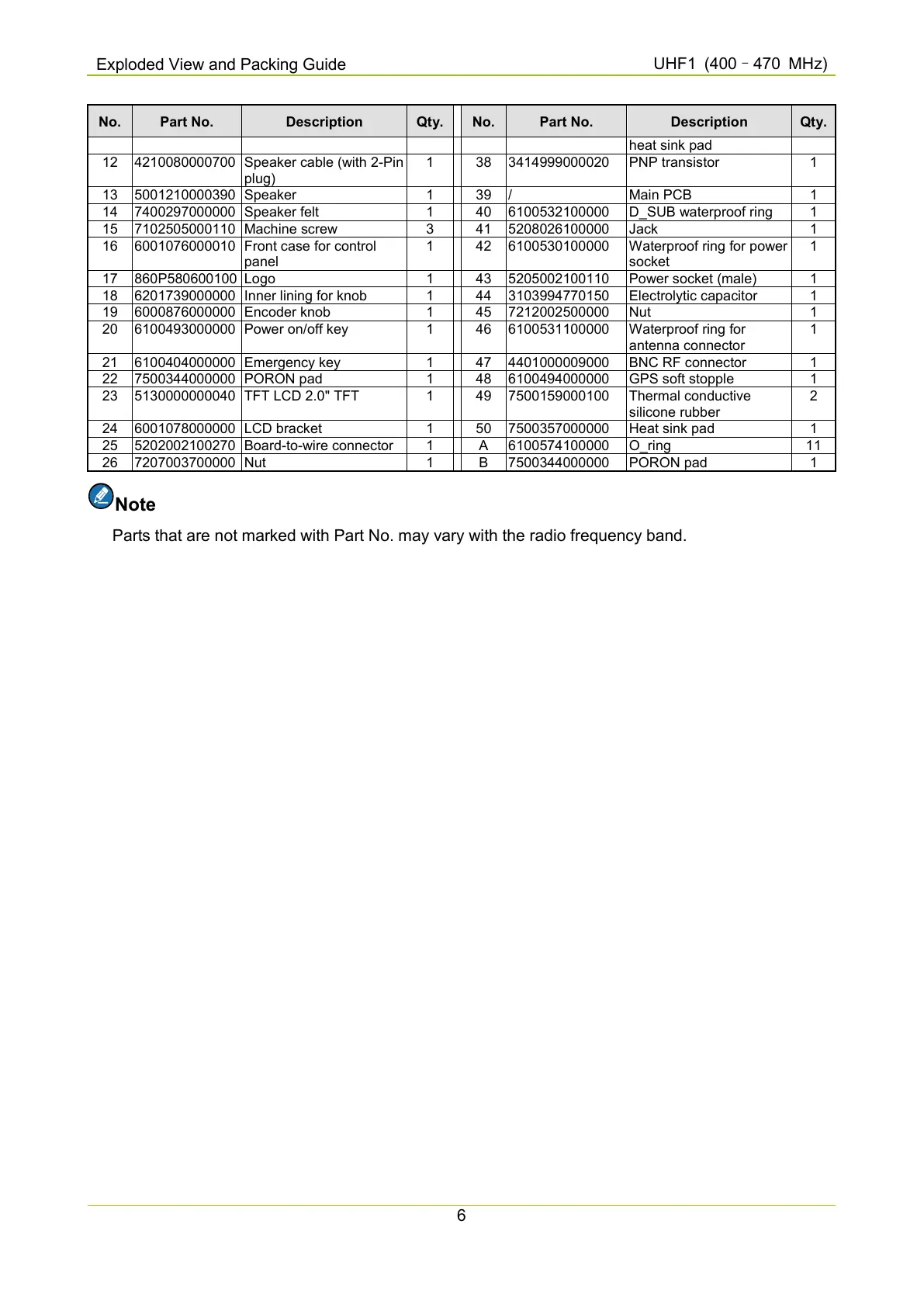

No. Part No. Description Qty. No. Part No. Description Qty.
heat sink pad
12
4210080000700
Speaker cable (with 2-Pin
plug)
1
38
3414999000020
PNP transistor
1
13
5001210000390
Speaker
1
39
/
Main PCB
1
14
7400297000000
Speaker felt
1
40
6100532100000
D_SUB waterproof ring
1
15
7102505000110
Machine screw
3
41
5208026100000
Jack
1
16
6001076000010
Front case for control
panel
1
42
6100530100000
Waterproof ring for power
socket
1
17
860P580600100
Logo
1
43
5205002100110
Power socket (male)
1
18
6201739000000
Inner lining for knob
1
44
3103994770150
Electrolytic capacitor
1
19
6000876000000
Encoder knob
1
45
7212002500000
Nut
1
20
6100493000000
Power on/off key
1
46
6100531100000
Waterproof ring for
antenna connector
1
21
6100404000000
Emergency key
1
47
4401000009000
BNC RF connector
1
22
7500344000000
PORON pad
1
48
6100494000000
GPS soft stopple
1
23
5130000000040
TFT LCD 2.0" TFT
1
49
7500159000100
Thermal conductive
silicone rubber
2
24
6001078000000
LCD bracket
1
50
7500357000000
Heat sink pad
1
25
5202002100270
Board-to-wire connector
1
A
6100574100000
O_ring
11
26
7207003700000
Nut
1
B
7500344000000
PORON pad
1
Note
Parts that are not marked with Part No. may vary with the radio frequency band.
