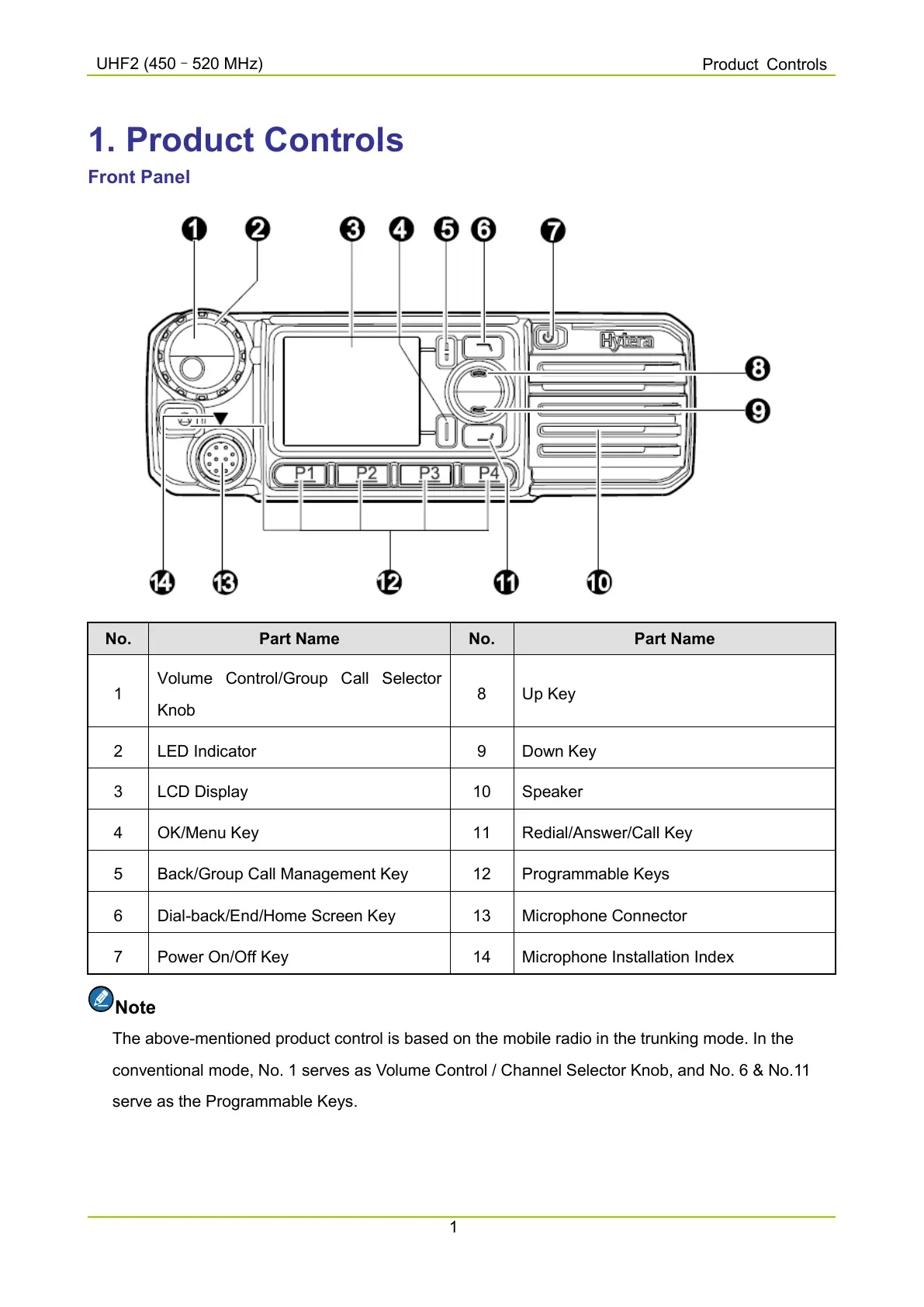

1. Product Controls
Front Panel
No. Part Name No. Part Name
1
Volume Control/Group Call Selector
Knob
8 Up Key
2 LED Indicator 9 Down Key
3 LCD Display 10 Speaker
4 OK/Menu Key 11 Redial/Answer/Call Key
5 Back/Group Call Management Key 12 Programmable Keys
6 Dial-back/End/Home Screen Key 13 Microphone Connector
7 Power On/Off Key 14 Microphone Installation Index
Note
The above-mentioned product control is based on the mobile radio in the trunking mode. In the
conventional mode, No. 1 serves as Volume Control / Channel Selector Knob, and No. 6 & No.11
serve as the Programmable Keys.
