UHF2 (450–520 MHz)
Exploded View and Packing Guide
5

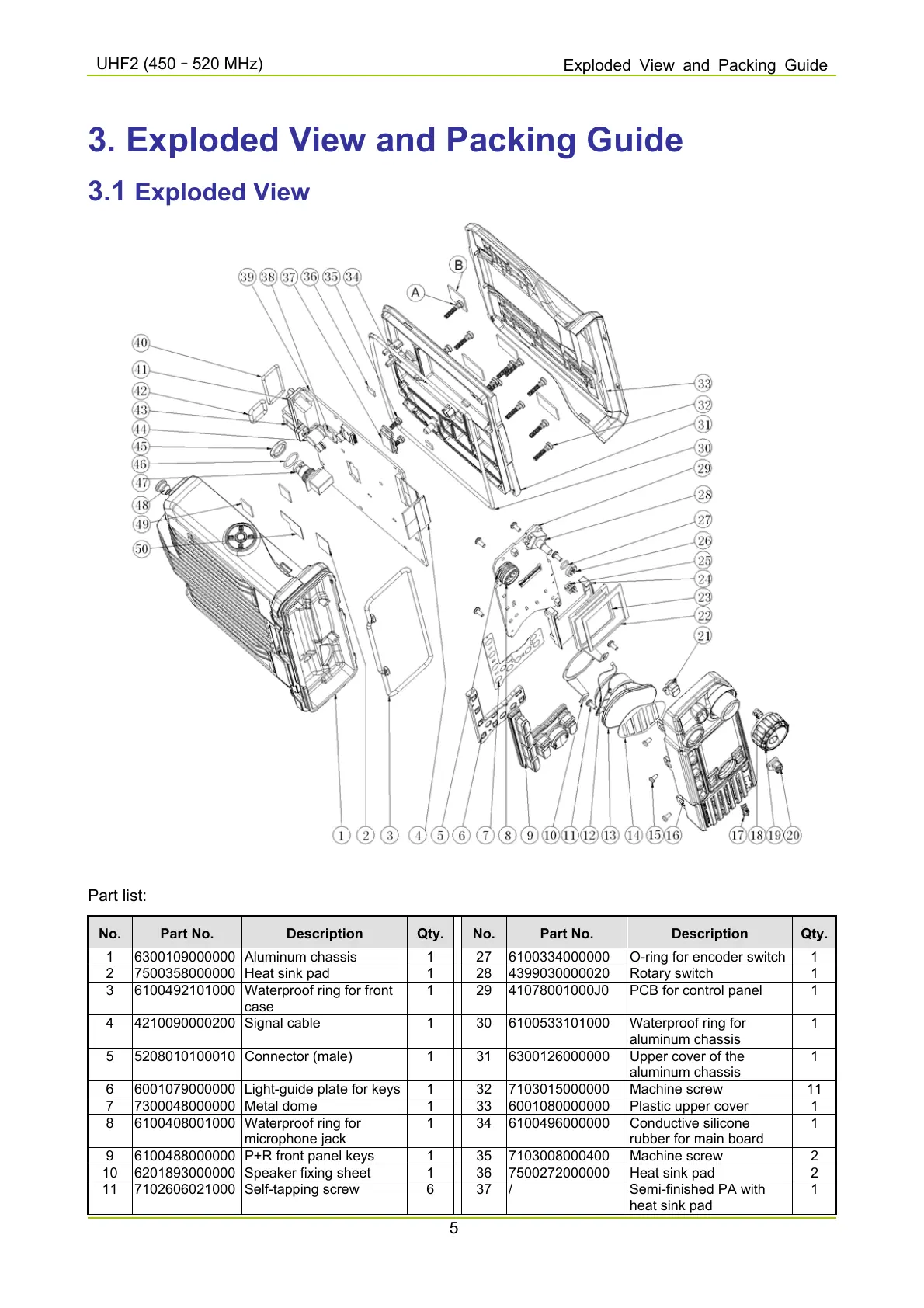

3. Exploded View and Packing Guide
3.1 Exploded View
Part list:
No. Part No. Description Qty. No. Part No. Description Qty.
1 6300109000000 Aluminum chassis 1 27 6100334000000 O-ring for encoder switch 1
2 7500358000000 Heat sink pad 1 28 4399030000020 Rotary switch 1
3 6100492101000 Waterproof ring for front
case
1 29 41078001000J0 PCB for control panel 1
4 4210090000200 Signal cable 1 30 6100533101000 Waterproof ring for
aluminum chassis
1
5 5208010100010 Connector (male) 1 31 6300126000000 Upper cover of the
aluminum chassis
1
6 6001079000000 Light-guide plate for keys 1 32 7103015000000 Machine screw 11
7 7300048000000 Metal dome 1 33 6001080000000 Plastic upper cover 1
8 6100408001000 Waterproof ring for
microphone jack
1
34 6100496000000 Conductive silicone
rubber for main board
1
9 6100488000000 P+R front panel keys 1 35 7103008000400 Machine screw 2
10 6201893000000 Speaker fixing sheet 1 36 7500272000000 Heat sink pad 2
11 7102606021000 Self-tapping screw 6 37 / Semi-finished PA with
heat sink pad
1
