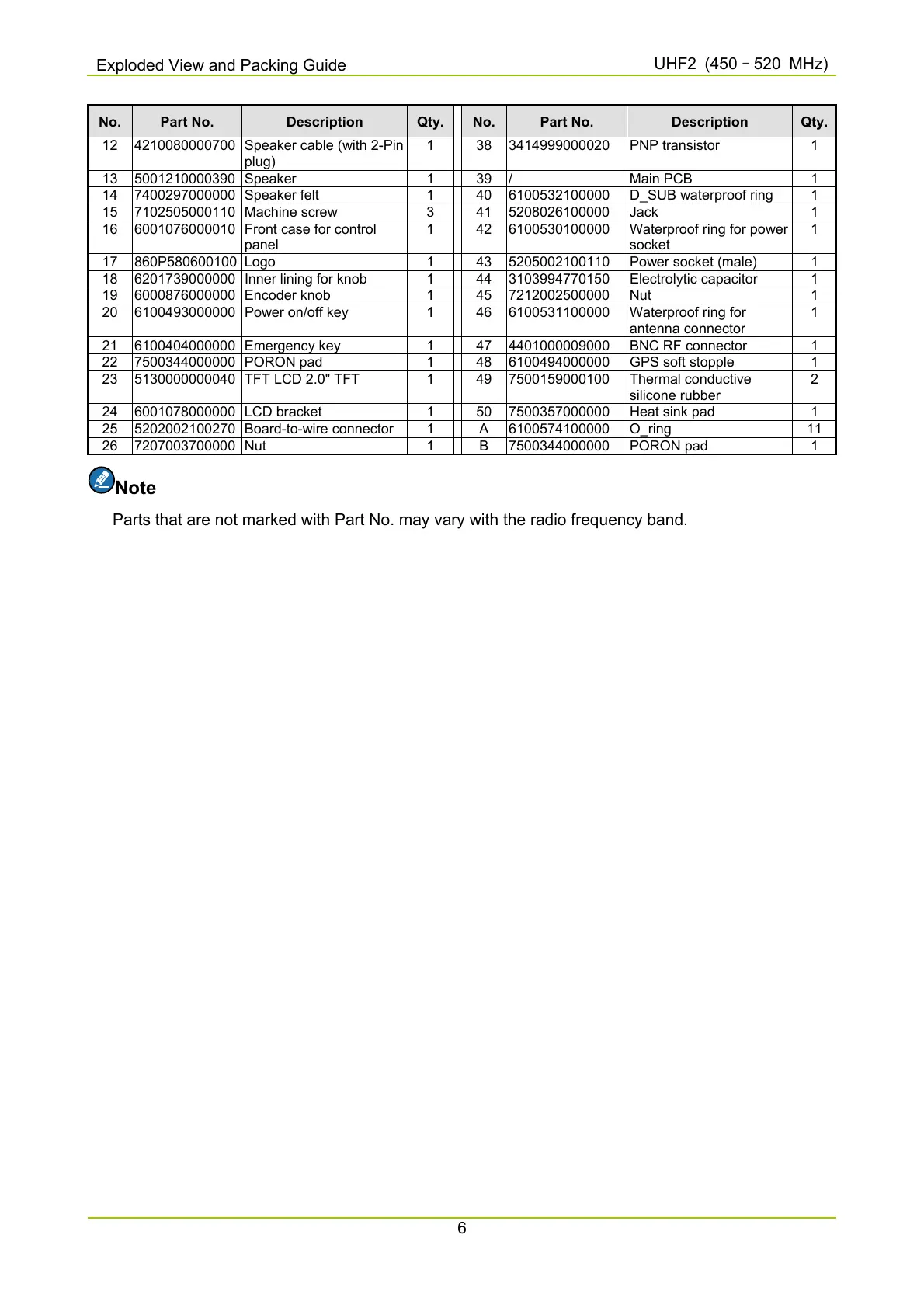

Exploded View and Packing Guide
UHF2 (450–520 MHz)
6
No. Part No. Description Qty. No. Part No. Description Qty.
12 4210080000700 Speaker cable (with 2-Pin
plug)
1 38 3414999000020 PNP transistor 1
13 5001210000390 Speaker 1 39 / Main PCB 1
14 7400297000000 Speaker felt 1 40 6100532100000 D_SUB waterproof ring 1
15 7102505000110 Machine screw 3 41 5208026100000 Jack 1
16 6001076000010 Front case for control
panel
1 42 6100530100000 Waterproof ring for power
socket
1
17 860P580600100 Logo 1 43 5205002100110 Power socket (male) 1
18 6201739000000 Inner lining for knob 1 44 3103994770150 Electrolytic capacitor 1
19 6000876000000 Encoder knob 1 45 7212002500000 Nut 1
20 6100493000000 Power on/off key 1 46 6100531100000 Waterproof ring for
antenna connector
1
21 6100404000000 Emergency key 1 47 4401000009000 BNC RF connector 1
22 7500344000000 PORON pad 1 48 6100494000000 GPS soft stopple 1
23 5130000000040 TFT LCD 2.0" TFT 1 49 7500159000100 Thermal conductive
silicone rubber
2
24 6001078000000 LCD bracket 1 50 7500357000000 Heat sink pad 1
25 5202002100270 Board-to-wire connector 1 A 6100574100000 O_ring 11
26 7207003700000 Nut 1 B 7500344000000 PORON pad 1
Note
Parts that are not marked with Part No. may vary with the radio frequency band.
