Hytera MD78X Service Manual

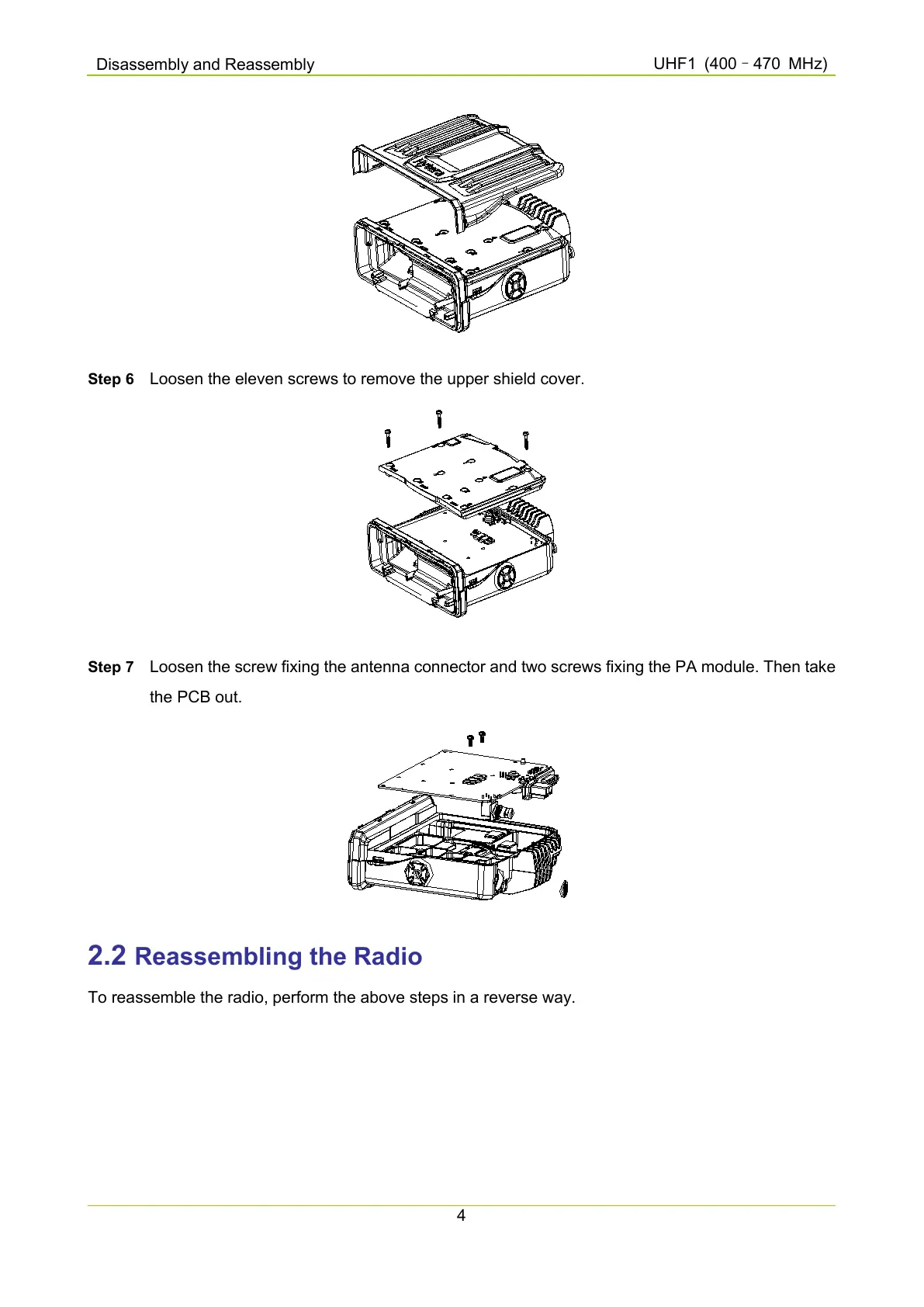

Disassembly and Reassembly
UHF1 (400
–
470 MHz)
4
Step 6 Loosen the eleven screws to remove the upper shield cover.
Step 7 Loosen the screw fixing the antenna connector and two screws fixing the PA module. Then take
the PCB out.
2.2 Reassembling the Radio
To reassemble the radio, perform the above steps in a reverse way.
