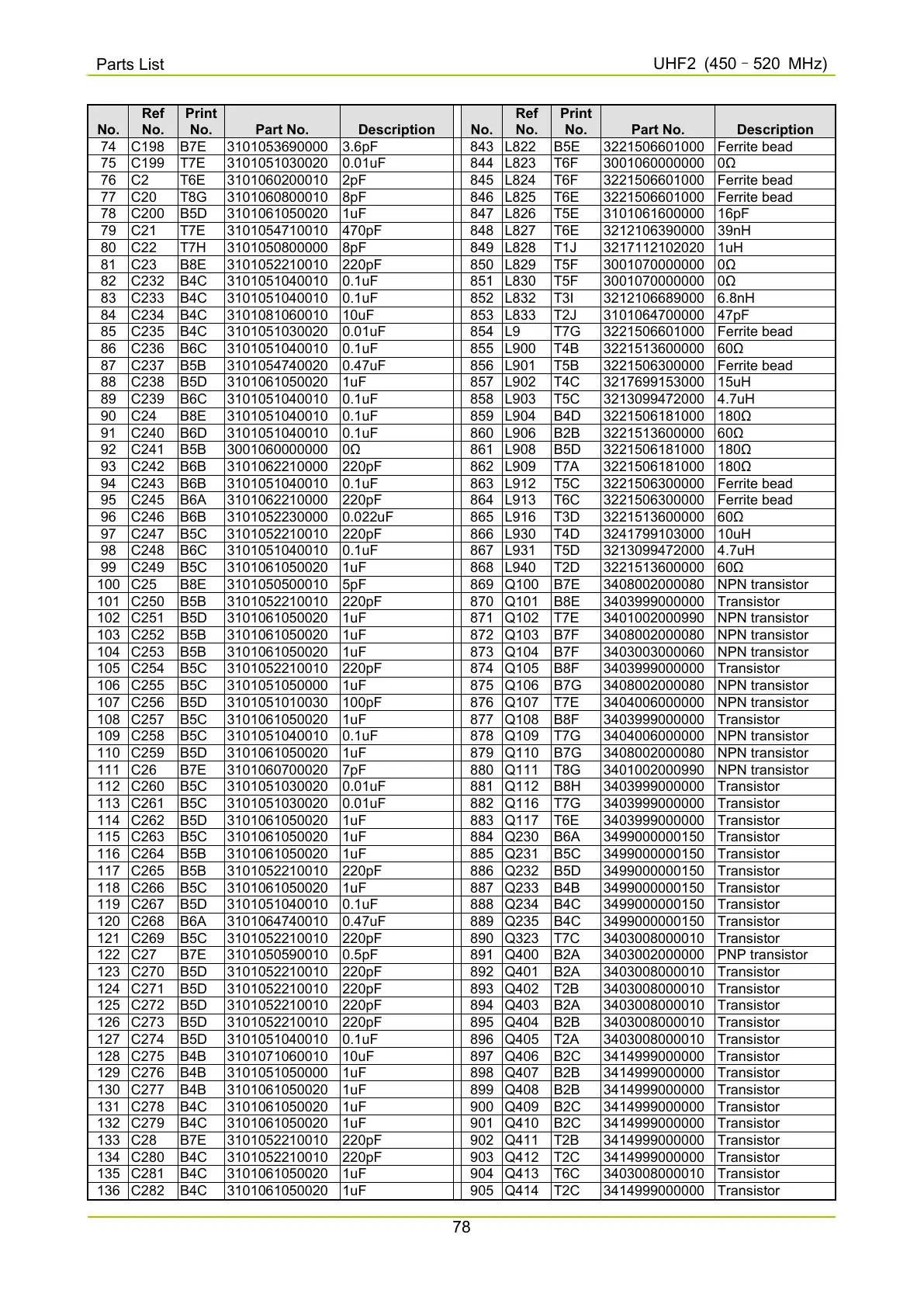

Hytera MD78X Service Manual

Parts List
UHF2 (450
–
520 MHz)
78
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
74
C198
B7E
3101053690000
3.6pF
843
L822
B5E
3221506601000
Ferrite bead
75
C199
T7E
3101051030020
0.01uF
844
L823
T6F
3001060000000
0Ω
76
C2
T6E
3101060200010
2pF
845
L824
T6F
3221506601000
Ferrite bead
77
C20
T8G
3101060800010
8pF
846
L825
T6E
3221506601000
Ferrite bead
78
C200
B5D
3101061050020
1uF
847
L826
T5E
3101061600000
16pF
79
C21
T7E
3101054710010
470pF
848
L827
T6E
3212106390000
39nH
80
C22
T7H
3101050800000
8pF
849
L828
T1J
3217112102020
1uH
81
C23
B8E
3101052210010
220pF
850
L829
T5F
3001070000000
0Ω
82
C232
B4C
3101051040010
0.1uF
851
L830
T5F
3001070000000
0Ω
83
C233
B4C
3101051040010
0.1uF
852
L832
T3I
3212106689000
6.8nH
84
C234
B4C
3101081060010
10uF
853
L833
T2J
3101064700000
47pF
85
C235
B4C
3101051030020
0.01uF
854
L9
T7G
3221506601000
Ferrite bead
86
C236
B6C
3101051040010
0.1uF
855
L900
T4B
3221513600000
60Ω
87
C237
B5B
3101054740020
0.47uF
856
L901
T5B
3221506300000
Ferrite bead
88
C238
B5D
3101061050020
1uF
857
L902
T4C
3217699153000
15uH
89
C239
B6C
3101051040010
0.1uF
858
L903
T5C
3213099472000
4.7uH
90
C24
B8E
3101051040010
0.1uF
859
L904
B4D
3221506181000
180Ω
91
C240
B6D
3101051040010
0.1uF
860
L906
B2B
3221513600000
60Ω
92
C241
B5B
3001060000000
0Ω
861
L908
B5D
3221506181000
180Ω
93
C242
B6B
3101062210000
220pF
862
L909
T7A
3221506181000
180Ω
94
C243
B6B
3101051040010
0.1uF
863
L912
T5C
3221506300000
Ferrite bead
95
C245
B6A
3101062210000
220pF
864
L913
T6C
3221506300000
Ferrite bead
96
C246
B6B
3101052230000
0.022uF
865
L916
T3D
3221513600000
60Ω
97
C247
B5C
3101052210010
220pF
866
L930
T4D
3241799103000
10uH
98
C248
B6C
3101051040010
0.1uF
867
L931
T5D
3213099472000
4.7uH
99
C249
B5C
3101061050020
1uF
868
L940
T2D
3221513600000
60Ω
100
C25
B8E
3101050500010
5pF
869
Q100
B7E
3408002000080
NPN transistor
101
C250
B5B
3101052210010
220pF
870
Q101
B8E
3403999000000
Transistor
102
C251
B5D
3101061050020
1uF
871
Q102
T7E
3401002000990
NPN transistor
103
C252
B5B
3101061050020
1uF
872
Q103
B7F
3408002000080
NPN transistor
104
C253
B5B
3101061050020
1uF
873
Q104
B7F
3403003000060
NPN transistor
105
C254
B5C
3101052210010
220pF
874
Q105
B8F
3403999000000
Transistor
106
C255
B5C
3101051050000
1uF
875
Q106
B7G
3408002000080
NPN transistor
107
C256
B5D
3101051010030
100pF
876
Q107
T7E
3404006000000
NPN transistor
108
C257
B5C
3101061050020
1uF
877
Q108
B8F
3403999000000
Transistor
109
C258
B5C
3101051040010
0.1uF
878
Q109
T7G
3404006000000
NPN transistor
110
C259
B5D
3101061050020
1uF
879
Q110
B7G
3408002000080
NPN transistor
111
C26
B7E
3101060700020
7pF
880
Q111
T8G
3401002000990
NPN transistor
112
C260
B5C
3101051030020
0.01uF
881
Q112
B8H
3403999000000
Transistor
113
C261
B5C
3101051030020
0.01uF
882
Q116
T7G
3403999000000
Transistor
114
C262
B5D
3101061050020
1uF
883
Q117
T6E
3403999000000
Transistor
115
C263
B5C
3101061050020
1uF
884
Q230
B6A
3499000000150
Transistor
116
C264
B5B
3101061050020
1uF
885
Q231
B5C
3499000000150
Transistor
117
C265
B5B
3101052210010
220pF
886
Q232
B5D
3499000000150
Transistor
118
C266
B5C
3101061050020
1uF
887
Q233
B4B
3499000000150
Transistor
119
C267
B5D
3101051040010
0.1uF
888
Q234
B4C
3499000000150
Transistor
120
C268
B6A
3101064740010
0.47uF
889
Q235
B4C
3499000000150
Transistor
121
C269
B5C
3101052210010
220pF
890
Q323
T7C
3403008000010
Transistor
122
C27
B7E
3101050590010
0.5pF
891
Q400
B2A
3403002000000
PNP transistor
123
C270
B5D
3101052210010
220pF
892
Q401
B2A
3403008000010
Transistor
124
C271
B5D
3101052210010
220pF
893
Q402
T2B
3403008000010
Transistor
125
C272
B5D
3101052210010
220pF
894
Q403
B2A
3403008000010
Transistor
126
C273
B5D
3101052210010
220pF
895
Q404
B2B
3403008000010
Transistor
127
C274
B5D
3101051040010
0.1uF
896
Q405
T2A
3403008000010
Transistor
128
C275
B4B
3101071060010
10uF
897
Q406
B2C
3414999000000
Transistor
129
C276
B4B
3101051050000
1uF
898
Q407
B2B
3414999000000
Transistor
130
C277
B4B
3101061050020
1uF
899
Q408
B2B
3414999000000
Transistor
131
C278
B4C
3101061050020
1uF
900
Q409
B2C
3414999000000
Transistor
132
C279
B4C
3101061050020
1uF
901
Q410
B2C
3414999000000
Transistor
133
C28
B7E
3101052210010
220pF
902
Q411
T2B
3414999000000
Transistor
134
C280
B4C
3101052210010
220pF
903
Q412
T2C
3414999000000
Transistor
135
C281
B4C
3101061050020
1uF
904
Q413
T6C
3403008000010
Transistor
136
C282
B4C
3101061050020
1uF
905
Q414
T2C
3414999000000
Transistor
