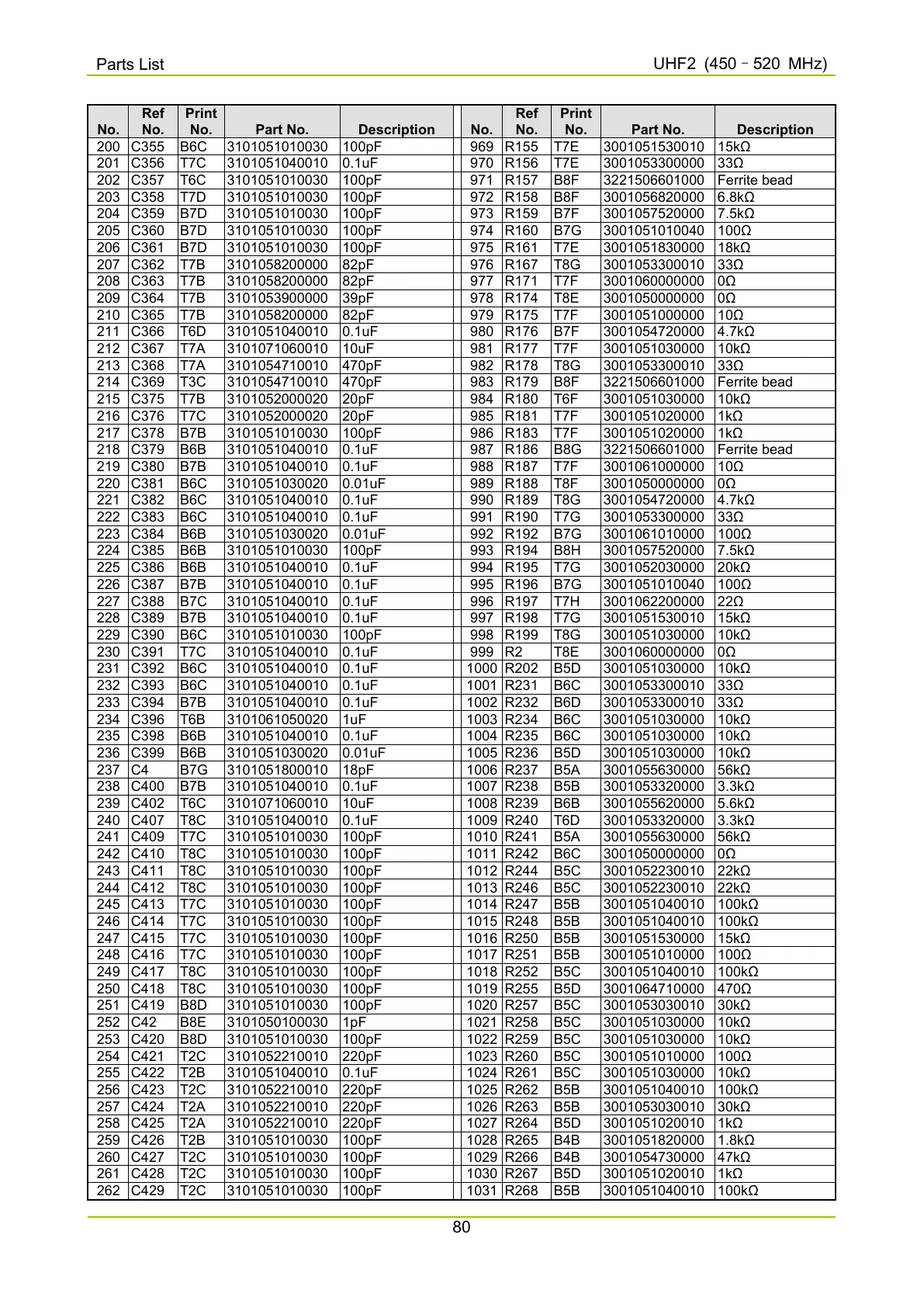

Hytera MD78X - Page 193

Parts List
UHF2 (450
–
520 MHz)
80
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
200
C355
B6C
3101051010030
100pF
969
R155
T7E
3001051530010
15kΩ
201
C356
T7C
3101051040010
0.1uF
970
R156
T7E
3001053300000
33Ω
202
C357
T6C
3101051010030
100pF
971
R157
B8F
3221506601000
Ferrite bead
203
C358
T7D
3101051010030
100pF
972
R158
B8F
3001056820000
6.8kΩ
204
C359
B7D
3101051010030
100pF
973
R159
B7F
3001057520000
7.5kΩ
205
C360
B7D
3101051010030
100pF
974
R160
B7G
3001051010040
100Ω
206
C361
B7D
3101051010030
100pF
975
R161
T7E
3001051830000
18kΩ
207
C362
T7B
3101058200000
82pF
976
R167
T8G
3001053300010
33Ω
208
C363
T7B
3101058200000
82pF
977
R171
T7F
3001060000000
0Ω
209
C364
T7B
3101053900000
39pF
978
R174
T8E
3001050000000
0Ω
210
C365
T7B
3101058200000
82pF
979
R175
T7F
3001051000000
10Ω
211
C366
T6D
3101051040010
0.1uF
980
R176
B7F
3001054720000
4.7kΩ
212
C367
T7A
3101071060010
10uF
981
R177
T7F
3001051030000
10kΩ
213
C368
T7A
3101054710010
470pF
982
R178
T8G
3001053300010
33Ω
214
C369
T3C
3101054710010
470pF
983
R179
B8F
3221506601000
Ferrite bead
215
C375
T7B
3101052000020
20pF
984
R180
T6F
3001051030000
10kΩ
216
C376
T7C
3101052000020
20pF
985
R181
T7F
3001051020000
1kΩ
217
C378
B7B
3101051010030
100pF
986
R183
T7F
3001051020000
1kΩ
218
C379
B6B
3101051040010
0.1uF
987
R186
B8G
3221506601000
Ferrite bead
219
C380
B7B
3101051040010
0.1uF
988
R187
T7F
3001061000000
10Ω
220
C381
B6C
3101051030020
0.01uF
989
R188
T8F
3001050000000
0Ω
221
C382
B6C
3101051040010
0.1uF
990
R189
T8G
3001054720000
4.7kΩ
222
C383
B6C
3101051040010
0.1uF
991
R190
T7G
3001053300000
33Ω
223
C384
B6B
3101051030020
0.01uF
992
R192
B7G
3001061010000
100Ω
224
C385
B6B
3101051010030
100pF
993
R194
B8H
3001057520000
7.5kΩ
225
C386
B6B
3101051040010
0.1uF
994
R195
T7G
3001052030000
20kΩ
226
C387
B7B
3101051040010
0.1uF
995
R196
B7G
3001051010040
100Ω
227
C388
B7C
3101051040010
0.1uF
996
R197
T7H
3001062200000
22Ω
228
C389
B7B
3101051040010
0.1uF
997
R198
T7G
3001051530010
15kΩ
229
C390
B6C
3101051010030
100pF
998
R199
T8G
3001051030000
10kΩ
230
C391
T7C
3101051040010
0.1uF
999
R2
T8E
3001060000000
0Ω
231
C392
B6C
3101051040010
0.1uF
1000
R202
B5D
3001051030000
10kΩ
232
C393
B6C
3101051040010
0.1uF
1001
R231
B6C
3001053300010
33Ω
233
C394
B7B
3101051040010
0.1uF
1002
R232
B6D
3001053300010
33Ω
234
C396
T6B
3101061050020
1uF
1003
R234
B6C
3001051030000
10kΩ
235
C398
B6B
3101051040010
0.1uF
1004
R235
B6C
3001051030000
10kΩ
236
C399
B6B
3101051030020
0.01uF
1005
R236
B5D
3001051030000
10kΩ
237
C4
B7G
3101051800010
18pF
1006
R237
B5A
3001055630000
56kΩ
238
C400
B7B
3101051040010
0.1uF
1007
R238
B5B
3001053320000
3.3kΩ
239
C402
T6C
3101071060010
10uF
1008
R239
B6B
3001055620000
5.6kΩ
240
C407
T8C
3101051040010
0.1uF
1009
R240
T6D
3001053320000
3.3kΩ
241
C409
T7C
3101051010030
100pF
1010
R241
B5A
3001055630000
56kΩ
242
C410
T8C
3101051010030
100pF
1011
R242
B6C
3001050000000
0Ω
243
C411
T8C
3101051010030
100pF
1012
R244
B5C
3001052230010
22kΩ
244
C412
T8C
3101051010030
100pF
1013
R246
B5C
3001052230010
22kΩ
245
C413
T7C
3101051010030
100pF
1014
R247
B5B
3001051040010
100kΩ
246
C414
T7C
3101051010030
100pF
1015
R248
B5B
3001051040010
100kΩ
247
C415
T7C
3101051010030
100pF
1016
R250
B5B
3001051530000
15kΩ
248
C416
T7C
3101051010030
100pF
1017
R251
B5B
3001051010000
100Ω
249
C417
T8C
3101051010030
100pF
1018
R252
B5C
3001051040010
100kΩ
250
C418
T8C
3101051010030
100pF
1019
R255
B5D
3001064710000
470Ω
251
C419
B8D
3101051010030
100pF
1020
R257
B5C
3001053030010
30kΩ
252
C42
B8E
3101050100030
1pF
1021
R258
B5C
3001051030000
10kΩ
253
C420
B8D
3101051010030
100pF
1022
R259
B5C
3001051030000
10kΩ
254
C421
T2C
3101052210010
220pF
1023
R260
B5C
3001051010000
100Ω
255
C422
T2B
3101051040010
0.1uF
1024
R261
B5C
3001051030000
10kΩ
256
C423
T2C
3101052210010
220pF
1025
R262
B5B
3001051040010
100kΩ
257
C424
T2A
3101052210010
220pF
1026
R263
B5B
3001053030010
30kΩ
258
C425
T2A
3101052210010
220pF
1027
R264
B5D
3001051020010
1kΩ
259
C426
T2B
3101051010030
100pF
1028
R265
B4B
3001051820000
1.8kΩ
260
C427
T2C
3101051010030
100pF
1029
R266
B4B
3001054730000
47kΩ
261
C428
T2C
3101051010030
100pF
1030
R267
B5D
3001051020010
1kΩ
262
C429
T2C
3101051010030
100pF
1031
R268
B5B
3001051040010
100kΩ
