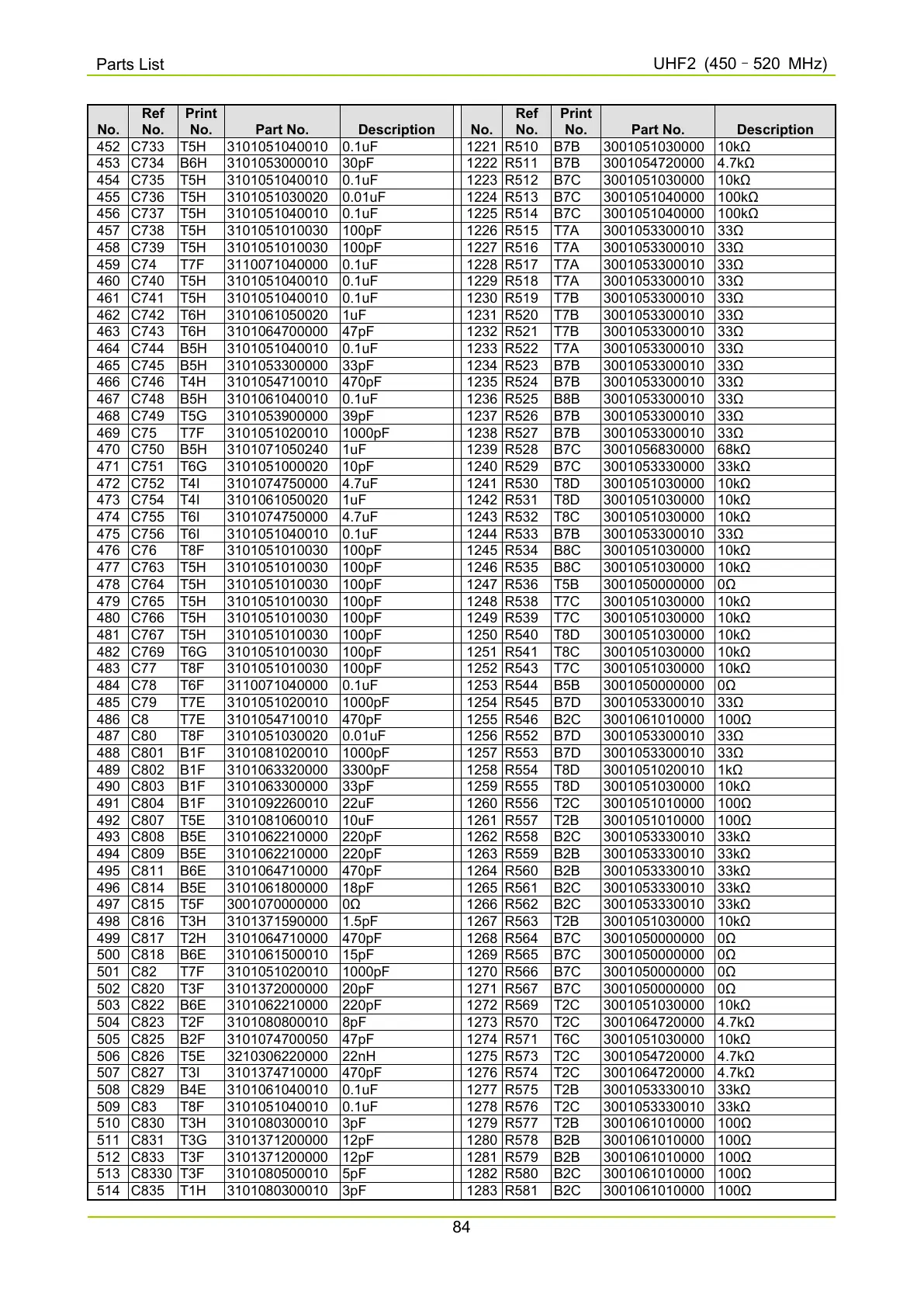

Hytera MD78X Service Manual

Parts List
UHF2 (450
–
520 MHz)
84
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
452
C733
T5H
3101051040010
0.1uF
1221
R510
B7B
3001051030000
10kΩ
453
C734
B6H
3101053000010
30pF
1222
R511
B7B
3001054720000
4.7kΩ
454
C735
T5H
3101051040010
0.1uF
1223
R512
B7C
3001051030000
10kΩ
455
C736
T5H
3101051030020
0.01uF
1224
R513
B7C
3001051040000
100kΩ
456
C737
T5H
3101051040010
0.1uF
1225
R514
B7C
3001051040000
100kΩ
457
C738
T5H
3101051010030
100pF
1226
R515
T7A
3001053300010
33Ω
458
C739
T5H
3101051010030
100pF
1227
R516
T7A
3001053300010
33Ω
459
C74
T7F
3110071040000
0.1uF
1228
R517
T7A
3001053300010
33Ω
460
C740
T5H
3101051040010
0.1uF
1229
R518
T7A
3001053300010
33Ω
461
C741
T5H
3101051040010
0.1uF
1230
R519
T7B
3001053300010
33Ω
462
C742
T6H
3101061050020
1uF
1231
R520
T7B
3001053300010
33Ω
463
C743
T6H
3101064700000
47pF
1232
R521
T7B
3001053300010
33Ω
464
C744
B5H
3101051040010
0.1uF
1233
R522
T7A
3001053300010
33Ω
465
C745
B5H
3101053300000
33pF
1234
R523
B7B
3001053300010
33Ω
466
C746
T4H
3101054710010
470pF
1235
R524
B7B
3001053300010
33Ω
467
C748
B5H
3101061040010
0.1uF
1236
R525
B8B
3001053300010
33Ω
468
C749
T5G
3101053900000
39pF
1237
R526
B7B
3001053300010
33Ω
469
C75
T7F
3101051020010
1000pF
1238
R527
B7B
3001053300010
33Ω
470
C750
B5H
3101071050240
1uF
1239
R528
B7C
3001056830000
68kΩ
471
C751
T6G
3101051000020
10pF
1240
R529
B7C
3001053330000
33kΩ
472
C752
T4I
3101074750000
4.7uF
1241
R530
T8D
3001051030000
10kΩ
473
C754
T4I
3101061050020
1uF
1242
R531
T8D
3001051030000
10kΩ
474
C755
T6I
3101074750000
4.7uF
1243
R532
T8C
3001051030000
10kΩ
475
C756
T6I
3101051040010
0.1uF
1244
R533
B7B
3001053300010
33Ω
476
C76
T8F
3101051010030
100pF
1245
R534
B8C
3001051030000
10kΩ
477
C763
T5H
3101051010030
100pF
1246
R535
B8C
3001051030000
10kΩ
478
C764
T5H
3101051010030
100pF
1247
R536
T5B
3001050000000
0Ω
479
C765
T5H
3101051010030
100pF
1248
R538
T7C
3001051030000
10kΩ
480
C766
T5H
3101051010030
100pF
1249
R539
T7C
3001051030000
10kΩ
481
C767
T5H
3101051010030
100pF
1250
R540
T8D
3001051030000
10kΩ
482
C769
T6G
3101051010030
100pF
1251
R541
T8C
3001051030000
10kΩ
483
C77
T8F
3101051010030
100pF
1252
R543
T7C
3001051030000
10kΩ
484
C78
T6F
3110071040000
0.1uF
1253
R544
B5B
3001050000000
0Ω
485
C79
T7E
3101051020010
1000pF
1254
R545
B7D
3001053300010
33Ω
486
C8
T7E
3101054710010
470pF
1255
R546
B2C
3001061010000
100Ω
487
C80
T8F
3101051030020
0.01uF
1256
R552
B7D
3001053300010
33Ω
488
C801
B1F
3101081020010
1000pF
1257
R553
B7D
3001053300010
33Ω
489
C802
B1F
3101063320000
3300pF
1258
R554
T8D
3001051020010
1kΩ
490
C803
B1F
3101063300000
33pF
1259
R555
T8D
3001051030000
10kΩ
491
C804
B1F
3101092260010
22uF
1260
R556
T2C
3001051010000
100Ω
492
C807
T5E
3101081060010
10uF
1261
R557
T2B
3001051010000
100Ω
493
C808
B5E
3101062210000
220pF
1262
R558
B2C
3001053330010
33kΩ
494
C809
B5E
3101062210000
220pF
1263
R559
B2B
3001053330010
33kΩ
495
C811
B6E
3101064710000
470pF
1264
R560
B2B
3001053330010
33kΩ
496
C814
B5E
3101061800000
18pF
1265
R561
B2C
3001053330010
33kΩ
497
C815
T5F
3001070000000
0Ω
1266
R562
B2C
3001053330010
33kΩ
498
C816
T3H
3101371590000
1.5pF
1267
R563
T2B
3001051030000
10kΩ
499
C817
T2H
3101064710000
470pF
1268
R564
B7C
3001050000000
0Ω
500
C818
B6E
3101061500010
15pF
1269
R565
B7C
3001050000000
0Ω
501
C82
T7F
3101051020010
1000pF
1270
R566
B7C
3001050000000
0Ω
502
C820
T3F
3101372000000
20pF
1271
R567
B7C
3001050000000
0Ω
503
C822
B6E
3101062210000
220pF
1272
R569
T2C
3001051030000
10kΩ
504
C823
T2F
3101080800010
8pF
1273
R570
T2C
3001064720000
4.7kΩ
505
C825
B2F
3101074700050
47pF
1274
R571
T6C
3001051030000
10kΩ
506
C826
T5E
3210306220000
22nH
1275
R573
T2C
3001054720000
4.7kΩ
507
C827
T3I
3101374710000
470pF
1276
R574
T2C
3001064720000
4.7kΩ
508
C829
B4E
3101061040010
0.1uF
1277
R575
T2B
3001053330010
33kΩ
509
C83
T8F
3101051040010
0.1uF
1278
R576
T2C
3001053330010
33kΩ
510
C830
T3H
3101080300010
3pF
1279
R577
T2B
3001061010000
100Ω
511
C831
T3G
3101371200000
12pF
1280
R578
B2B
3001061010000
100Ω
512
C833
T3F
3101371200000
12pF
1281
R579
B2B
3001061010000
100Ω
513
C8330
T3F
3101080500010
5pF
1282
R580
B2C
3001061010000
100Ω
514
C835
T1H
3101080300010
3pF
1283
R581
B2C
3001061010000
100Ω
