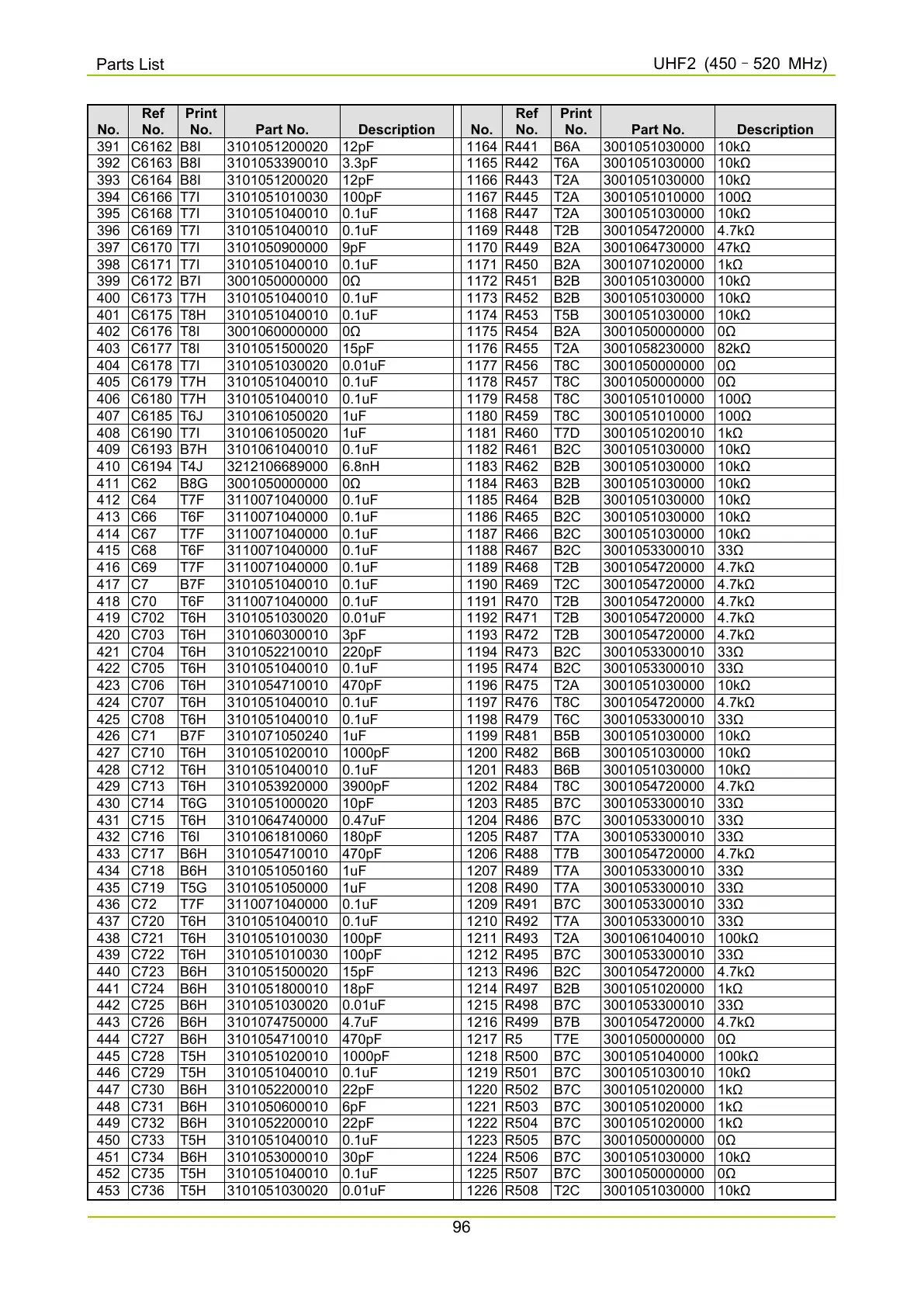

Hytera MD78X Service Manual

Parts List
UHF2 (450
–
520 MHz)
96
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
391
C6162
B8I
3101051200020
12pF
1164
R441
B6A
3001051030000
10kΩ
392
C6163
B8I
3101053390010
3.3pF
1165
R442
T6A
3001051030000
10kΩ
393
C6164
B8I
3101051200020
12pF
1166
R443
T2A
3001051030000
10kΩ
394
C6166
T7I
3101051010030
100pF
1167
R445
T2A
3001051010000
100Ω
395
C6168
T7I
3101051040010
0.1uF
1168
R447
T2A
3001051030000
10kΩ
396
C6169
T7I
3101051040010
0.1uF
1169
R448
T2B
3001054720000
4.7kΩ
397
C6170
T7I
3101050900000
9pF
1170
R449
B2A
3001064730000
47kΩ
398
C6171
T7I
3101051040010
0.1uF
1171
R450
B2A
3001071020000
1kΩ
399
C6172
B7I
3001050000000
0Ω
1172
R451
B2B
3001051030000
10kΩ
400
C6173
T7H
3101051040010
0.1uF
1173
R452
B2B
3001051030000
10kΩ
401
C6175
T8H
3101051040010
0.1uF
1174
R453
T5B
3001051030000
10kΩ
402
C6176
T8I
3001060000000
0Ω
1175
R454
B2A
3001050000000
0Ω
403
C6177
T8I
3101051500020
15pF
1176
R455
T2A
3001058230000
82kΩ
404
C6178
T7I
3101051030020
0.01uF
1177
R456
T8C
3001050000000
0Ω
405
C6179
T7H
3101051040010
0.1uF
1178
R457
T8C
3001050000000
0Ω
406
C6180
T7H
3101051040010
0.1uF
1179
R458
T8C
3001051010000
100Ω
407
C6185
T6J
3101061050020
1uF
1180
R459
T8C
3001051010000
100Ω
408
C6190
T7I
3101061050020
1uF
1181
R460
T7D
3001051020010
1kΩ
409
C6193
B7H
3101061040010
0.1uF
1182
R461
B2C
3001051030000
10kΩ
410
C6194
T4J
3212106689000
6.8nH
1183
R462
B2B
3001051030000
10kΩ
411
C62
B8G
3001050000000
0Ω
1184
R463
B2B
3001051030000
10kΩ
412
C64
T7F
3110071040000
0.1uF
1185
R464
B2B
3001051030000
10kΩ
413
C66
T6F
3110071040000
0.1uF
1186
R465
B2C
3001051030000
10kΩ
414
C67
T7F
3110071040000
0.1uF
1187
R466
B2C
3001051030000
10kΩ
415
C68
T6F
3110071040000
0.1uF
1188
R467
B2C
3001053300010
33Ω
416
C69
T7F
3110071040000
0.1uF
1189
R468
T2B
3001054720000
4.7kΩ
417
C7
B7F
3101051040010
0.1uF
1190
R469
T2C
3001054720000
4.7kΩ
418
C70
T6F
3110071040000
0.1uF
1191
R470
T2B
3001054720000
4.7kΩ
419
C702
T6H
3101051030020
0.01uF
1192
R471
T2B
3001054720000
4.7kΩ
420
C703
T6H
3101060300010
3pF
1193
R472
T2B
3001054720000
4.7kΩ
421
C704
T6H
3101052210010
220pF
1194
R473
B2C
3001053300010
33Ω
422
C705
T6H
3101051040010
0.1uF
1195
R474
B2C
3001053300010
33Ω
423
C706
T6H
3101054710010
470pF
1196
R475
T2A
3001051030000
10kΩ
424
C707
T6H
3101051040010
0.1uF
1197
R476
T8C
3001054720000
4.7kΩ
425
C708
T6H
3101051040010
0.1uF
1198
R479
T6C
3001053300010
33Ω
426
C71
B7F
3101071050240
1uF
1199
R481
B5B
3001051030000
10kΩ
427
C710
T6H
3101051020010
1000pF
1200
R482
B6B
3001051030000
10kΩ
428
C712
T6H
3101051040010
0.1uF
1201
R483
B6B
3001051030000
10kΩ
429
C713
T6H
3101053920000
3900pF
1202
R484
T8C
3001054720000
4.7kΩ
430
C714
T6G
3101051000020
10pF
1203
R485
B7C
3001053300010
33Ω
431
C715
T6H
3101064740000
0.47uF
1204
R486
B7C
3001053300010
33Ω
432
C716
T6I
3101061810060
180pF
1205
R487
T7A
3001053300010
33Ω
433
C717
B6H
3101054710010
470pF
1206
R488
T7B
3001054720000
4.7kΩ
434
C718
B6H
3101051050160
1uF
1207
R489
T7A
3001053300010
33Ω
435
C719
T5G
3101051050000
1uF
1208
R490
T7A
3001053300010
33Ω
436
C72
T7F
3110071040000
0.1uF
1209
R491
B7C
3001053300010
33Ω
437
C720
T6H
3101051040010
0.1uF
1210
R492
T7A
3001053300010
33Ω
438
C721
T6H
3101051010030
100pF
1211
R493
T2A
3001061040010
100kΩ
439
C722
T6H
3101051010030
100pF
1212
R495
B7C
3001053300010
33Ω
440
C723
B6H
3101051500020
15pF
1213
R496
B2C
3001054720000
4.7kΩ
441
C724
B6H
3101051800010
18pF
1214
R497
B2B
3001051020000
1kΩ
442
C725
B6H
3101051030020
0.01uF
1215
R498
B7C
3001053300010
33Ω
443
C726
B6H
3101074750000
4.7uF
1216
R499
B7B
3001054720000
4.7kΩ
444
C727
B6H
3101054710010
470pF
1217
R5
T7E
3001050000000
0Ω
445
C728
T5H
3101051020010
1000pF
1218
R500
B7C
3001051040000
100kΩ
446
C729
T5H
3101051040010
0.1uF
1219
R501
B7C
3001051030010
10kΩ
447
C730
B6H
3101052200010
22pF
1220
R502
B7C
3001051020000
1kΩ
448
C731
B6H
3101050600010
6pF
1221
R503
B7C
3001051020000
1kΩ
449
C732
B6H
3101052200010
22pF
1222
R504
B7C
3001051020000
1kΩ
450
C733
T5H
3101051040010
0.1uF
1223
R505
B7C
3001050000000
0Ω
451
C734
B6H
3101053000010
30pF
1224
R506
B7C
3001051030000
10kΩ
452
C735
T5H
3101051040010
0.1uF
1225
R507
B7C
3001050000000
0Ω
453
C736
T5H
3101051030020
0.01uF
1226
R508
T2C
3001051030000
10kΩ
