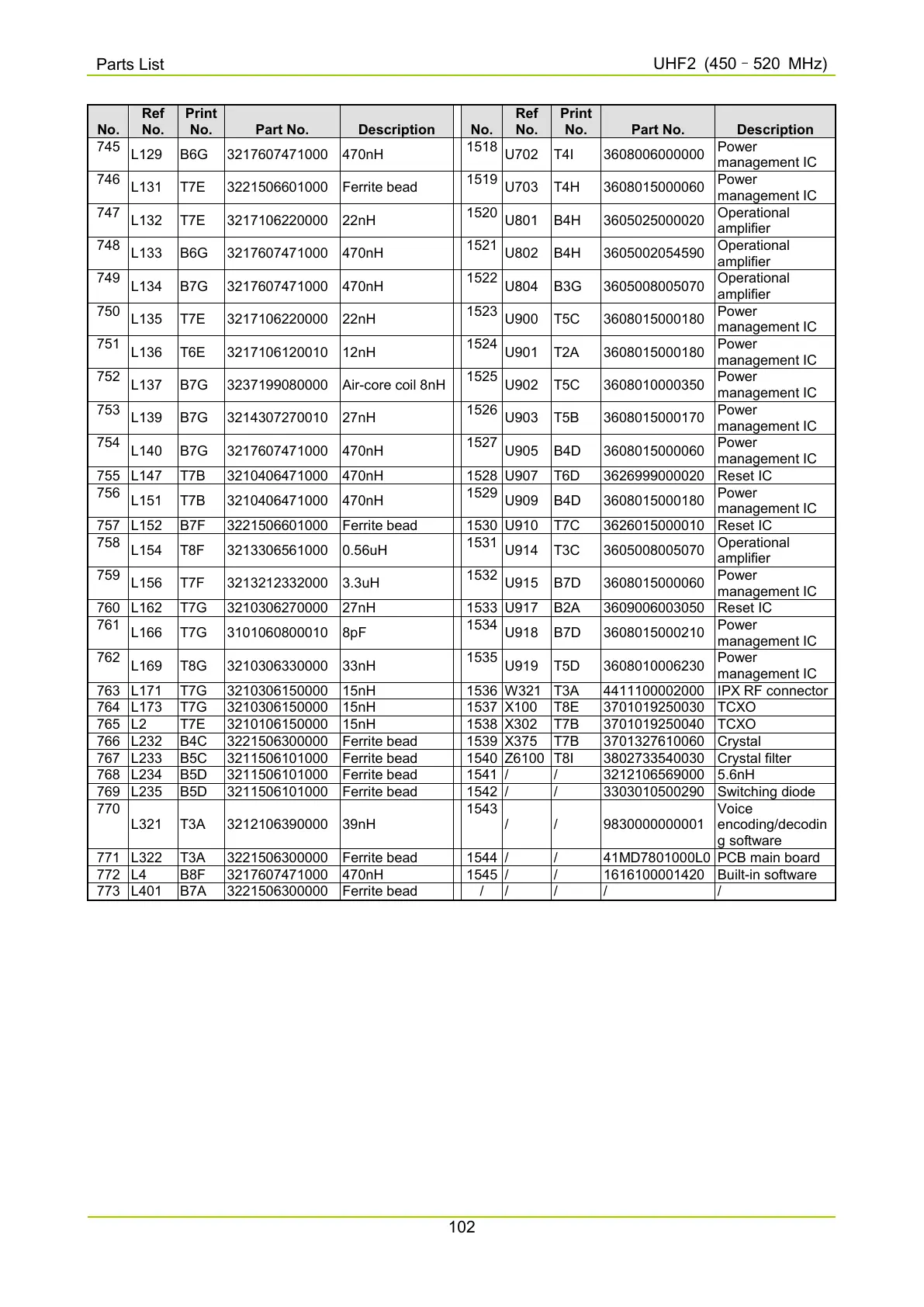

Hytera MD78X Service Manual

Parts List
UHF2 (450
–
520 MHz)
102
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
745
L129 B6G 3217607471000 470nH
1518
U702 T4I 3608006000000
Power
management IC
746
L131 T7E 3221506601000 Ferrite bead
1519
U703 T4H 3608015000060
Power
management IC
747
L132 T7E 3217106220000 22nH
1520
U801 B4H 3605025000020
Operational
amplifier
748
L133 B6G 3217607471000 470nH
1521
U802 B4H 3605002054590
Operational
amplifier
749
L134 B7G 3217607471000 470nH
1522
U804 B3G 3605008005070
Operational
amplifier
750
L135 T7E 3217106220000 22nH
1523
U900 T5C 3608015000180
Power
management IC
751
L136 T6E 3217106120010 12nH
1524
U901 T2A 3608015000180
Power
management IC
752
L137 B7G 3237199080000 Air-core coil 8nH
1525
U902 T5C 3608010000350
Power
management IC
753
L139 B7G 3214307270010 27nH
1526
U903 T5B 3608015000170
Power
management IC
754
L140 B7G 3217607471000 470nH
1527
U905 B4D 3608015000060
Power
management IC
755
L147
T7B
3210406471000
470nH
1528
U907
T6D
3626999000020
Reset IC
756
L151 T7B 3210406471000 470nH
1529
U909 B4D 3608015000180
Power
management IC
757
L152
B7F
3221506601000
Ferrite bead
1530
U910
T7C
3626015000010
Reset IC
758
L154 T8F 3213306561000 0.56uH
1531
U914 T3C 3605008005070
Operational
amplifier
759
L156 T7F 3213212332000 3.3uH
1532
U915 B7D 3608015000060
Power
management IC
760
L162
T7G
3210306270000
27nH
1533
U917
B2A
3609006003050
Reset IC
761
L166 T7G 3101060800010 8pF
1534
U918 B7D 3608015000210
Power
management IC
762
L169 T8G 3210306330000 33nH
1535
U919 T5D 3608010006230
Power
management IC
763
L171
T7G
3210306150000
15nH
1536
W321
T3A
4411100002000
IPX RF connector
764
L173
T7G
3210306150000
15nH
1537
X100
T8E
3701019250030
TCXO
765
L2
T7E
3210106150000
15nH
1538
X302
T7B
3701019250040
TCXO
766
L232
B4C
3221506300000
Ferrite bead
1539
X375
T7B
3701327610060
Crystal
767
L233
B5C
3211506101000
Ferrite bead
1540
Z6100
T8I
3802733540030
Crystal filter
768
L234
B5D
3211506101000
Ferrite bead
1541
/
/
3212106569000
5.6nH
769
L235
B5D
3211506101000
Ferrite bead
1542
/
/
3303010500290
Switching diode
770
L321 T3A 3212106390000 39nH
1543
/ / 9830000000001
Voice
encoding/decodin
g software
771
L322
T3A
3221506300000
Ferrite bead
1544
/
/
41MD7801000L0
PCB main board
772
L4
B8F
3217607471000
470nH
1545
/
/
1616100001420
Built-in software
773
L401
B7A
3221506300000
Ferrite bead
/
/
/
/
/
