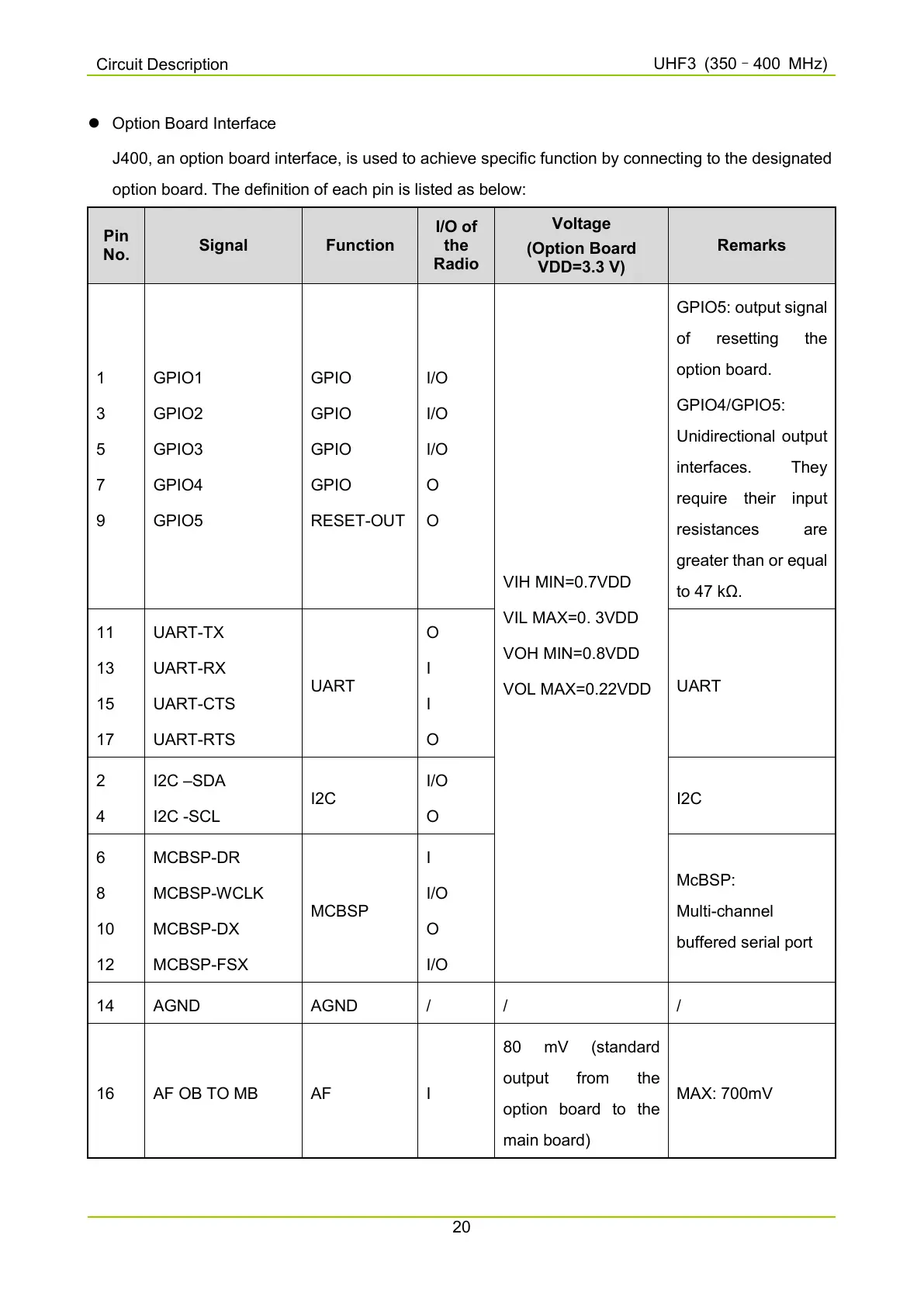

Circuit Description
UHF3 (350
400 MHz)
20
Option Board Interface
J400, an option board interface, is used to achieve specific function by connecting to the designated
option board. The definition of each pin is listed as below:
Pin
No.
Signal Function
I/O of
the
Radio
Voltage
(Option Board
VDD=3.3 V)
Remarks
1
3
5
7
9
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO
GPIO
GPIO
GPIO
RESET-OUT
I/O
I/O
I/O
O
O
VIH MIN=0.7VDD
VIL MAX=0. 3VDD
VOH MIN=0.8VDD
VOL MAX=0.22VDD
GPIO5: output signal
of resetting the
option board.
GPIO4/GPIO5:
Unidirectional output
interfaces. They
require their input
resistances are
greater than or equal
to 47 kΩ.
11
13
15
17
UART-TX
UART-RX
UART-CTS
UART-RTS
UART
O
I
I
O
UART
2
4
I2C SDA
I2C -SCL
I2C
I/O
O
I2C
6
8
10
12
MCBSP-DR
MCBSP-WCLK
MCBSP-DX
MCBSP-FSX
MCBSP
I
I/O
O
I/O
McBSP:
Multi-channel
buffered serial port
14 AGND AGND / / /
16 AF OB TO MB AF I
80 mV (standard
output from the
option board to the
main board)
MAX: 700mV
