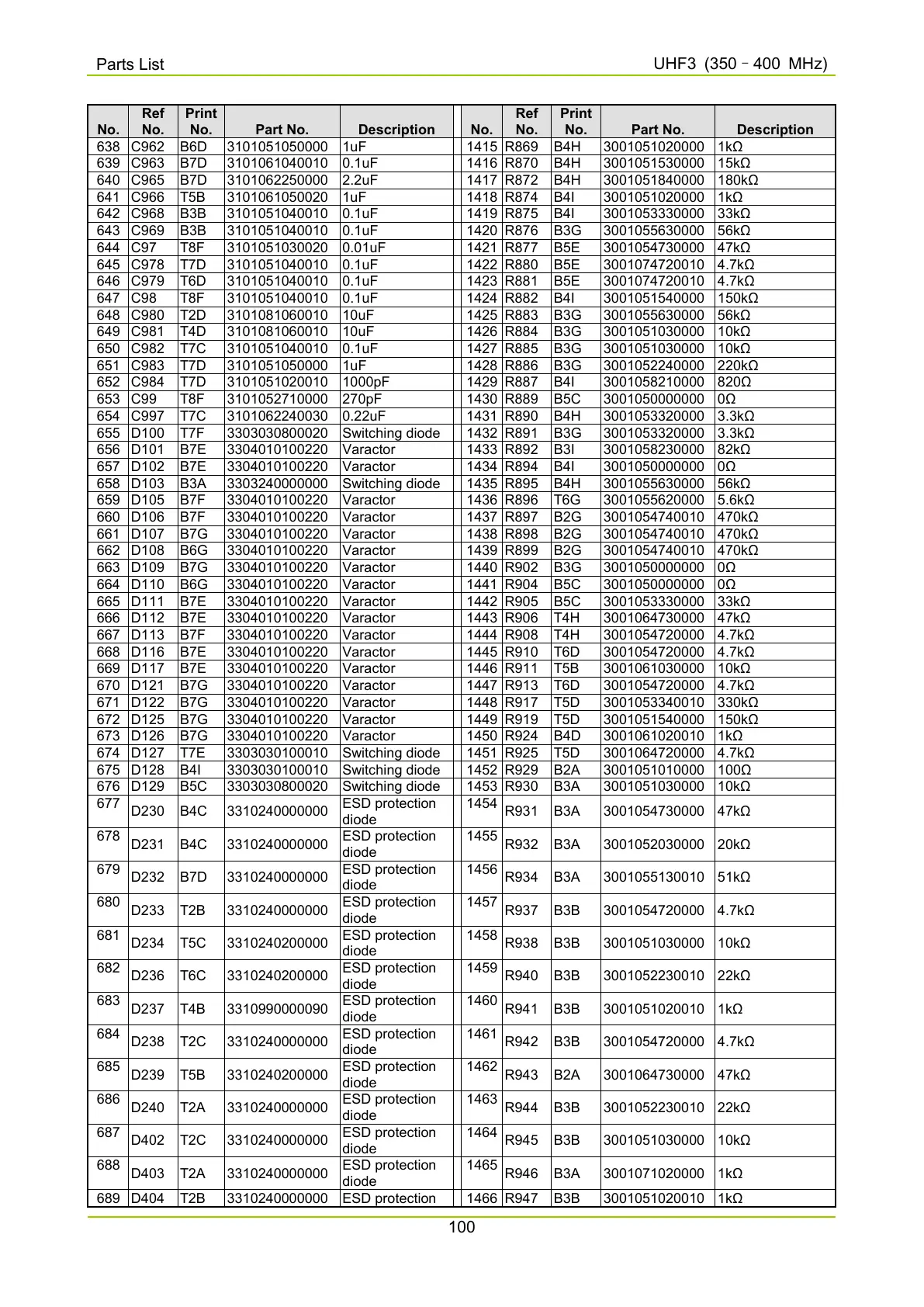

Hytera MD78X Service Manual

Parts List
UHF3 (350
–
400 MHz)
100
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
638
C962
B6D
3101051050000
1uF
1415
R869
B4H
3001051020000
1kΩ
639
C963
B7D
3101061040010
0.1uF
1416
R870
B4H
3001051530000
15kΩ
640
C965
B7D
3101062250000
2.2uF
1417
R872
B4H
3001051840000
180kΩ
641
C966
T5B
3101061050020
1uF
1418
R874
B4I
3001051020000
1kΩ
642
C968
B3B
3101051040010
0.1uF
1419
R875
B4I
3001053330000
33kΩ
643
C969
B3B
3101051040010
0.1uF
1420
R876
B3G
3001055630000
56kΩ
644
C97
T8F
3101051030020
0.01uF
1421
R877
B5E
3001054730000
47kΩ
645
C978
T7D
3101051040010
0.1uF
1422
R880
B5E
3001074720010
4.7kΩ
646
C979
T6D
3101051040010
0.1uF
1423
R881
B5E
3001074720010
4.7kΩ
647
C98
T8F
3101051040010
0.1uF
1424
R882
B4I
3001051540000
150kΩ
648
C980
T2D
3101081060010
10uF
1425
R883
B3G
3001055630000
56kΩ
649
C981
T4D
3101081060010
10uF
1426
R884
B3G
3001051030000
10kΩ
650
C982
T7C
3101051040010
0.1uF
1427
R885
B3G
3001051030000
10kΩ
651
C983
T7D
3101051050000
1uF
1428
R886
B3G
3001052240000
220kΩ
652
C984
T7D
3101051020010
1000pF
1429
R887
B4I
3001058210000
820Ω
653
C99
T8F
3101052710000
270pF
1430
R889
B5C
3001050000000
0Ω
654
C997
T7C
3101062240030
0.22uF
1431
R890
B4H
3001053320000
3.3kΩ
655
D100
T7F
3303030800020
Switching diode
1432
R891
B3G
3001053320000
3.3kΩ
656
D101
B7E
3304010100220
Varactor
1433
R892
B3I
3001058230000
82kΩ
657
D102
B7E
3304010100220
Varactor
1434
R894
B4I
3001050000000
0Ω
658
D103
B3A
3303240000000
Switching diode
1435
R895
B4H
3001055630000
56kΩ
659
D105
B7F
3304010100220
Varactor
1436
R896
T6G
3001055620000
5.6kΩ
660
D106
B7F
3304010100220
Varactor
1437
R897
B2G
3001054740010
470kΩ
661
D107
B7G
3304010100220
Varactor
1438
R898
B2G
3001054740010
470kΩ
662
D108
B6G
3304010100220
Varactor
1439
R899
B2G
3001054740010
470kΩ
663
D109
B7G
3304010100220
Varactor
1440
R902
B3G
3001050000000
0Ω
664
D110
B6G
3304010100220
Varactor
1441
R904
B5C
3001050000000
0Ω
665
D111
B7E
3304010100220
Varactor
1442
R905
B5C
3001053330000
33kΩ
666
D112
B7E
3304010100220
Varactor
1443
R906
T4H
3001064730000
47kΩ
667
D113
B7F
3304010100220
Varactor
1444
R908
T4H
3001054720000
4.7kΩ
668
D116
B7E
3304010100220
Varactor
1445
R910
T6D
3001054720000
4.7kΩ
669
D117
B7E
3304010100220
Varactor
1446
R911
T5B
3001061030000
10kΩ
670
D121
B7G
3304010100220
Varactor
1447
R913
T6D
3001054720000
4.7kΩ
671
D122
B7G
3304010100220
Varactor
1448
R917
T5D
3001053340010
330kΩ
672
D125
B7G
3304010100220
Varactor
1449
R919
T5D
3001051540000
150kΩ
673
D126
B7G
3304010100220
Varactor
1450
R924
B4D
3001061020010
1kΩ
674
D127
T7E
3303030100010
Switching diode
1451
R925
T5D
3001064720000
4.7kΩ
675
D128
B4I
3303030100010
Switching diode
1452
R929
B2A
3001051010000
100Ω
676
D129
B5C
3303030800020
Switching diode
1453
R930
B3A
3001051030000
10kΩ
677
D230 B4C 3310240000000
ESD protection
diode
1454
R931 B3A 3001054730000 47kΩ
678
D231 B4C 3310240000000
ESD protection
diode
1455
R932 B3A 3001052030000 20kΩ
679
D232 B7D 3310240000000
ESD protection
diode
1456
R934 B3A 3001055130010 51kΩ
680
D233 T2B 3310240000000
ESD protection
diode
1457
R937 B3B 3001054720000 4.7kΩ
681
D234 T5C 3310240200000
ESD protection
diode
1458
R938 B3B 3001051030000 10kΩ
682
D236 T6C 3310240200000
ESD protection
diode
1459
R940 B3B 3001052230010 22kΩ
683
D237 T4B 3310990000090
ESD protection
diode
1460
R941 B3B 3001051020010 1kΩ
684
D238 T2C 3310240000000
ESD protection
diode
1461
R942 B3B 3001054720000 4.7kΩ
685
D239 T5B 3310240200000
ESD protection
diode
1462
R943 B2A 3001064730000 47kΩ
686
D240 T2A 3310240000000
ESD protection
diode
1463
R944 B3B 3001052230010 22kΩ
687
D402 T2C 3310240000000
ESD protection
diode
1464
R945 B3B 3001051030000 10kΩ
688
D403 T2A 3310240000000
ESD protection
diode
1465
R946 B3A 3001071020000 1kΩ
689
D404
T2B
3310240000000
ESD protection
1466
R947
B3B
3001051020010
1kΩ
