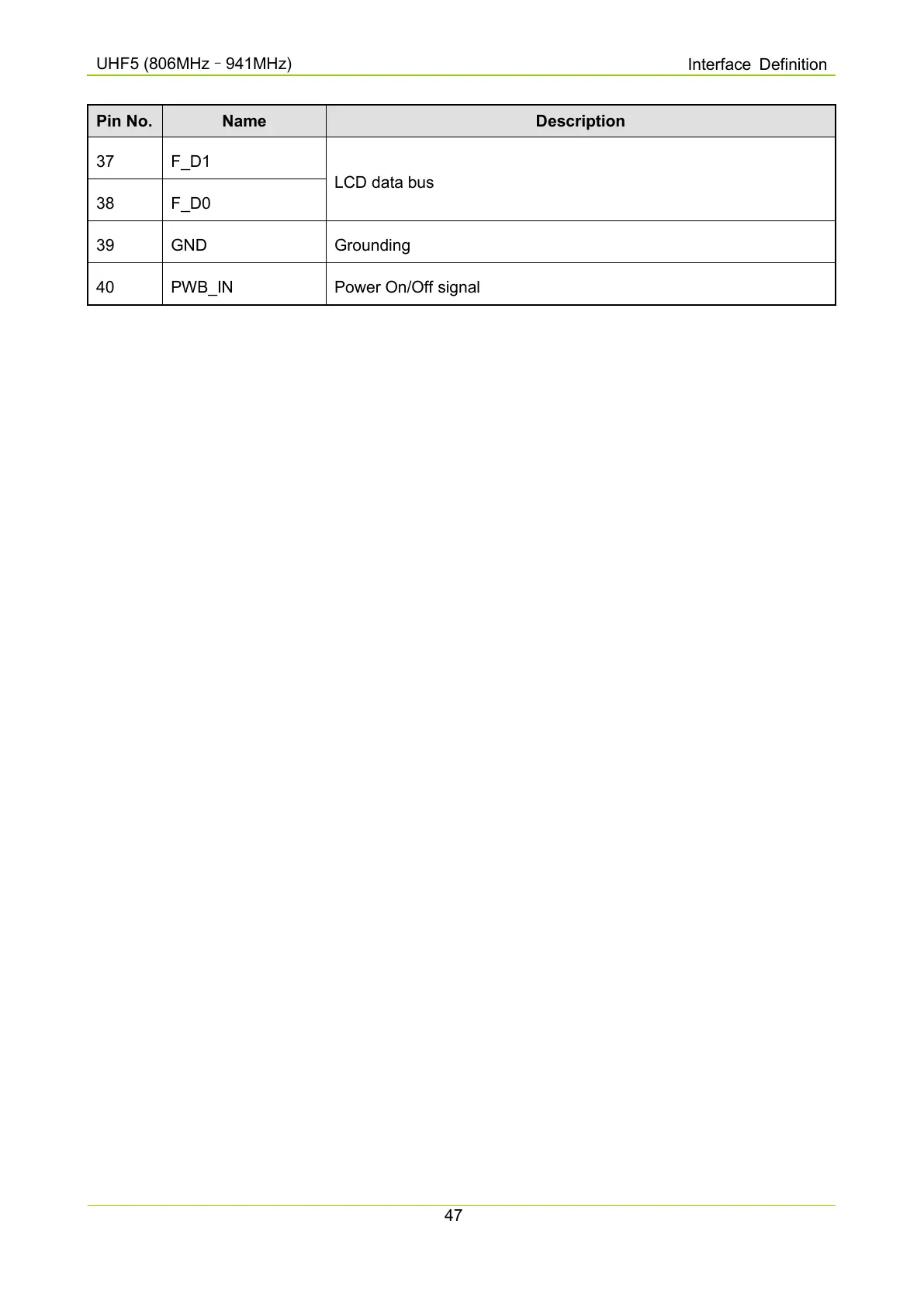

UHF5 (806MHz
941MHz)
Interface Definition
47
Pin No. Name Description
37 F_D1
LCD data bus
38 F_D0
39 GND Grounding
40 PWB_IN Power On/Off signal
