Product Controls
VHF (136MHz
–
174MHz)
2

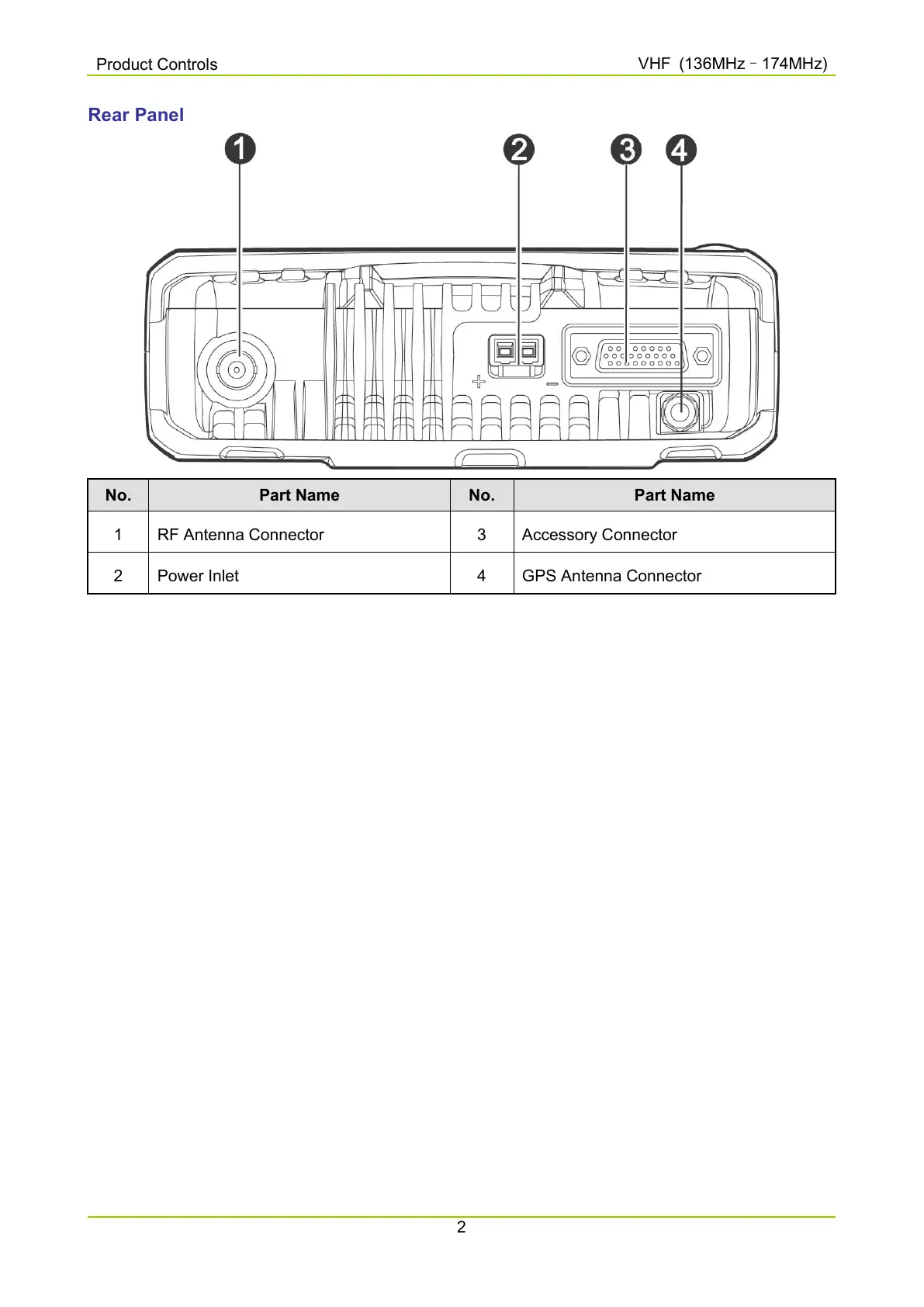

Rear Panel
No. Part Name No. Part Name
1 RF Antenna Connector 3 Accessory Connector
2 Power Inlet 4 GPS Antenna Connector
