Hytera MD78X Service Manual

VHF (136MHz
–
174MHz)

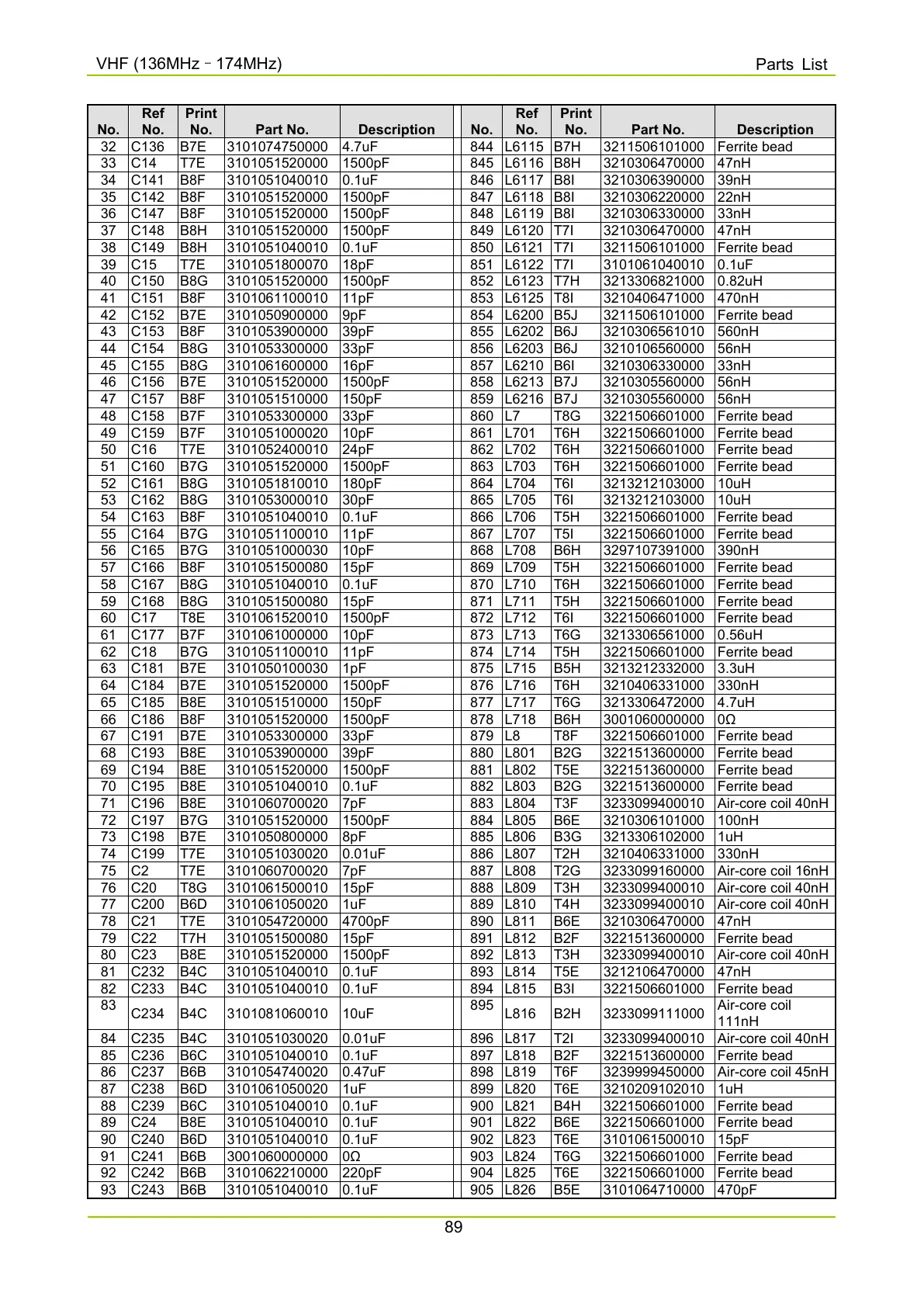

Parts List
89
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
32
C136
B7E
3101074750000
4.7uF
844
L6115
B7H
3211506101000
Ferrite bead
33
C14
T7E
3101051520000
1500pF
845
L6116
B8H
3210306470000
47nH
34
C141
B8F
3101051040010
0.1uF
846
L6117
B8I
3210306390000
39nH
35
C142
B8F
3101051520000
1500pF
847
L6118
B8I
3210306220000
22nH
36
C147
B8F
3101051520000
1500pF
848
L6119
B8I
3210306330000
33nH
37
C148
B8H
3101051520000
1500pF
849
L6120
T7I
3210306470000
47nH
38
C149
B8H
3101051040010
0.1uF
850
L6121
T7I
3211506101000
Ferrite bead
39
C15
T7E
3101051800070
18pF
851
L6122
T7I
3101061040010
0.1uF
40
C150
B8G
3101051520000
1500pF
852
L6123
T7H
3213306821000
0.82uH
41
C151
B8F
3101061100010
11pF
853
L6125
T8I
3210406471000
470nH
42
C152
B7E
3101050900000
9pF
854
L6200
B5J
3211506101000
Ferrite bead
43
C153
B8F
3101053900000
39pF
855
L6202
B6J
3210306561010
560nH
44
C154
B8G
3101053300000
33pF
856
L6203
B6J
3210106560000
56nH
45
C155
B8G
3101061600000
16pF
857
L6210
B6I
3210306330000
33nH
46
C156
B7E
3101051520000
1500pF
858
L6213
B7J
3210305560000
56nH
47
C157
B8F
3101051510000
150pF
859
L6216
B7J
3210305560000
56nH
48
C158
B7F
3101053300000
33pF
860
L7
T8G
3221506601000
Ferrite bead
49
C159
B7F
3101051000020
10pF
861
L701
T6H
3221506601000
Ferrite bead
50
C16
T7E
3101052400010
24pF
862
L702
T6H
3221506601000
Ferrite bead
51
C160
B7G
3101051520000
1500pF
863
L703
T6H
3221506601000
Ferrite bead
52
C161
B8G
3101051810010
180pF
864
L704
T6I
3213212103000
10uH
53
C162
B8G
3101053000010
30pF
865
L705
T6I
3213212103000
10uH
54
C163
B8F
3101051040010
0.1uF
866
L706
T5H
3221506601000
Ferrite bead
55
C164
B7G
3101051100010
11pF
867
L707
T5I
3221506601000
Ferrite bead
56
C165
B7G
3101051000030
10pF
868
L708
B6H
3297107391000
390nH
57
C166
B8F
3101051500080
15pF
869
L709
T5H
3221506601000
Ferrite bead
58
C167
B8G
3101051040010
0.1uF
870
L710
T6H
3221506601000
Ferrite bead
59
C168
B8G
3101051500080
15pF
871
L711
T5H
3221506601000
Ferrite bead
60
C17
T8E
3101061520010
1500pF
872
L712
T6I
3221506601000
Ferrite bead
61
C177
B7F
3101061000000
10pF
873
L713
T6G
3213306561000
0.56uH
62
C18
B7G
3101051100010
11pF
874
L714
T5H
3221506601000
Ferrite bead
63
C181
B7E
3101050100030
1pF
875
L715
B5H
3213212332000
3.3uH
64
C184
B7E
3101051520000
1500pF
876
L716
T6H
3210406331000
330nH
65
C185
B8E
3101051510000
150pF
877
L717
T6G
3213306472000
4.7uH
66
C186
B8F
3101051520000
1500pF
878
L718
B6H
3001060000000
0Ω
67
C191
B7E
3101053300000
33pF
879
L8
T8F
3221506601000
Ferrite bead
68
C193
B8E
3101053900000
39pF
880
L801
B2G
3221513600000
Ferrite bead
69
C194
B8E
3101051520000
1500pF
881
L802
T5E
3221513600000
Ferrite bead
70
C195
B8E
3101051040010
0.1uF
882
L803
B2G
3221513600000
Ferrite bead
71
C196
B8E
3101060700020
7pF
883
L804
T3F
3233099400010
Air-core coil 40nH
72
C197
B7G
3101051520000
1500pF
884
L805
B6E
3210306101000
100nH
73
C198
B7E
3101050800000
8pF
885
L806
B3G
3213306102000
1uH
74
C199
T7E
3101051030020
0.01uF
886
L807
T2H
3210406331000
330nH
75
C2
T7E
3101060700020
7pF
887
L808
T2G
3233099160000
Air-core coil 16nH
76
C20
T8G
3101061500010
15pF
888
L809
T3H
3233099400010
Air-core coil 40nH
77
C200
B6D
3101061050020
1uF
889
L810
T4H
3233099400010
Air-core coil 40nH
78
C21
T7E
3101054720000
4700pF
890
L811
B6E
3210306470000
47nH
79
C22
T7H
3101051500080
15pF
891
L812
B2F
3221513600000
Ferrite bead
80
C23
B8E
3101051520000
1500pF
892
L813
T3H
3233099400010
Air-core coil 40nH
81
C232
B4C
3101051040010
0.1uF
893
L814
T5E
3212106470000
47nH
82
C233
B4C
3101051040010
0.1uF
894
L815
B3I
3221506601000
Ferrite bead
83
C234 B4C 3101081060010 10uF
895
L816 B2H 3233099111000
Air-core coil
111nH
84
C235
B4C
3101051030020
0.01uF
896
L817
T2I
3233099400010
Air-core coil 40nH
85
C236
B6C
3101051040010
0.1uF
897
L818
B2F
3221513600000
Ferrite bead
86
C237
B6B
3101054740020
0.47uF
898
L819
T6F
3239999450000
Air-core coil 45nH
87
C238
B6D
3101061050020
1uF
899
L820
T6E
3210209102010
1uH
88
C239
B6C
3101051040010
0.1uF
900
L821
B4H
3221506601000
Ferrite bead
89
C24
B8E
3101051040010
0.1uF
901
L822
B6E
3221506601000
Ferrite bead
90
C240
B6D
3101051040010
0.1uF
902
L823
T6E
3101061500010
15pF
91
C241
B6B
3001060000000
0Ω
903
L824
T6G
3221506601000
Ferrite bead
92
C242
B6B
3101062210000
220pF
904
L825
T6E
3221506601000
Ferrite bead
93
C243
B6B
3101051040010
0.1uF
905
L826
B5E
3101064710000
470pF
