Product Controls
UHF1 (400
–
470 MHz)
2

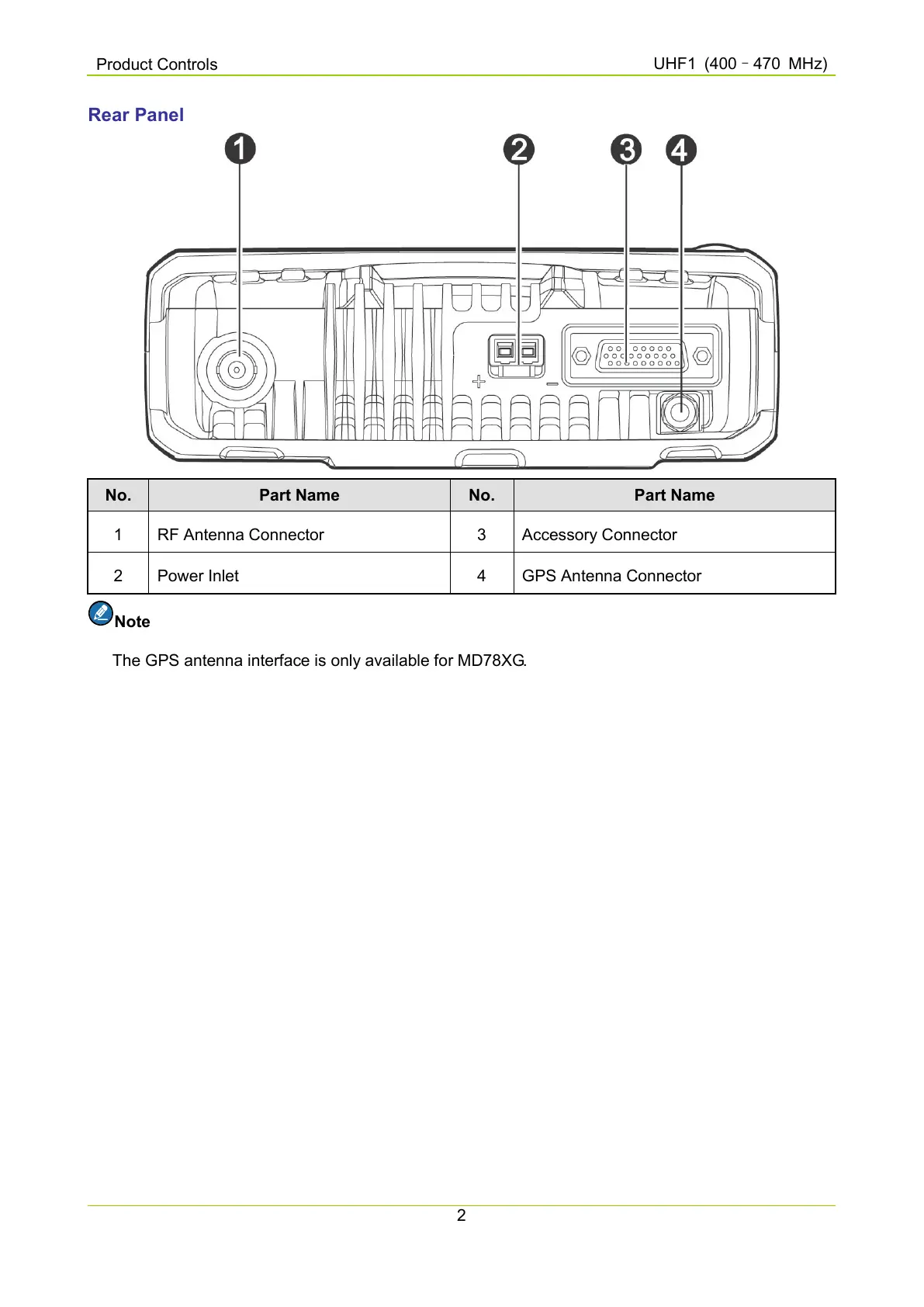

Rear Panel
No. Part Name No. Part Name
1 RF Antenna Connector 3 Accessory Connector
2 Power Inlet 4 GPS Antenna Connector
Note
The GPS antenna interface is only available for MD78XG.
