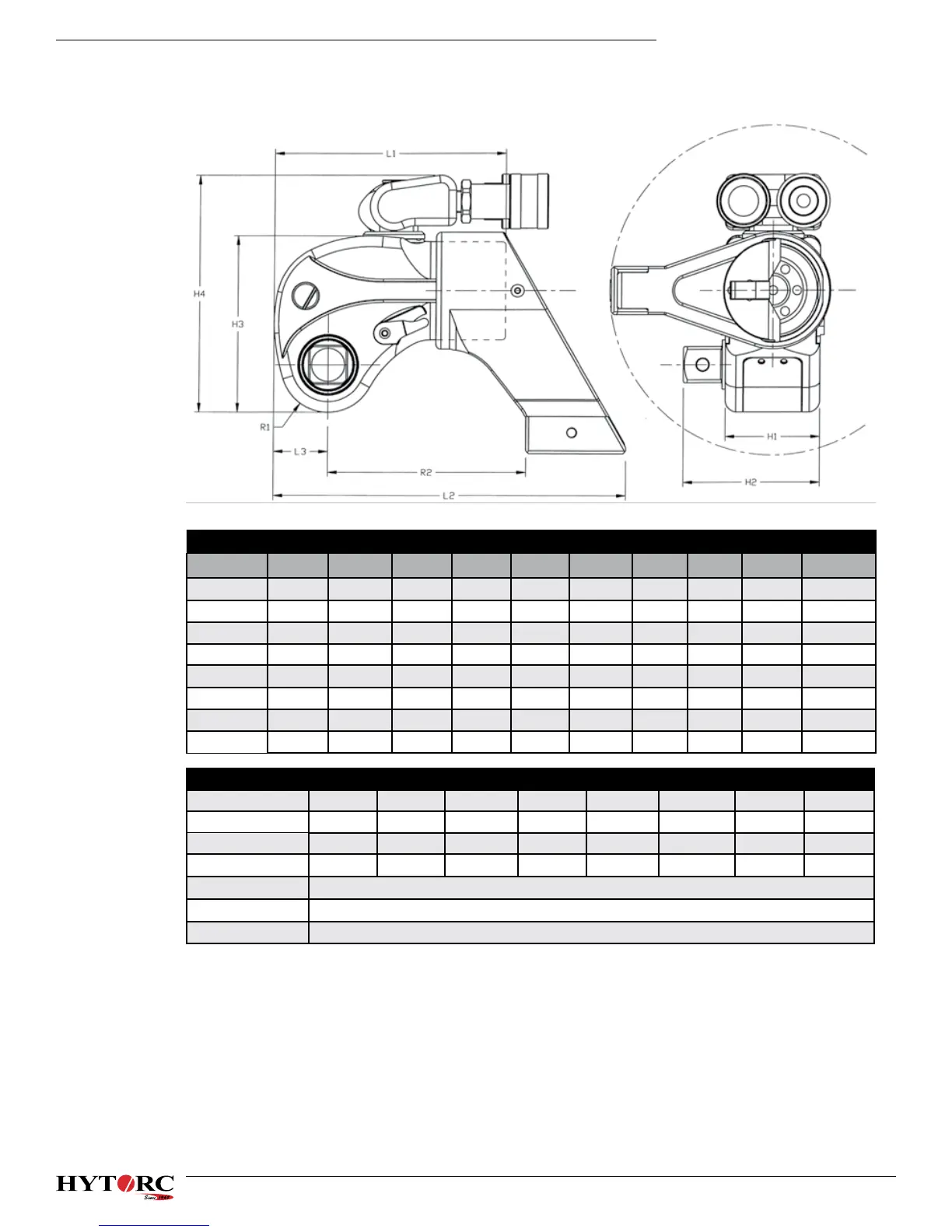

MXT dimensional data - Metric13
(continued...)
*The weight listed is for the complete ready-to-use HYTORC tool with reaction arm.
Inches Lbs.
L1 L2 L3 H1 H2 H3 H4 R1 R2 Weight*
MXT-.7 100.6 151. 9 23.6 41.2 64.3 76.2 108.0 20.6 84.3 1.2
MXT-1 123.9 186.2 28.7 50.0 72.4 93.0 124.5 25.0 104.7 1.8
MXT-3 161. 0 243.8 38.4 66.8 96.8 124.0 155.5 33.3 135.1 3.8
MXT-5 193.3 292.6 46.0 80.3 125.0 148.6 183.4 39.9 162.6 6.5
MXT-10 241.6 365.3 57.4 100.3 142.8 185.9 223.5 49.8 202.4 11 . 3
MXT-15 268.1 388.3 63.6 111 . 1 177. 8 204.7 245.6 55.4 219.2 16.4
MXT-20 289.8 438.7 68.8 120.1 180.3 223.0 260.1 59.9 243.3 19.7
MXT-35 356.3 539.2 84.6 147. 8 211 . 3 274.1 313.9 73.7 298.2 35.2
MXT-.7 MXT-1 MXT-3 MXT-5 MXT-10 MXT-15 MXT-20 MXT-35
Square Drive ¾” ¾” 1” 1-½” 1-½” 2-½” 2-½” 2-½”
Min. Torque (ft.lbs.) 167 273 657 1, 137 2,343 3,238 4,018 7,544
Max. Torque (ft.lbs.) 1 , 114 1, 817 4,379 7, 578 15,617 21,584 26,787 50,293
Accuracy ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3%
Swivel 360º x 180º STANDARD
Uni-Body Housing TITAL399
Click-On Reaction Arm TITAL300, Vertical, 360°, Tension absorbing
MXT Dimensional Data - Metric
