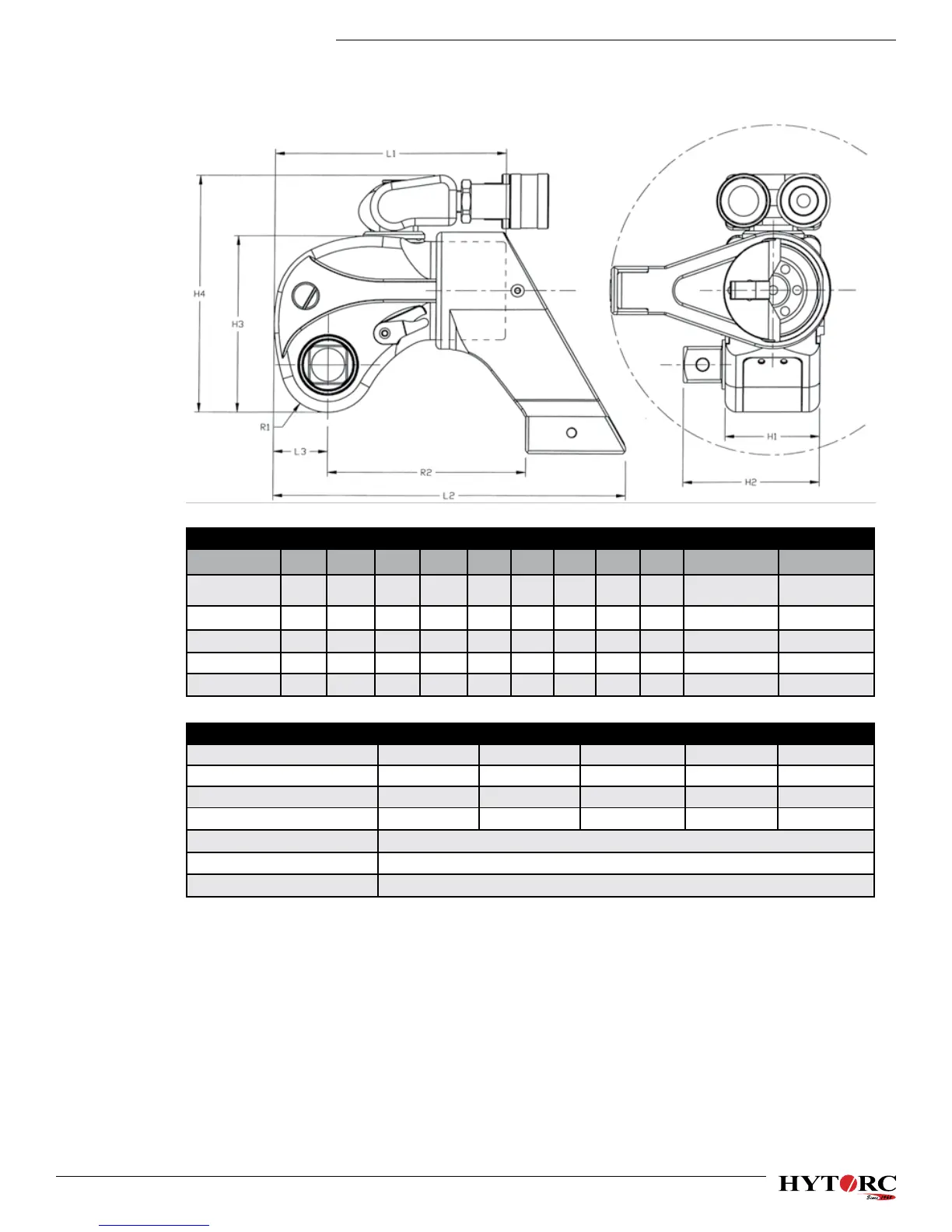

MXT-SA dimensional data - Imperial14
*The weight listed is for the complete ready-to-use HYTORC tool with reaction arm.
Inches Lbs. Ft. Lbs.
L1 L2 L3 H1 H2 H3 H4 R1 R2 Weight* Max Torque
MXT-.7-SA
3.96 5.95 0.93 1.62 2.53 3.00 4.25 0.81 3.32 3.3 397
MXT-1-SA
4.88 7.33 1. 13 1.97 2.85 3.66 4.9 0.98 4.12 4.45 1,340
MXT-3-SA
6.34 9.6 1. 51 2.63 3.81 4.88 6.12 1. 31 5.32 9.95 3,230
MXT-5-SA 7. 61 11.52 1. 81 3.16 4.92 5.85 7.22 1.57 6.4 16.75 5,590
MXT-10-SA
9.51 14.38 2.26 3.95 5.62 7. 32 8.80 1.96 7.97 24.95 8,000
MXT-.7-SA MXT-1-SA MXT-3-SA MXT-5-SA MXT-10-SA
Square Drive ¾” 1” 1” 1-½” 1-½”
Min. Torque (ft.lbs.) 60 201 485 839 1,200
Max. Torque (ft.lbs.) 397 1,340 3,230 5,590 8,000
Accuracy ± 3% ± 3% ± 3% ± 3% ± 3%
Swivel 360º x 180º STANDARD
Uni-Body Housing TITAL399
Click-On Reaction Arm TITAL300, Vertical, 360°, Tension absorbing
MXT-SA Dimensional Data - Imperial
