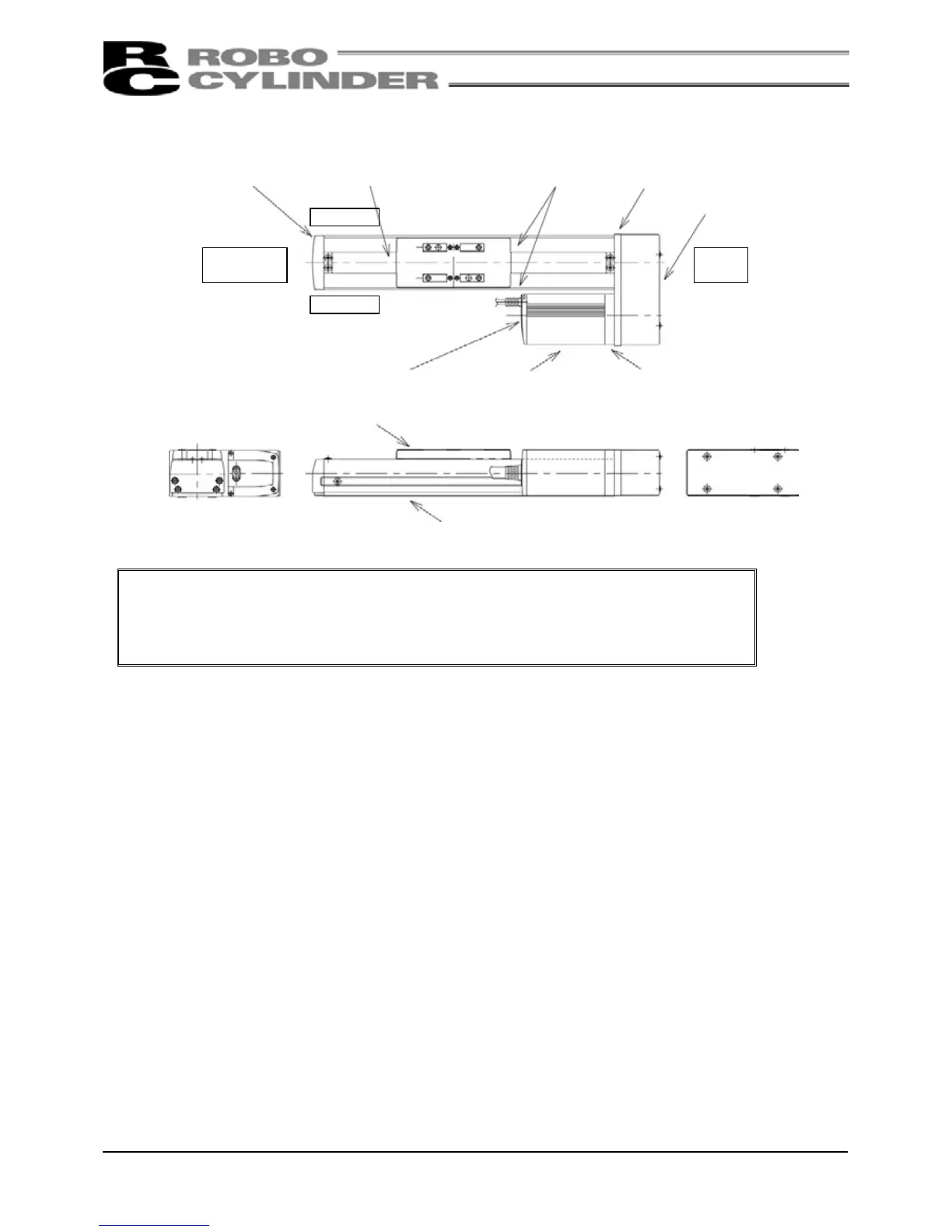

●SS7R, SS8R, HS8R
Caution: The cable directly connected to the actuator is not a robot cable even when
ordered with a robot cable option. When designing, please make sure not to give
repeated bending loads to this cable.
The robot cable is applicable only to the connecting cables.
Stainless Sheet
Opposite
Motor End
Side Cove
r
Right Side
Left Side
Mounting Flange
Motor Bracket
Motor
End
Front Cove
r
Base
Slider
Motor End Cap Motor Cove
r
Pulley Cove
r
