7.2 Mounting Surface
• The mounting table should have sufficient rigidity to avoid generating vibration.
• The surface where the actuator will be mounted should be machined or be equally level and the flatness
tolerance between the actuator and the table should be within 0.05mm.
• Provide sufficient space around the actuator to permit maintenance work to be performed.

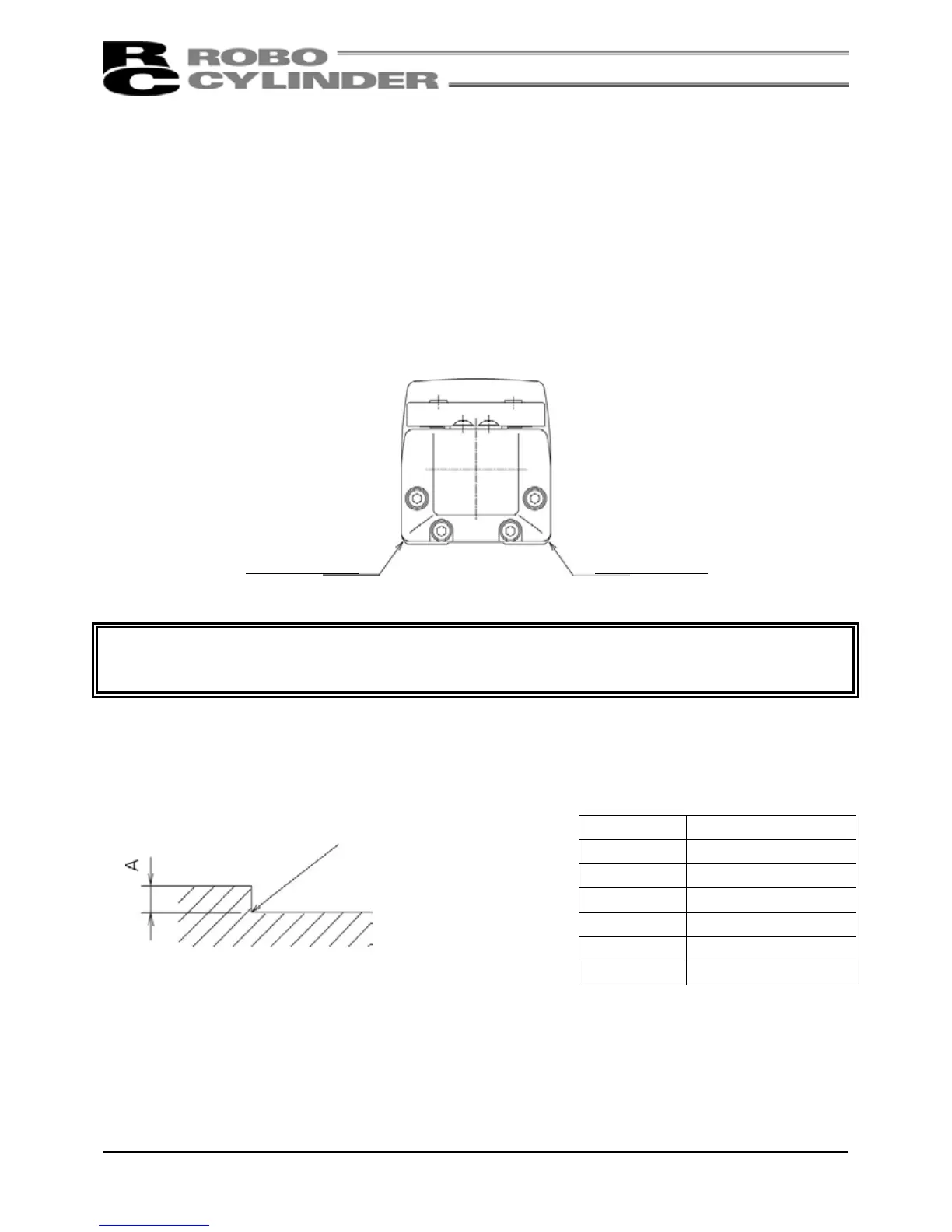

• The side and bottom faces of the actuator base provide the reference planes for slider travel.
• When traveling precision is required, use these surfaces as the reference planes for mounting.
Caution: As shown above, the side faces of the base provide the reference planes for slider travel. When
precision is required, use these surfaces as the reference planes for mounting.
When using the base as the reference planes for mounting the actuator to the machine frame, follow the
machining dimensions shown below.
Type Dimension A (mm)
SA5C 2 to 3.5
SA6C 2 to 3.5
SA7C 2 to 5
SA7C 2 to 5
SS8C 2 to 5
HS8C 2 to 5
Reference plane
