7) Install the pulley cap.
Tighten the hexagon socket-head bolts (M3 × 10, 4 pcs.) using an Allen wrench of 2.5mm across flats.
Tightening torque: 83N·cm (8.47kgf·cm)

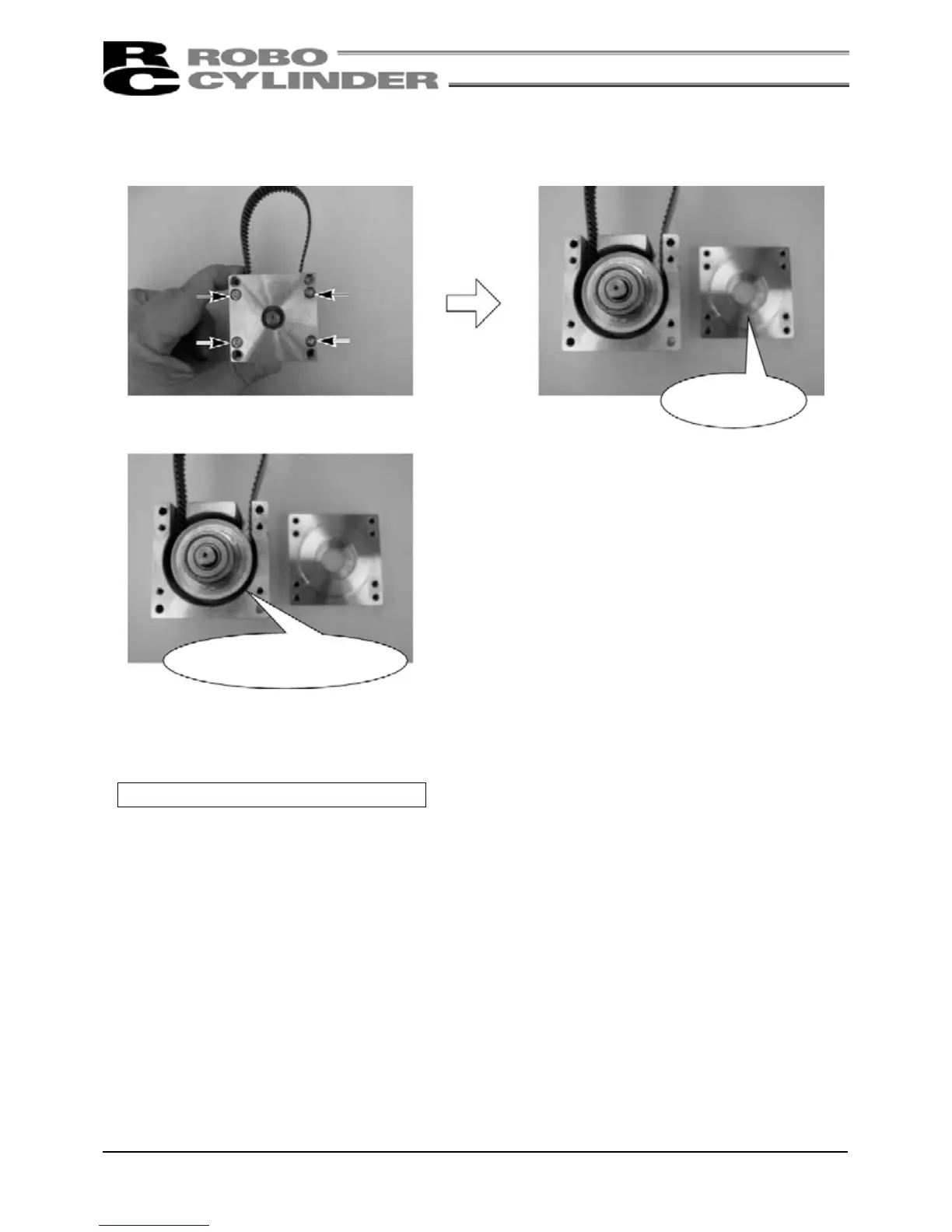

5) Remove the pulley assembly.
• Remove the four affixing bolts using an Allen
wrench of 2.5mm across flats.
6) Pull out the belt and insert a new belt.
Pulley cap
Insert the belt into
this clearance.
To Next Page
