5.
For
single-station
printers,
route
any
power
cord
and
cables
as
shown
in
Figure
8
on
page
20.
Power supply port (RS-232 only)
RS-232 port
RS-485 port
Cash drawer connector

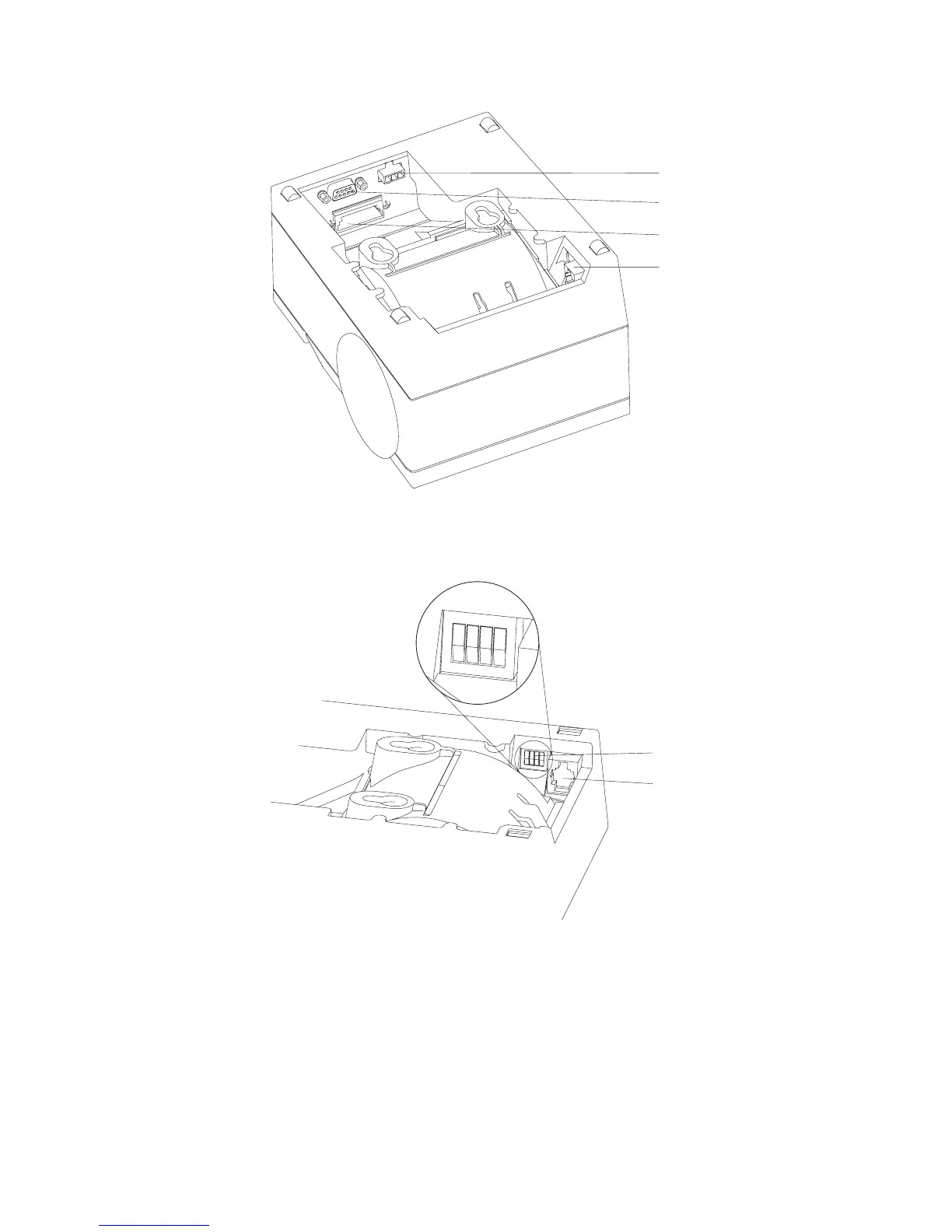

Figure
6.
Cable
Connectors
for
Single-Station
SureMark
Printers.
(View
is
from
the
bottom
rear
of
the
printer)
1
2
3
OFF
4
RS-232 mode switches
Cash drawer connector
Figure
7.
RS-232
Mode
Switches
for
Single-Station
SureMark
Printers.
(View
is
from
the
bottom
rear
of
the
printer)
August
24,
2004
Chapter
2.
Installation
instructions
19
