Chapter
6.
Operation
(Models
TF6
and
TM6)
Operating
controls
and
indicators
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.71
Paper
loading
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.71
Thermal
printhead
cleaning
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.73
Note:
All
covers
must
be
installed
on
the
SureMark
printer
during
operation.
Operating
controls
and
indicators
There
is
one
triangular-shaped
button
and
one
light-emitting
diode
(LED)
indicator
located
on
top
of
the
printer.
When
the
LED
indicator
is
on
continuously,
the
printer
is
powered
on
and
ready
for
printing.
When
the
indicator
blinks,
one
of
the
following
conditions
exists:
v
The
printer
is
offline
(offline
testing
is
enabled).
v
The
printer
is
out
of
paper.
v
The
cover
is
open.
v
The
cutter
is
jammed.
See
“Offline
test”
on
page
76
for
additional
button
functions.
Paper
loading
1.
Open
the
paper
cover.
2.
If
there
is
any
unused
paper
or
if
there
is
an
empty
paper
roll
core
in
the
paper
roll
holder
inside
the
printer,
remove
it
before
inserting
a
new
paper
roll.
You
can
throw
the
core
in
the
trash
can.
3.
If
the
printer
is
configured
for
″snap
in″
paper
loading
(two
white
spheres
are
present
behind
the
metal
springs
then
place
the
paper
roll
onto
the
paper
roll
holder
as
shown
in
Figure
37
on
page
72
otherwise,
merely
drop
the
roll
into
the
bucket.
The
leading
edge
of
the
paper
should
come
from
the
direction
of
the
back
of
the
printer
and
go
across
the
bottom
of
the
roll
as
shown
in
the
diagram.
Note:
The
thermal
printhead
will
not
print
on
paper
with
glue
on
it.
If
the
new
paper
roll
was
sealed
by
glue,
tear
off
the
15
to
20
cm
(6
to
8
in.)
of
paper
with
glue
on
it
before
loading
it.
Or,
you
can
advance
the
paper
after
loading
to
get
rid
of
the
glued
paper.
4.
Pull
the
end
of
the
paper
up
over
the
paper
roll
and
toward
the
back
of
the
printer.

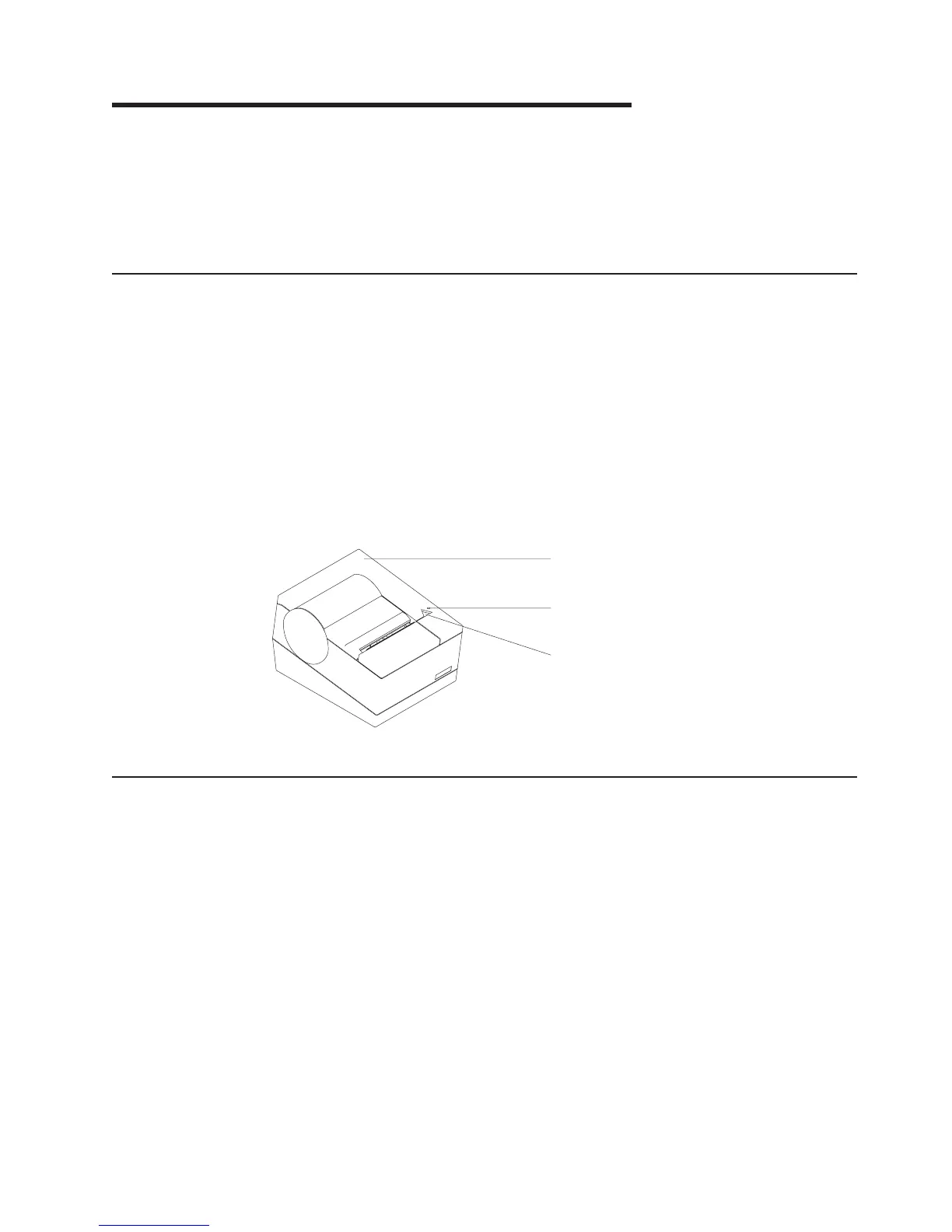

Top cover
Printer ready
LED
Customer receipt
feed button
Figure
36.
SureMark
Printer
-
Indicator,
Control,
and
Printing
Station
(Models
TF6
and
TM6)
August
24,
2004
©
Copyright
IBM
Corp.
1997,
2004
71
