3. Maintain ribbon tension by turning the ribbon cartridge knob as shown in
Figure 24 on page 51. Lower the cartridge into position until the notches on its
sides snap into place on the printer guides. Once the cartridge is in place, turn
the knob until the ribbon slides into place between the printhead and the ribbon
shield. See Figure 25 for correct ribbon positioning.
4. Close the ribbon cover.
Correct
Not Correct
Ribbon Shield
Printhead

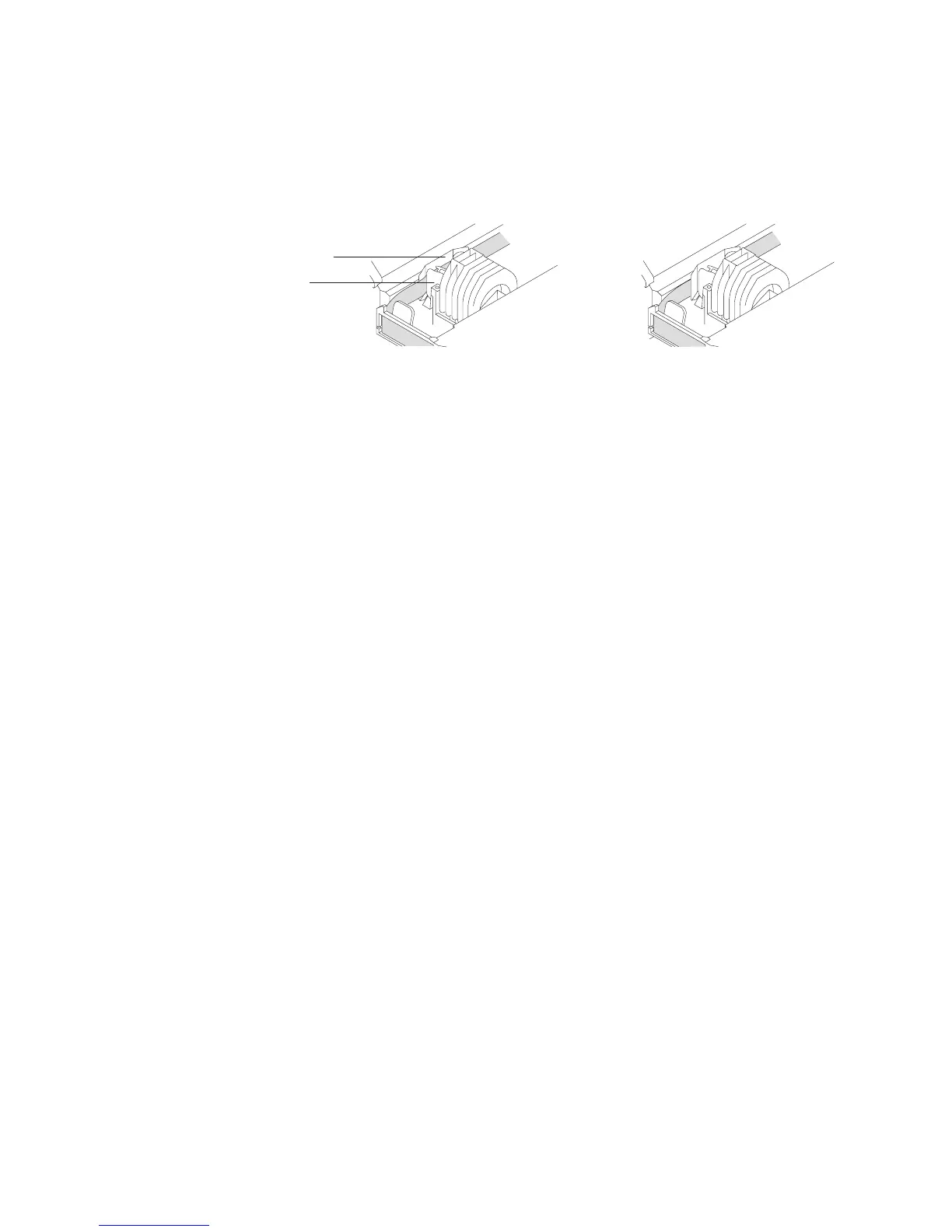

Figure 25. Ribbon Path around the Printhead
August 24, 2004
52 SureMark Printers User’s Guide
