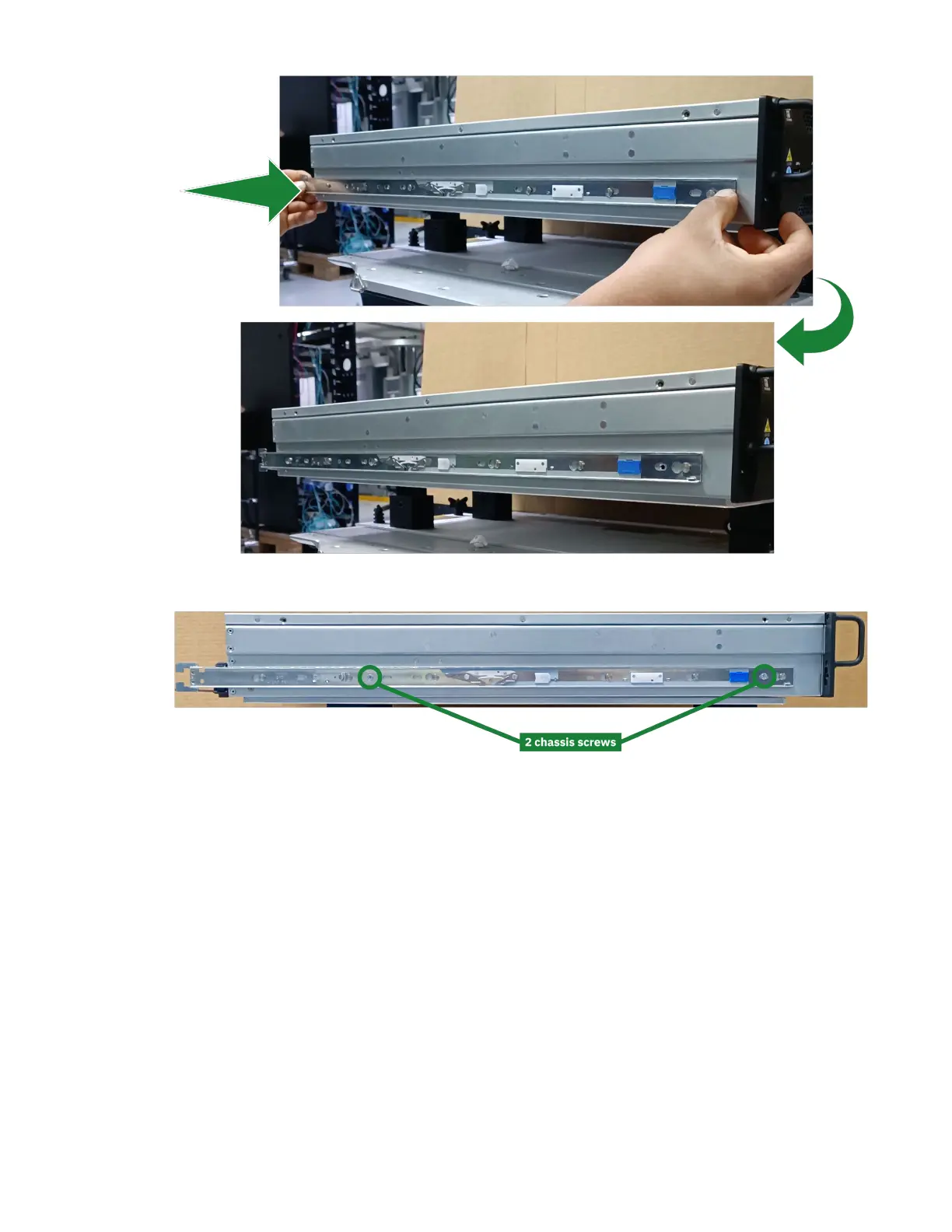

Figure 29. Securing the inner rail in the chassis
c. Install the rail by using two chassis screws.
Figure 30. Installing the inner rail onto the chassis
3. Fix the outer rail or bracket assembly to the frame.
You must secure the outer rails to the rack, both on the front and on the rear sides, one rail at a time.
For each rail, follow the next steps:
a) Align and insert the rail on the rack post holes. See the following gure.
Chapter 4. Installing
57
