(continued)
5 V dc 12 V dc
4 1

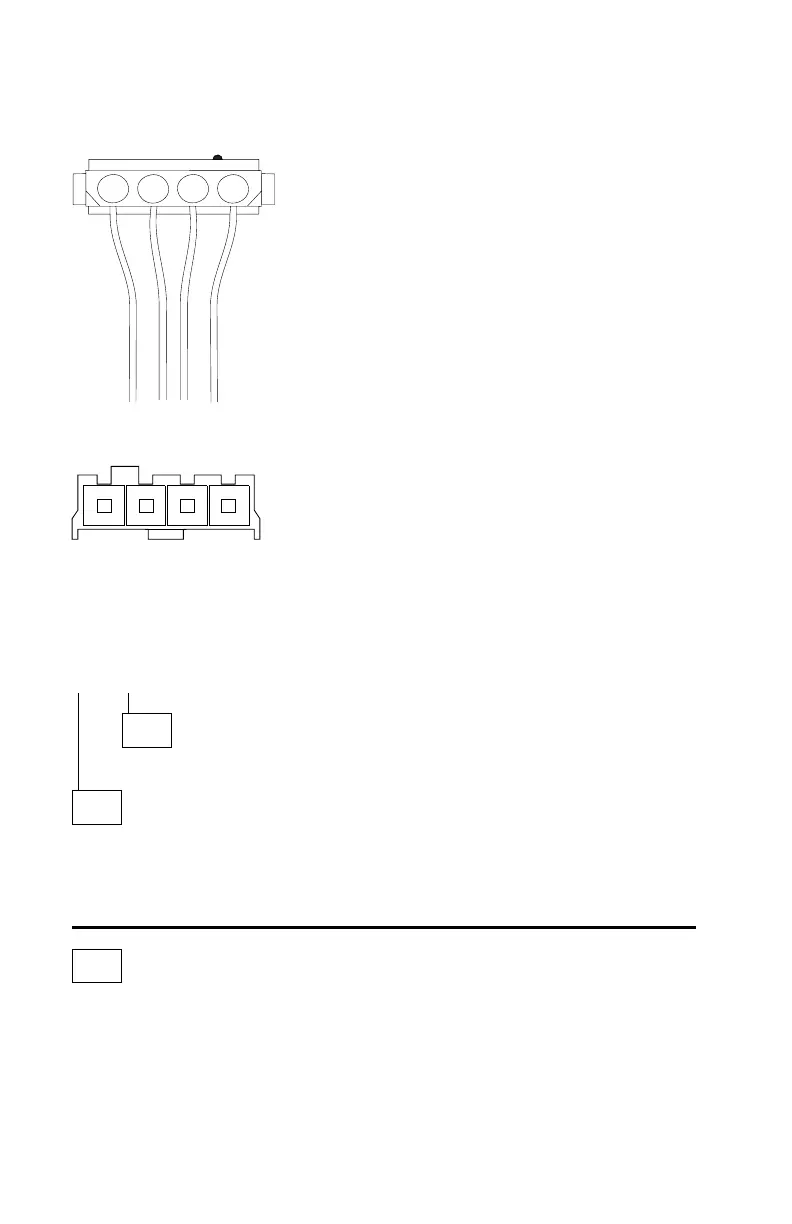

Figure 2-4. Hard Drive or CD-ROM Power Cable Connector
14
5 V dc 12 V dc
Figure 2-5. 3.5-In. Diskette Drive Power Cable Connector
ARE THE VOLTAGES CORRECT AND DOES THE FAN RUN?
Yes No
007
Replace the power supply.
008
– The power supply is working normally. If the fan continues to run when
the J8 connector is plugged back in, go to “Undetermined Problem” on
page 2-62. If the fan stops running when a drive connector is plugged
back in, go to “Factory-Installed Drive Devices” on page 2-38.
009
(From step 003)
(Step 009 continues)
2-28
To Next Page
