__ 5. Remove the system unit side cover (Figure 30 on page 30) as follows:
a. Slide up the cover latches that are shown at A to open the louvers and
expose the screws on either side of the cover.
b. When you remove the screws, do not lay them top of the system unit.

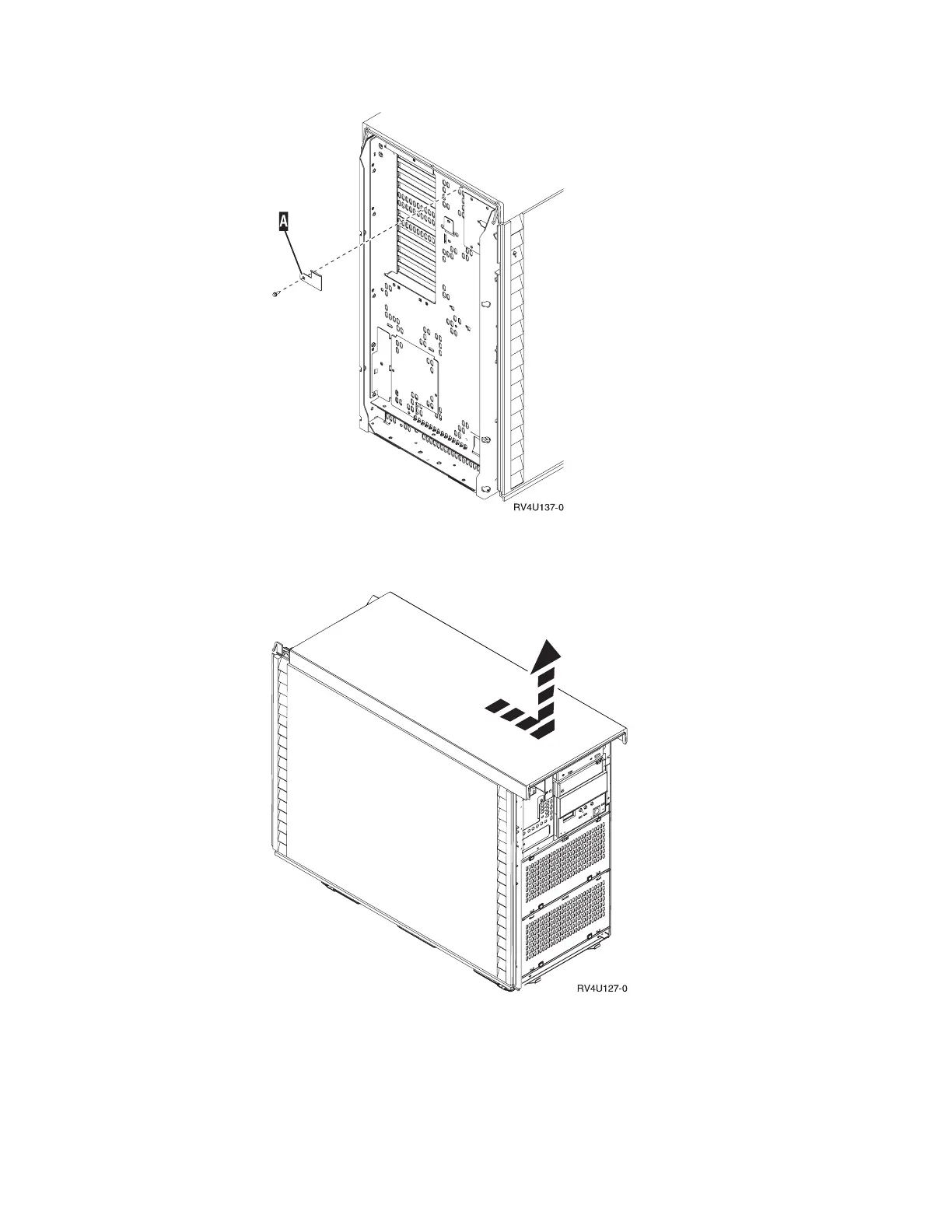

Figure 28. Removing the top cover lock
Figure 29. Removing the top cover
Appendix A. Connecting cables to your AS400e System 620 or S20 29
