b. On the System Configuration List, locate your expansion unit.
c. Once you locate your expansion unit, look at the Logical Address field.
The value for X is the second digit in the field.
__ 4. Place the configuration list in this book.
Example: The following is an example of how to find the Direct Select Address for
location D02. The Direct Select Address from for location D02 is 0X20
0004 00FF. The value for X is under the LOGICAL ADDRESS field in the
System Configuration List as is shown in the example below:
LOGICAL ADDRESS
1/4/ /-/////
Under the LOGICAL ADDRESS field, the second digit is 4. Therefore the
Direct Select Address for location D02 in this example is 0420 0004 00FF.
__ 5. Locate the next available slot for the disk unit by reviewing the steps in
“Optimizing your new disk unit” on page 37.
__ 6. Record the Direct Select Address for your disk unit to use in the concurrent
install procedure.
Performing the concurrent install
After you find the Direct Select Address, perform these steps to concurrently install
your disk unit:
__ 1. Refer to Figure 35 and remove the enclosure shield for the disk unit.
__ 2. Remove the long plastic connector cover from the position you will be
installing the new disk unit.
__ 3. Attention: Failure to follow these instructions could result in damage to
the new disk unit or the system-unit and could result in loss of data.

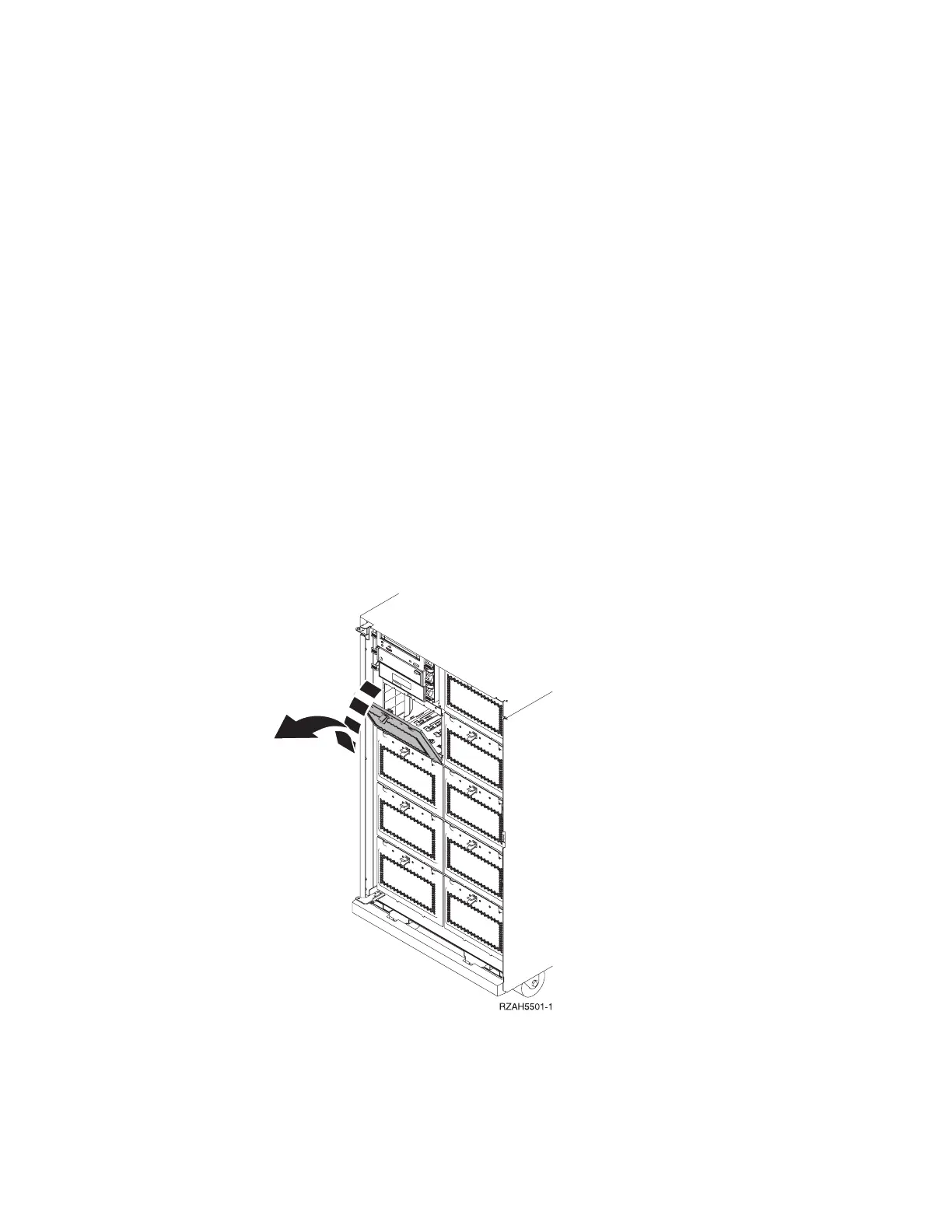

Figure 35. Removing the disk unit enclosure shield
Appendix C. Installing disk units in the 5065 or 5066 Expansion Unit 43
