IBM Flex System p260 User Manual

3. Slide the cover forward to the closed position until the releases click into place in the cover.
4. Install the compute node into the IBM Flex System Enterprise Chassis. See “Installing the compute
node in an IBM Flex System Enterprise Chassis” on page 93.
Removing the bezel assembly
If a bezel is damaged, you can remove it from a compute node.
About this task
Removal of the bezel assembly is not required for servicing internal components of your IBM Flex System
p260 Compute Node or IBM Flex System p460 Compute Node. If the bezel becomes damaged, you can
remove the bezel by using the following procedure.

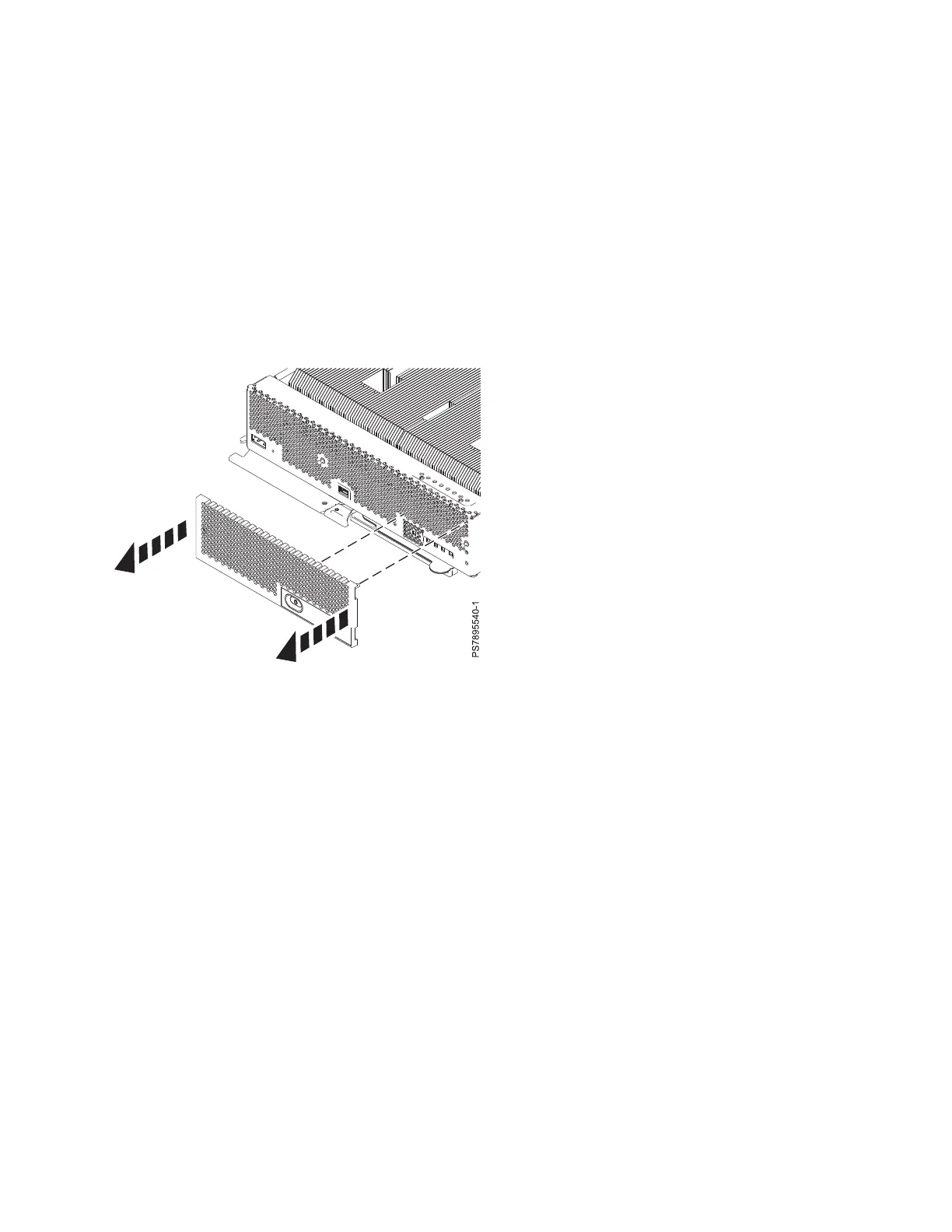

Figure 13. Removing the bezel assembly from an IBM Flex System p260 Compute Node
Chapter 6. Installing and removing components 43

IBM Flex System p260 Specifications

General

Brand	IBM
Model	Flex System p260
Category	Server
Language	English
