Table 6. Memory module combinations for the IBM Flex System p260 Compute Node
DIMM
count
DIMM slots for the IBM Flex System p260 Compute Node
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
2 X X
4 X X X X
6 X X X X X X
8 X X X X X X X X
10 X X X X X X X X X X
12 X X X X X X X X X X X X
14 X X X X X X X X X X X X X X
16 X X X X X X X X X X X X X X X X
Table 7. Memory module combinations for the IBM Flex System p460 Compute Node
DIMM
count
Two-bay DIMM slots for the IBM Flex System p460 Compute Node
1 (17) 2 (18) 3 (19) 4 (20) 5 (21) 6 (22) 7 (23) 8 (24) 9 (25) 10
(26)
11
(27)
12
(28)
13
(29)
14
(30)
15
(31)
16
(32)
2 X X
4 X (X) X (X)
6 X (X) X (X) X X
8 X (X) X (X) X (X) X (X)
10 X (X) X (X) X X X (X) X (X)
12 X (X) X (X) X (X) X (X) X (X) X (X)
14 X (X) X (X) X (X) X (X) X (X) X (X) X X
16 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X)
18 X (X) X X X (X) X (X) X (X) X (X) X (X) X (X) X (X)
20 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X)
22 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X X X (X) X (X) X (X)
24 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X)
26 X (X) X (X) X (X) X (X) X (X) X X X (X) X (X) X (X) X (X) X (X) X (X) X (X)
28 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X)
30 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X X X (X)
32 X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X) X (X)

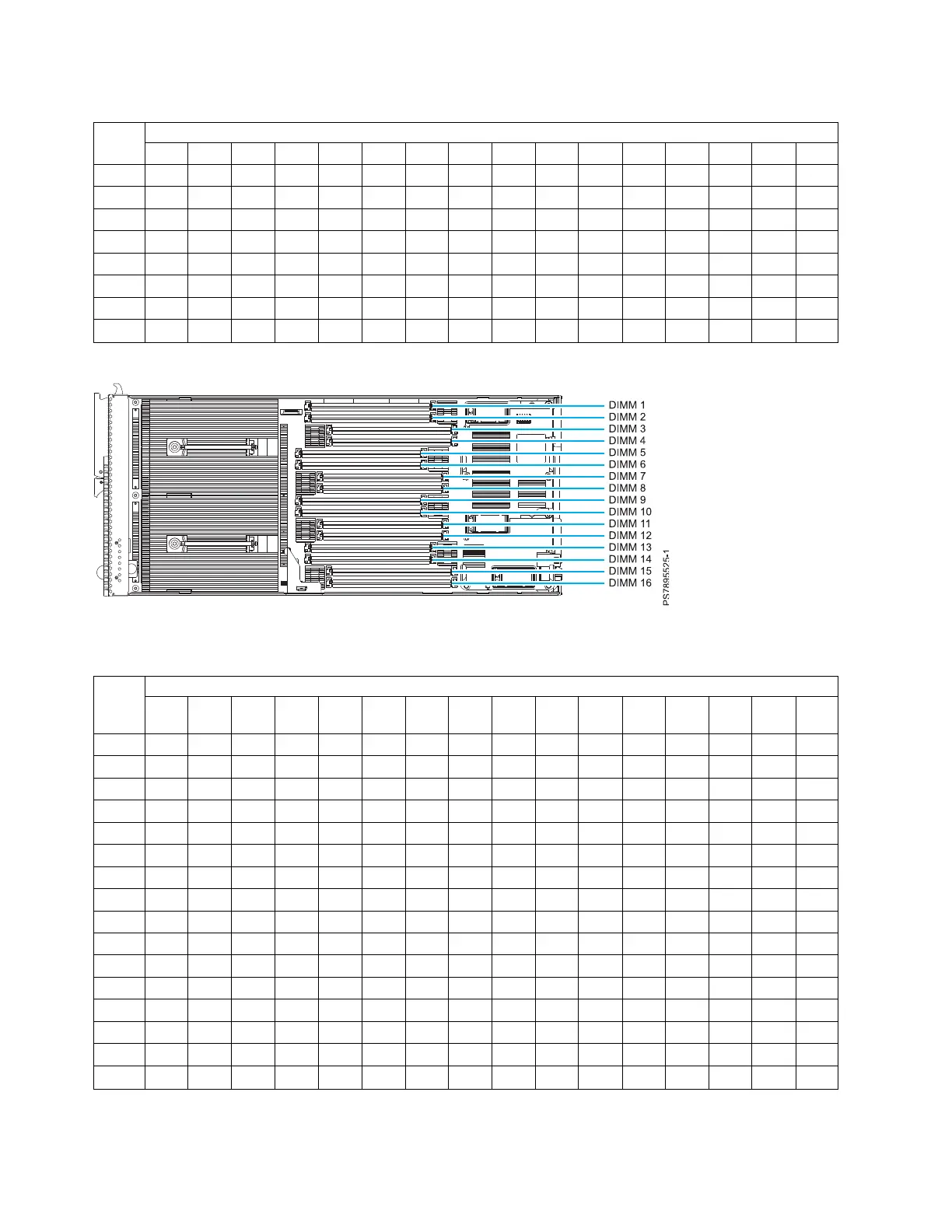

Figure 27. DIMM connectors for the IBM Flex System p260 Compute Node
60 Power Systems: IBM Flex System p260 and p460 Compute Nodes Installation and Service Guide
