Chapter 3. Systems management 95
Clicking an I/O Module
(Device Name) opens up a window showing its properties
(Figure 3-12).

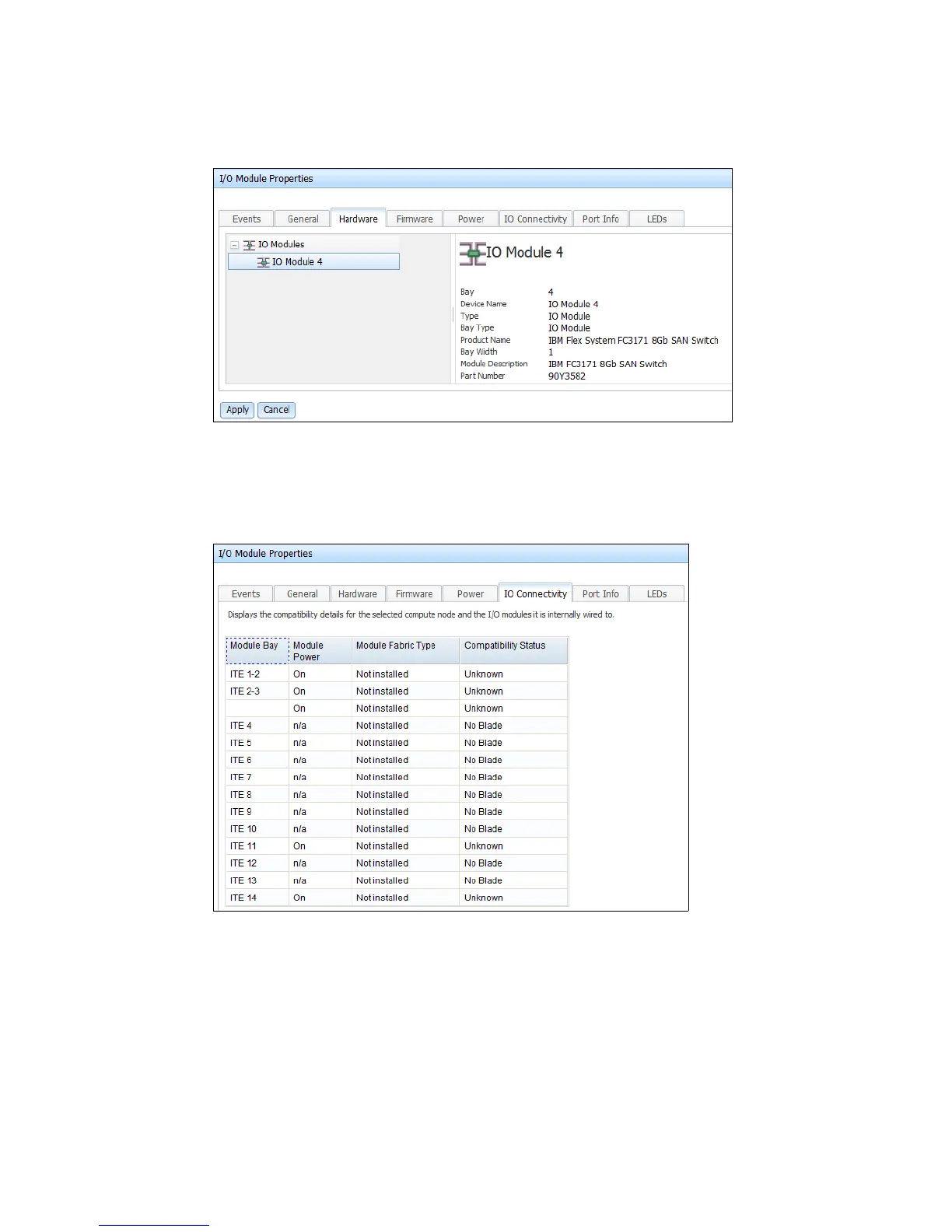

Figure 3-12 Properties of I/O Module device
The Properties window has multiple tabs, showing detailed information regarding the module.
Click the IO Connectivity tab to view the connectivity details between the I/O module and the
compute nodes in the IBM Flex System, as shown in Figure 3-13.
Figure 3-13 IO Connectivity Status of an I/O Module
