56 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

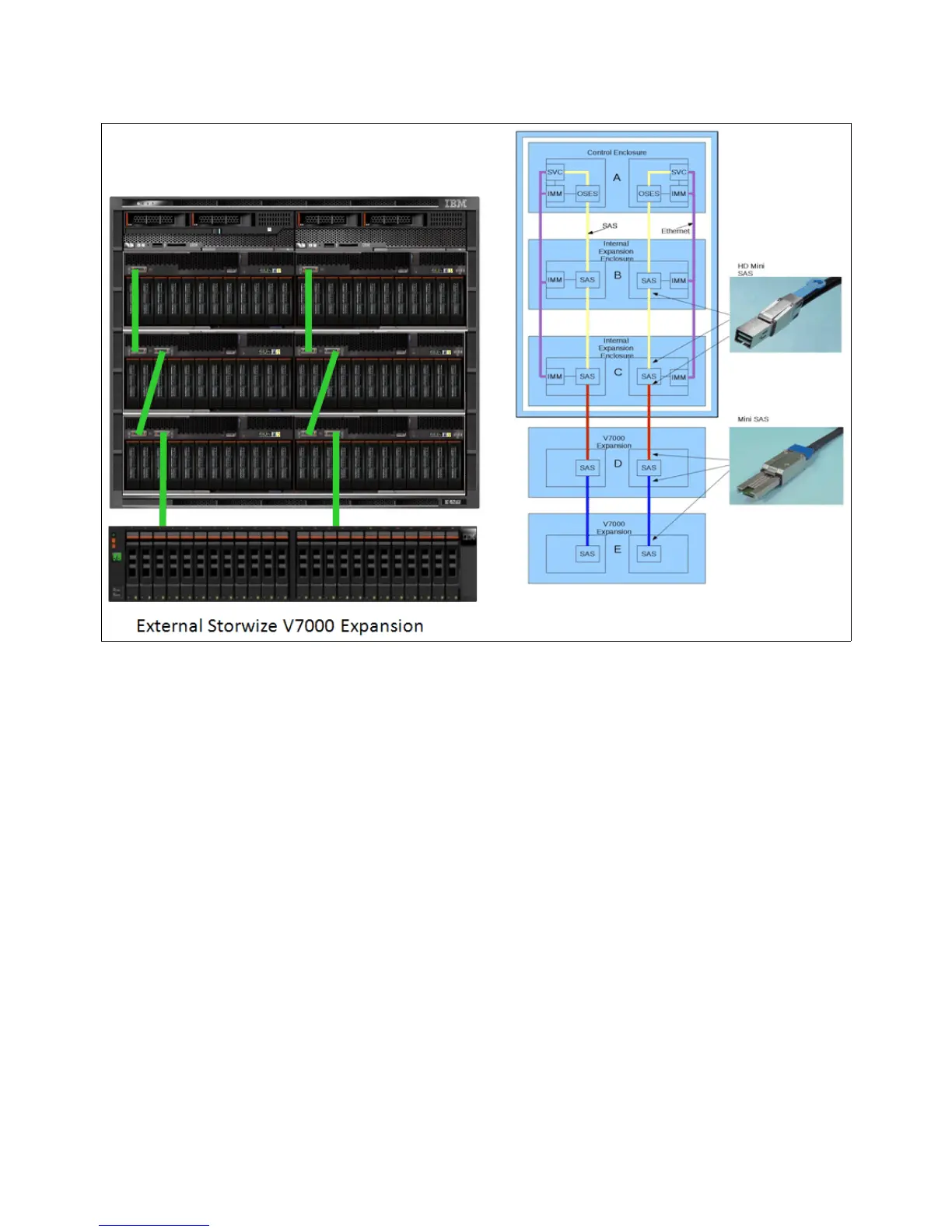

Figure 2-12 IBM Flex System V7000 Storage Node cabling internal SAS and external
Notice that the IBM Flex System V7000 Storage Node cabling is done directly from top to
bottom down through its expansions, including any additional external expansions.
2.5 IBM Flex System V7000 Storage Node components
The IBM Flex System V7000 Storage Node is an integrated entry / midrange virtualization
RAID storage to support and interface with the IBM Flex System. It brings with it the following
benefits:
Offers a single point of management for server, network, internal storage, and external
storage, virtualized by the integrated IBM Flex System V7000 Storage Node.
Gives improved access to critical data by keeping data close to the servers by minimizing
switch and cable hops.
Provides virtual servers fast shared storage access to better enable dynamic workload
assignments.
Moves the control of the virtual server storage over to the server administrators rather than
in the hands of the SAN administrators.
Uses the IBM Flex System Enterprise Chassis for lower solution costs, thus eliminating
the need of external switches, cables, SFPs, fans, power supplies, for production
environments.
