IBM Flex System V7000 User Manual

Chapter 4. IBM Flex System V7000 Storage Node initial configuration 155
4.2.1 Using FSM for initial setup
Now that you have installed the IBM Flex System V7000 Storage Node in the chassis with
supported level of code, you can create and configure a clustered system using the FSM. The
following procedure guides you through the necessary steps when using the FSM web user
interface:
1. Open a web browser and point it to the IP address of the FSM and log in. The following
menu panel (Figure 4-1) displays, giving you a number of selections.
Select Launch IBM FSM Explorer from the menu list.

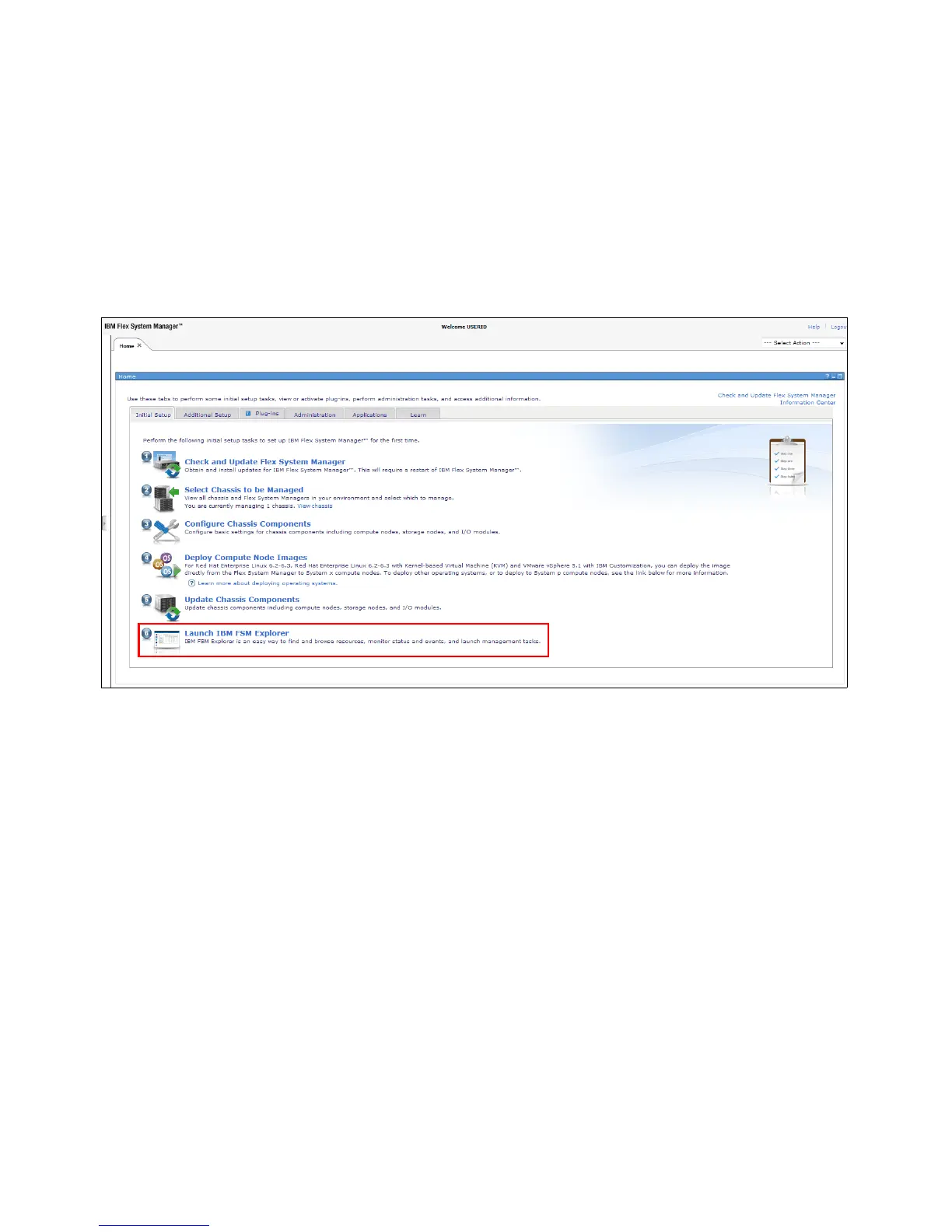

Figure 4-1 Launch IBM FSM Explorer

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
