156 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Notice that a new browser tab is opened, which allows you to select the applicable
enclosure from the Chassis Map as shown in Figure 4-2.

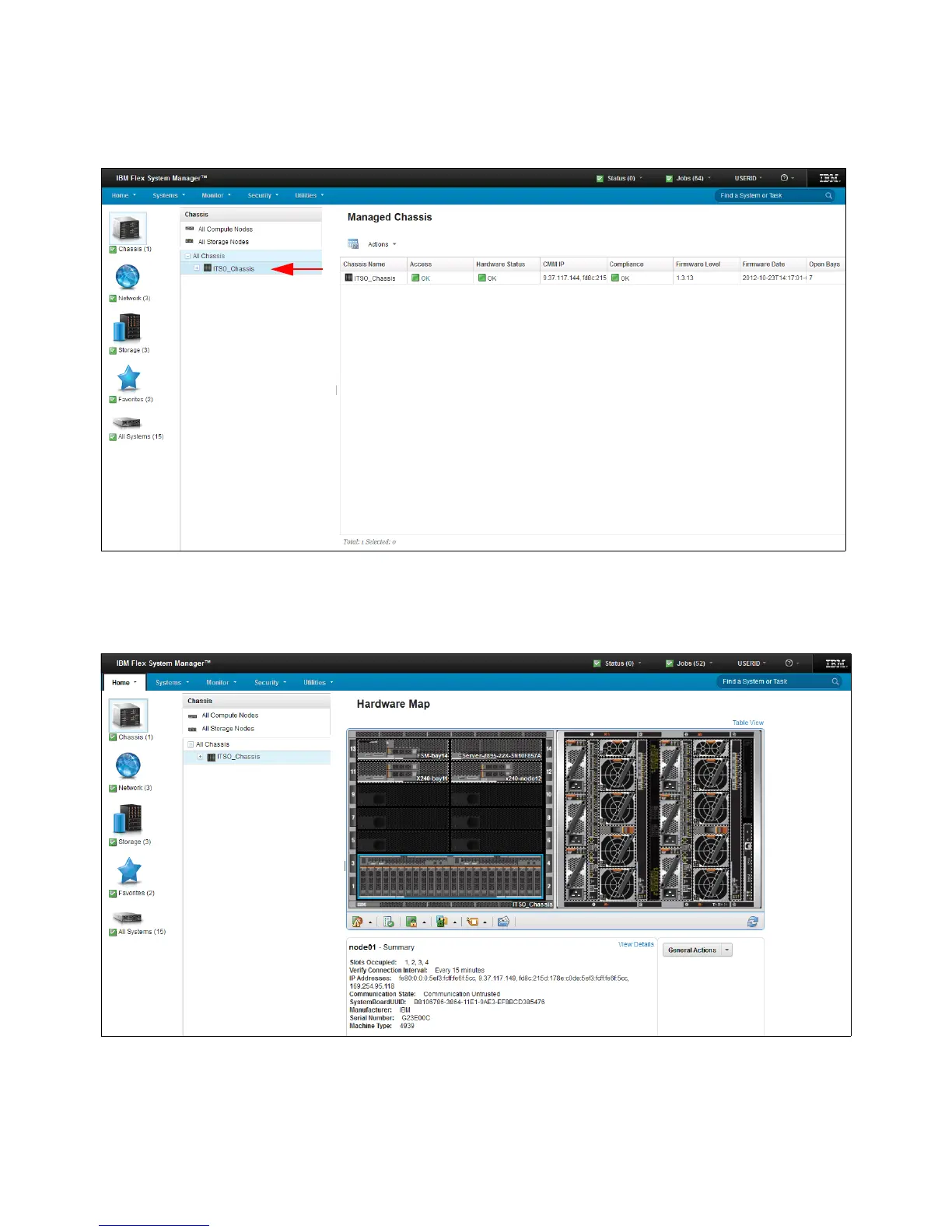

Figure 4-2 Select and launch the chassis in the Chassis Manager
2. In the Chassis Manager, select the applicable chassis which will launch the Chassis Map
for that chassis, as shown in Figure 4-3.
Figure 4-3 IBM Flex System Manager - Hardware Map

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
