94 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
You can also view and configure IP addresses using IBM Flex System Manager as well as the
node-specific management controllers.
There are numerous functions and features offered by the IBM Flex System Chassis
Management Module that are beyond the scope of this publication. However, we cover the I/O
module access features in the next section, due to its relevance with storage management.
For detailed information regarding IBM Flex System Chassis Management Module
configuration capabilities, visit the following website:
http://publib.boulder.ibm.com/infocenter/flexsys/information/topic/com.ibm.acc.cmm
.doc/cmm_ui_config_the_cmm.html
Or, see Implementing Systems Management of IBM PureFlex System, SG24-8060.
3.2.4 Accessing I/O modules using CMM
The IBM Flex System Chassis Management Module performs end-to-end management of all
components in the solution. It allows many functions and features that can be performed on
I/O Modules, as well as, it gives access to platform-based management interfaces of the
modules for in-depth management.
To access the properties and configuration of I/O Modules through IBM Flex System
Manager, click Chassis Management
I/O Modules, as shown in Figure 3-10.

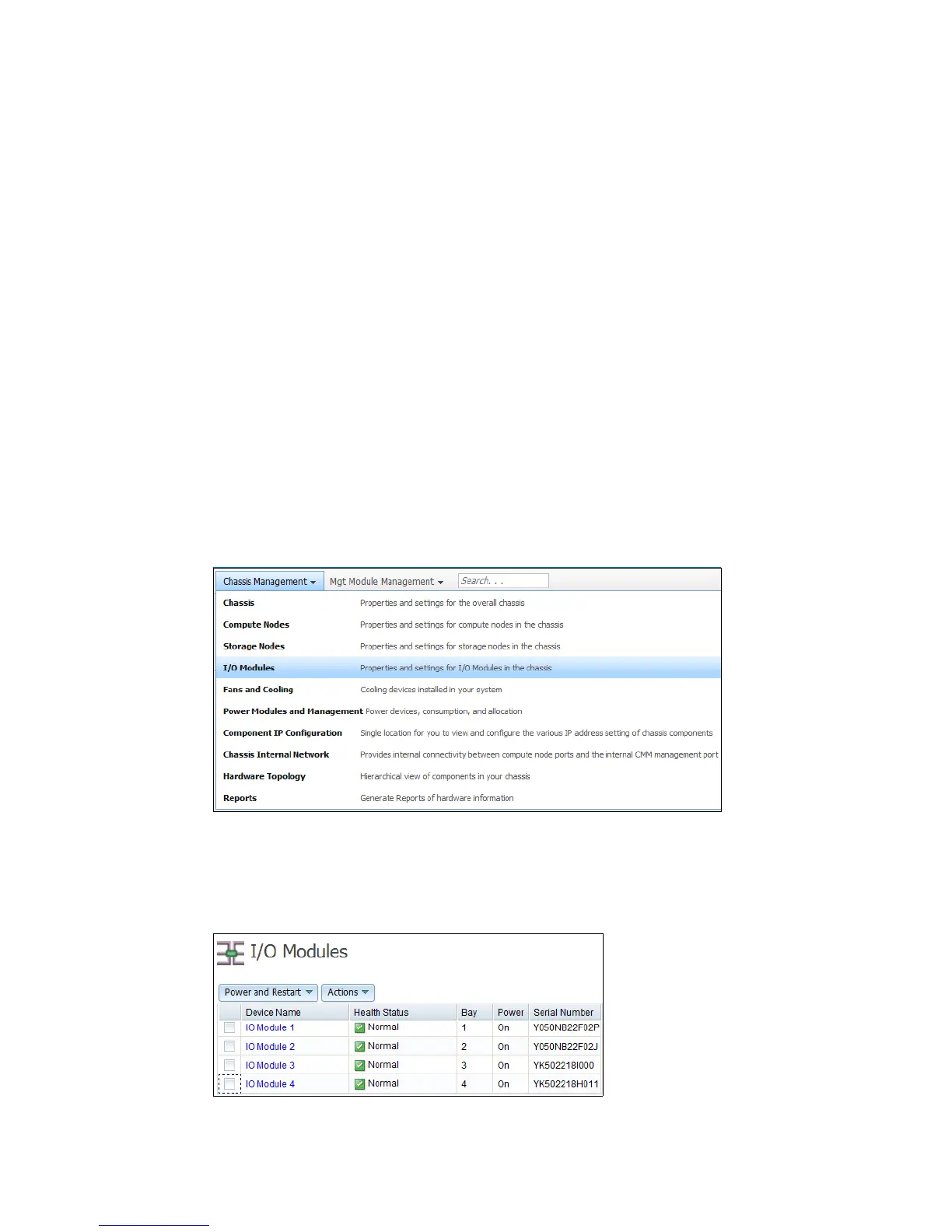

Figure 3-10 FSM - Accessing I/O Modules
The next view shows the available I/O modules in IBM Flex System. It also gives options to
Power and Restart the modules as well as the Actions that can be performed on them, as
shown in Figure 3-11.
Figure 3-11 Viewing I/O Modules in FSM
