96 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
To open the Module-specific Management interface, click the I/O Module wanted, then the
Actions drop-down button, as shown in Figure 3-14.

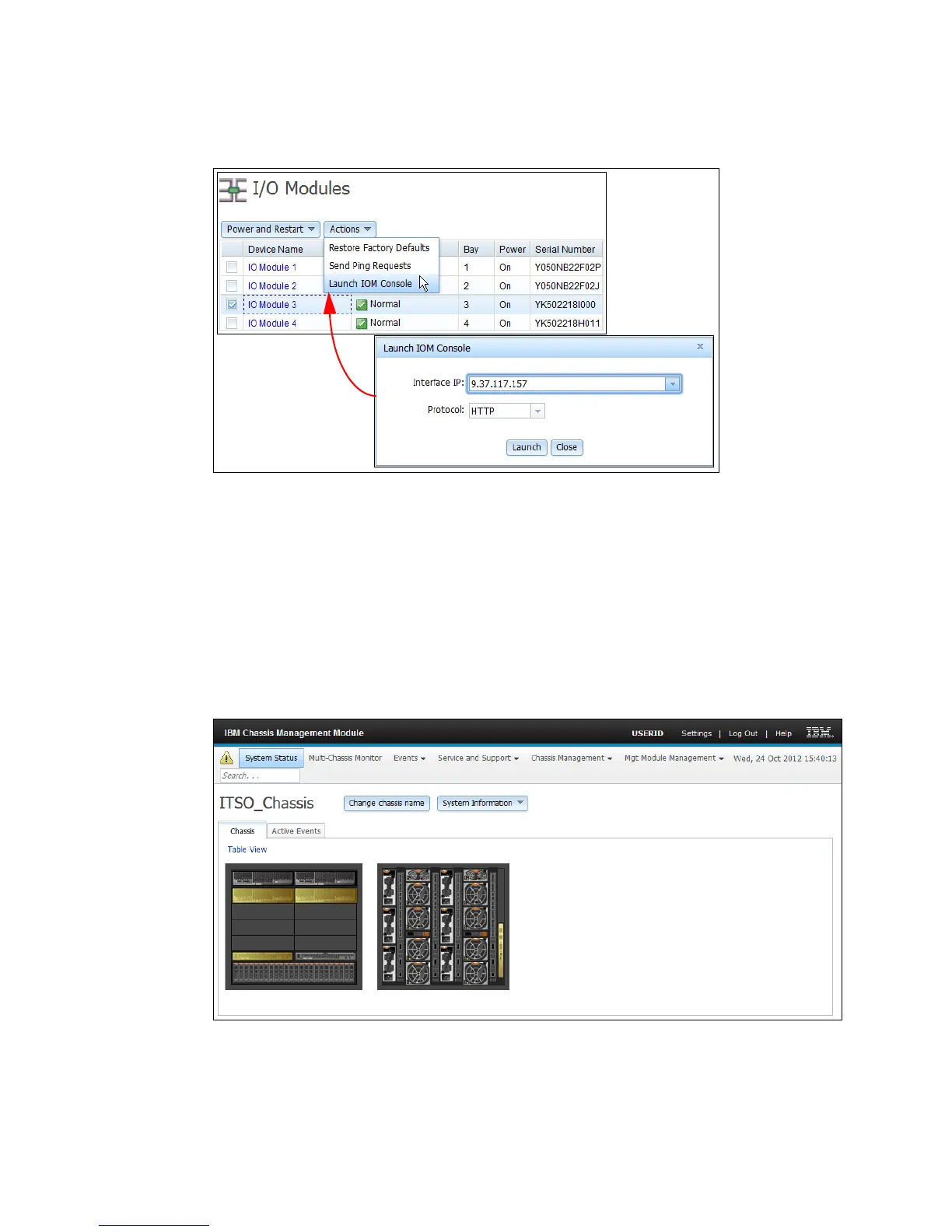

Figure 3-14 Launching IOM Console by CMM
The drop-down menu gives the option to select HTTP or HTTPS protocol. In case of most I/O
Modules, HTTPS might need to be selected. It will result in execution of the Switch Modules
platform-level management interface.
3.2.5 Managing storage using IBM Flex System Chassis Management Module
After completing initial setup, a subsequent login into CMM opens the System Status page.
The top of the page identifies the current user and contains a
Settings menu and Log Out
option, as shown in Figure 3-15.
Figure 3-15 IBM Chassis Management Module Chassis Map

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
