Chapter 3. Systems management 97
The
System Status shows the view of Chassis, front and back. It also shows health status of
the individual physical components.
Scrolling the mouse on the selected component opens a pop-up windows that lists its name,
location, and FRU number, as shown in Figure 3-16.

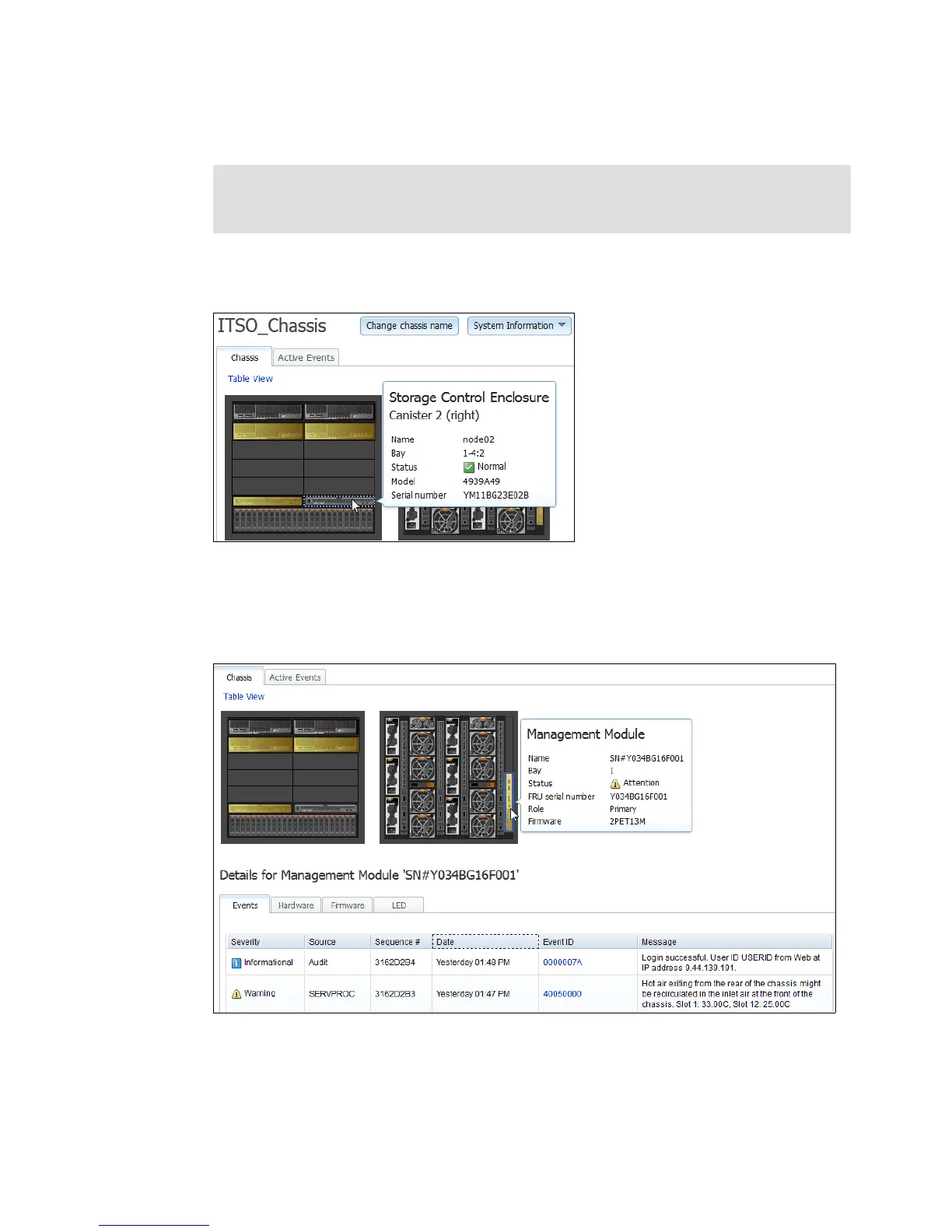

Figure 3-16 CMM chassis view - component pop-up
When you click a component, details about it emerge in the lower part of interface. Depending
on the component, one or more tabs show information regarding hardware, firmware, events,
and other information. An example is shown in Figure 3-17.
Figure 3-17 CMM - Details of the selected Chassis component
The System Information (blue) button, which is located above the graphical representation of
the Chassis, gives a quick view of the selected component’s information.
Tip: Except for the top menu items, the remaining content of the System Status page and
other web interface pages will vary according to the type of IBM Flex System Enterprise
Chassis that you are using and the firmware versions and options that are installed.

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
