98 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

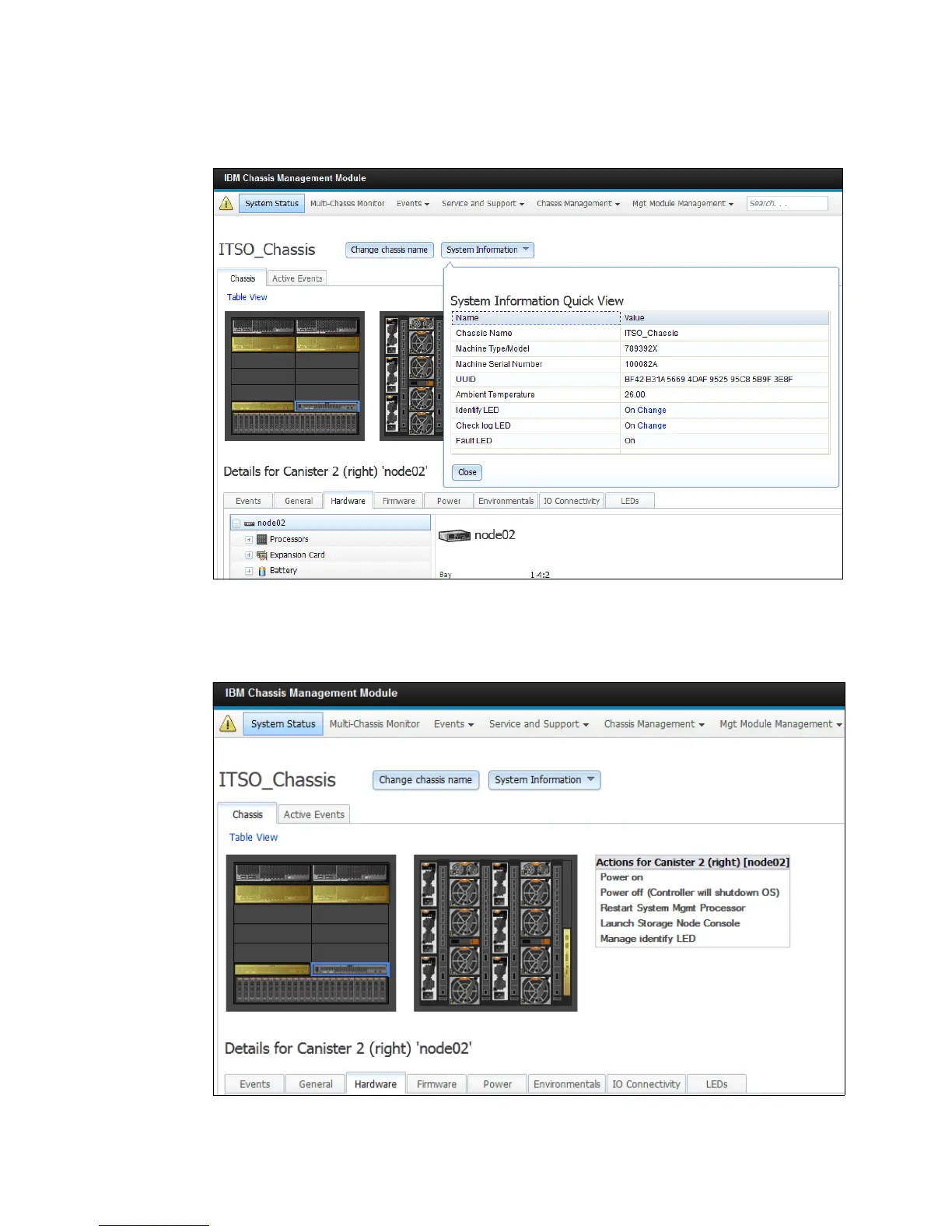

The quick view includes part information, serial number, health and temperature, and unique
identity (depending on the component), as shown in Figure 3-18.
Figure 3-18 CMM - System Information Quick View
Selecting a component also opens up an Actions frame, which lists the actions that can be
performed on that particular IBM Flex component, as shown in Figure 3-19.
Figure 3-19 CMM - Actions for Chassis Component

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
