IBM Flex System V7000 User Manual

Chapter 3. Systems management 103
The Storage Nodes view shows all the storage enclosures in the chassis, and gives options to
perform various actions on these, including power and restart options, as shown in
Figure 3-28.

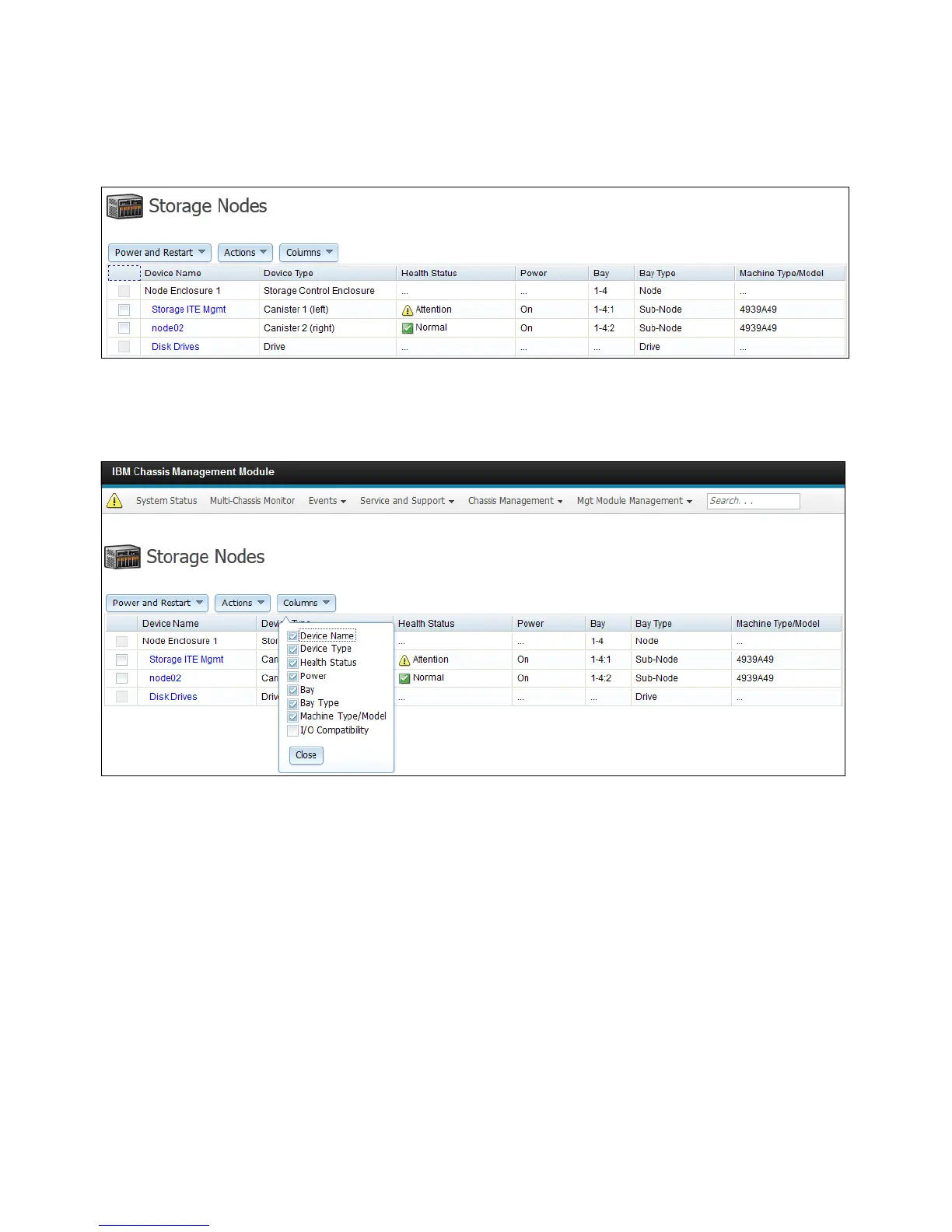

Figure 3-28 CMM - Storage Nodes - view of all enclosures
In the Storage Node view, you can select the column headers depending on how much detail
is wanted, as shown in Figure 3-29.
Figure 3-29 CMM - Storage Nodes view - columns

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
