Initial setup
Follow this procedure for the initial setup from the CMM interface:
1. Log in to the CMM and navigate to the Chassis Map. In the Chassis Map displayed by the
CMM, you will see all the IBM Flex System V7000 Storage Node enclosures installed in
the chassis.
2. Select the Actions menu and click Launch Storage Node Console. The Action menu
can be found by right-clicking the left canister in the graphical representation of the
storage node, as shown in Figure 4-8.

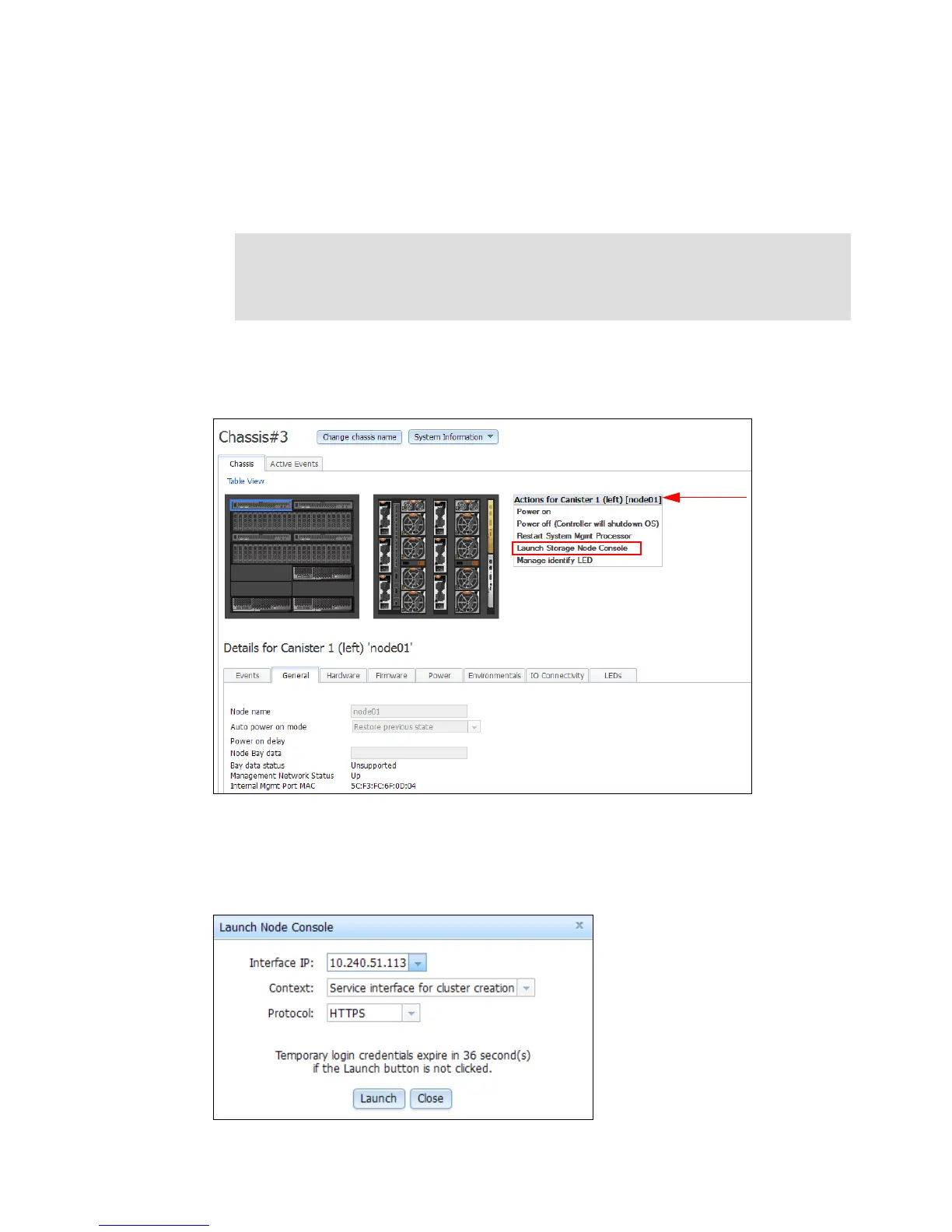

Figure 4-8 CMM - Select Launch Storage Node Console
3. A browser window displays the IBM Flex System V7000 Storage Node system startup
panel. The Service IP address displayed will be one that has been allocated by your
DHCP server as shown in Figure 4-9.
Figure 4-9 CMM - Launch Node Console
Tip: If you have installed more than one control enclosure in your IBM Flex System
V7000 Storage Node system, choose a control enclosure to be used to initialize the
system. It does not matter which control enclosure you choose. You cannot initialize the
system from an expansion enclosure.

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
