IBM Storwize V3700 User Manual

Each canister has two SAS ports that are numbered 1 on the left and 2 on the right.
Port 1 is always used. Port 2 is used only if this is not the last enclosure in the
chain.
Expansion enclosure support rails
The left and right expansion enclosure support rails (Figure 6) are designed
specifically for installation of an expansion enclosure.
v The ledge on the inside of each rail supports the entire length of an expansion
enclosure.
v The expansion enclosure support rails capture the left and right rear edges of an
inserted expansion enclosure. This prevents the installed control enclosure
bouncing when the rack is subjected to quake or vibration.
v The expansion enclosure support rails adjust to fit racks from 595 mm to 755
mm deep, measured between the front and rear rack rails.
1
2
2
1
v3500080

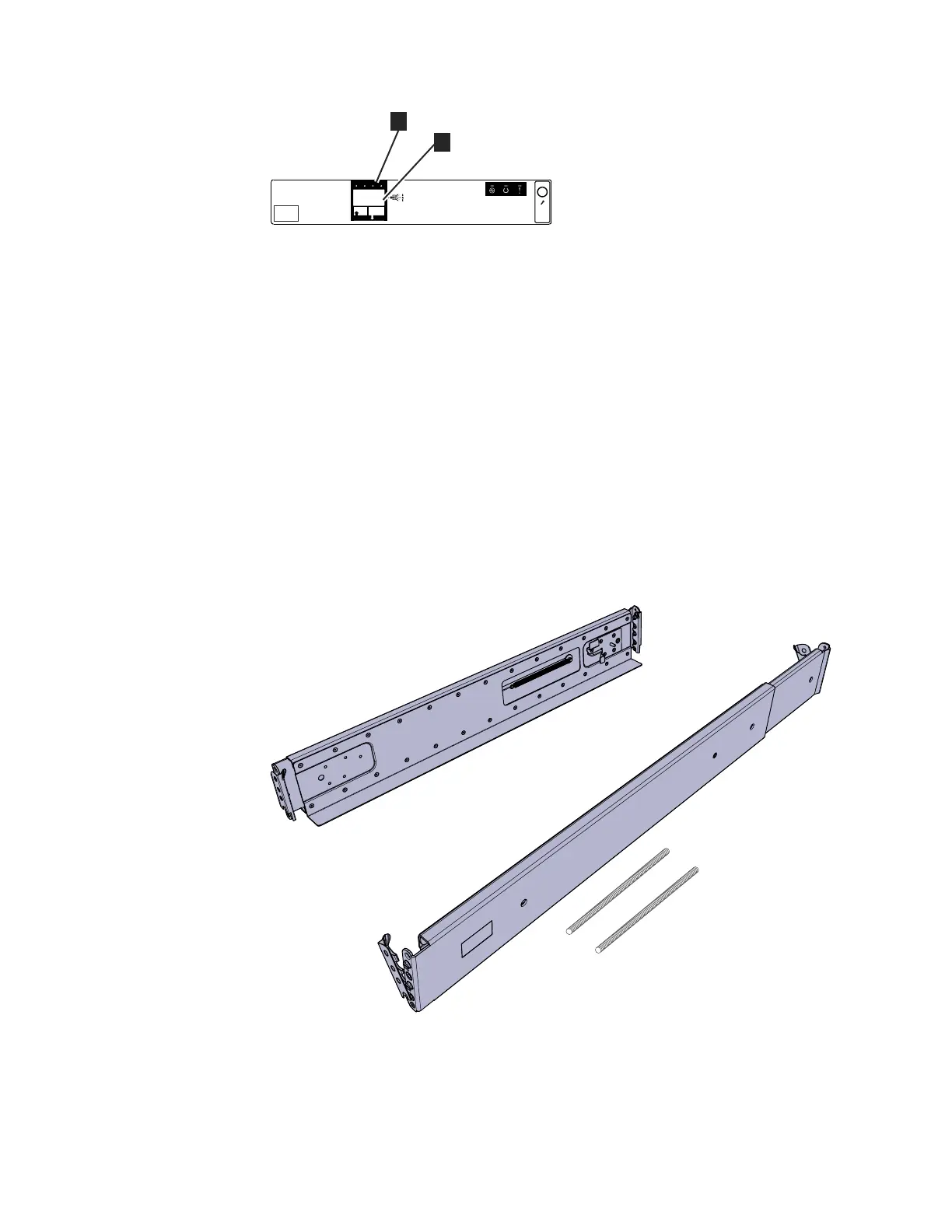

Figure 5. SAS ports and LEDs in rear view of a Storwize V3700 expansion canister
fab10053
Figure 6. Expansion enclosure support rails on Storwize V3700
Chapter 1. Before you begin the installation 9

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
