IBM Storwize V3700 User Manual

2. Loosen the retaining thumbscrew ▌1▐ as shown in Figure 18.
v ▌1▐ Retaining thumbscrew
v ▌2▐ Filler handle
v ▌3▐ Host interface adapter
v ▌4▐ Catch slot
3. From inside the canister, grasp the filler handle ▌2▐ and slide the filler plate
toward the thumbscrew to disengage the plate from the catch slot ▌4▐.
4. Remove the filler plate.
5. Insert the host interface adapter ▌3▐ into the canister as shown in Figure 18
6. Align the mounting bracket of the host interface adapter with the inside of the
host interface adapter aperture at the thumbscrew end of the canister,
ensuring that the tab at the end of the faceplate is aligned with the catch slot
▌4▐.
7. Align the connecting edge of the host interface adapter with the slot in the
host interface adapter connector inside the canister.
v3500104
1
2
4
3

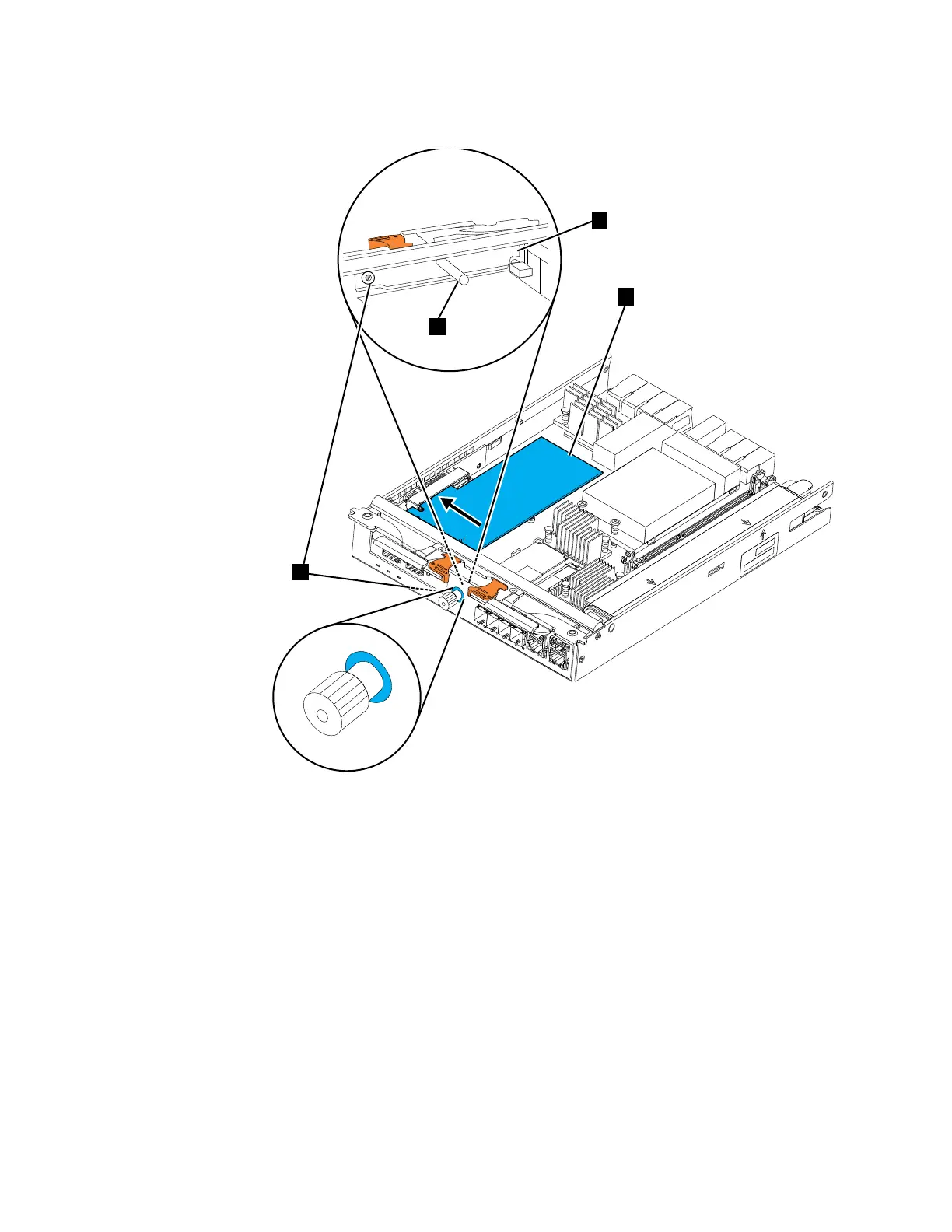

Figure 18. Installing 8 Gbps Fibre Channel 4-port host interface adapter
Chapter 2. Installing the hardware 29

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
