About this task
The Ethernet port numbering on the host interface adapter starts at 3, because
Ethernet ports one and two are built into the canister.
Note: The fibre cables are connected in pairs. Both canisters must have the same
number of cables connected.
Procedure
To install the cables, complete the following steps.
1. Identify the correct pair of fibre cables for the Ethernet ports that are labeled 3
in the left canister and the right canister.
2. Connect the appropriate cable to each port.
3. For each additional pair of Ethernet ports in the right and left canisters,
identify the correct pair of cables and connect them.
Results
Figure 32 shows an example configuration. The figure shows a pair of Ethernet
cables that are connected to port 3 in each canister, and another pair that is
connected to port 4 in each canister.
1 2 3
4
6
1
2
1
2
OK
IN
1 2 3
4
6
1
2
1
2
OK
IN
v3500102
1
2
LNK
TxRx
1
2
LNK
TxRx

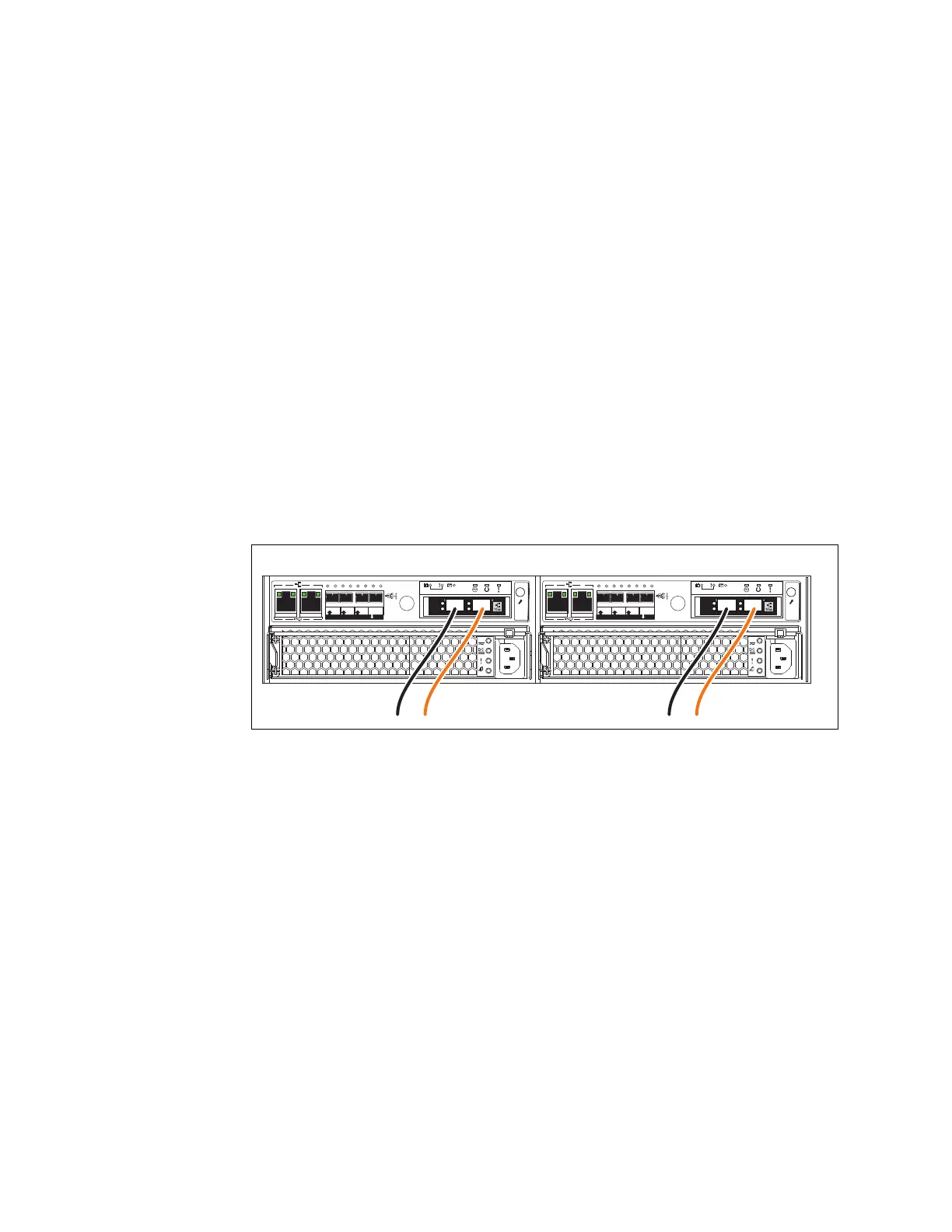

Figure 32. Example configuration with two pairs of Ethernet cables connected to 10 Gbps
iSCSI-FCoE 2-port host interface adapters
46 Storwize V3700: Quick Installation Guide

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
