4. Working at the front of the rack cabinet, identify the two standard rack units
(2U) of space in the rack into which you want to install the support rails.
Figure 11 shows two rack units with the front mounting holes identified.
v ▌1▐ Upper rail mounting bracket pin
v ▌2▐ Lower rail mounting bracket pin
v3500067

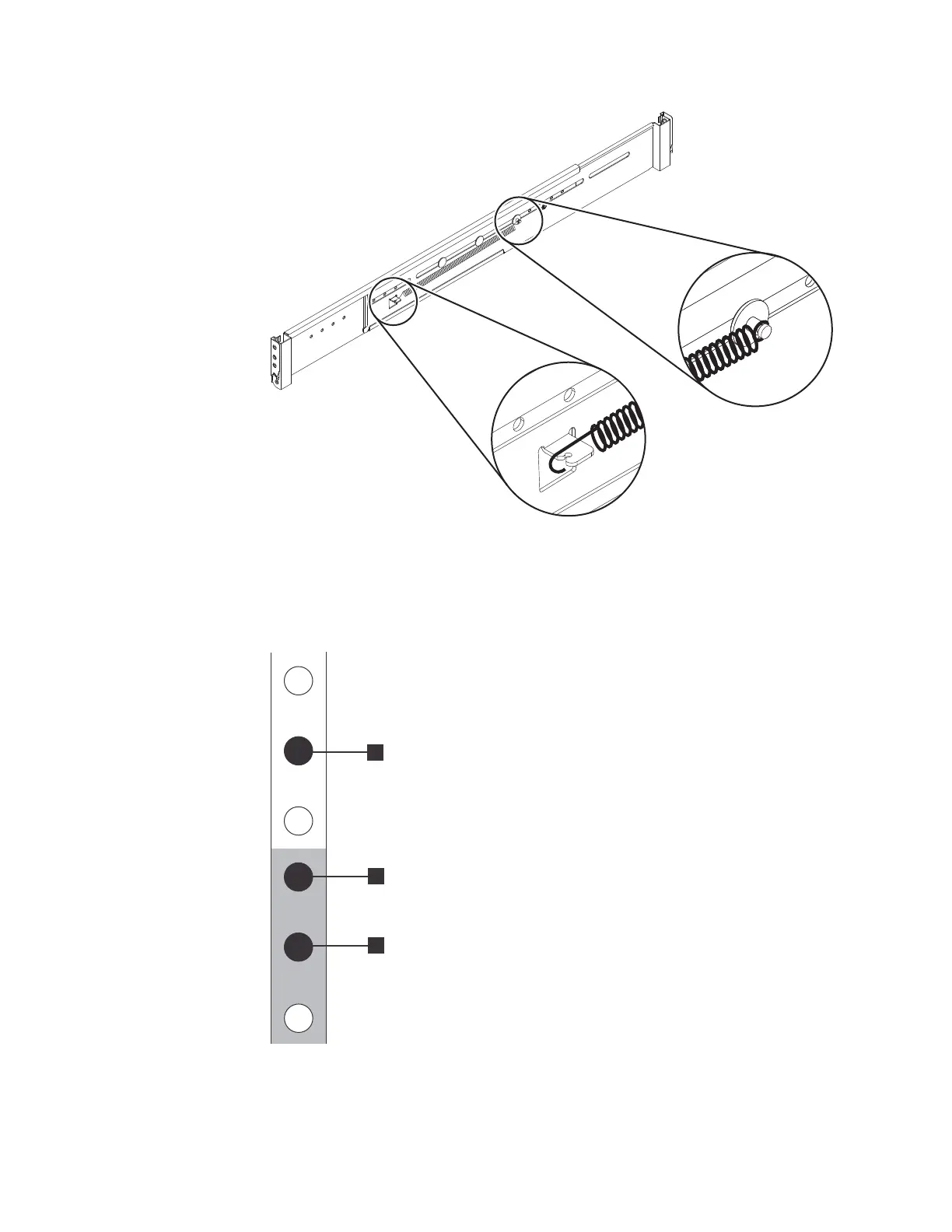

Figure 10. Installing the rail spring
1
2
3
v3500162
Figure 11. Hole locations in the front of the rack
Chapter 2. Installing the hardware 21

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
