v Mini SAS HD to Mini SAS (Figure 36)
Note: When inserting SAS cables, make sure that the connector is oriented
correctly.
v When connecting to the SAS ports on the left side of the node canister, the blue
pull tab must be below the connector.
v When connecting to a SAS 4-port host interface adapter, the blue pull tab must
be above the connector.
v Insert the connector gently until it clicks into place. If you feel resistance, the
connector is probably oriented the wrong way. Do not force it.
v When inserted correctly, the connector can only be removed by pulling the tab.
Procedure
To install the cables, complete the following steps.
1. Connect the required number of SAS cables. Refer to the “Planning” section of
the Knowledge Center for instructions on determining the number of cables
required.
Note: When connecting to the SAS ports on the left side of the node canister,
each host must be connected to both canisters. Both canisters must have the
same number of cables connected.

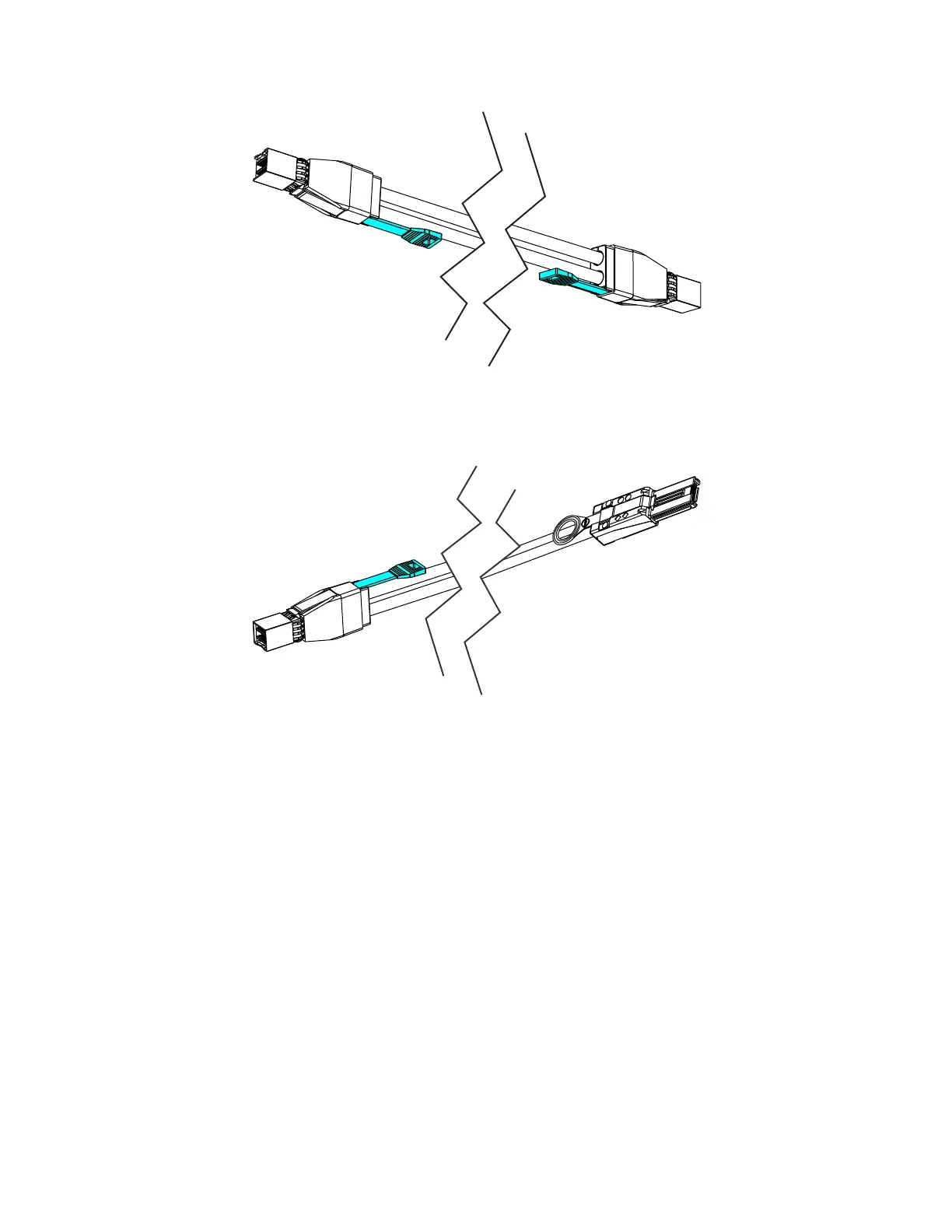

Figure 35. Mini SAS HD to Mini SAS HD cable
Figure 36. Mini SAS HD to Mini SAS cable
48 Storwize V3700: Quick Installation Guide
