IBM Storwize V3700 User Manual

v ▌1▐ Retaining thumbscrew
v ▌2▐ Filler handle
v ▌3▐ Host interface adapter
v ▌4▐ Catch slot
2. From inside the canister, grasp the filler handle ▌2▐ and slide the filler plate
toward the center of the canister to disengage the plate from the catch slot.
3. Remove the filler plate.
4. Insert the host interface adapter ▌3▐ into the canister as shown in Figure 20.
5. Align the mounting bracket of the host interface adapter with the inside of the
host interface adapter aperture at the rear of the canister, ensuring that the tab
at the end of the faceplate is aligned with the catch slot.
6. Align the connecting edge of the host interface adapter with the slot in the host
interface adapter connector inside the canister.
7. Apply pressure to the opposite edge of the host interface adapter to push the
adapter into the connector.
8. Check that the host interface adapter is installed squarely in its slot and tighten
the retaining thumbscrew ▌1▐.
v3500104
1
2
4
3

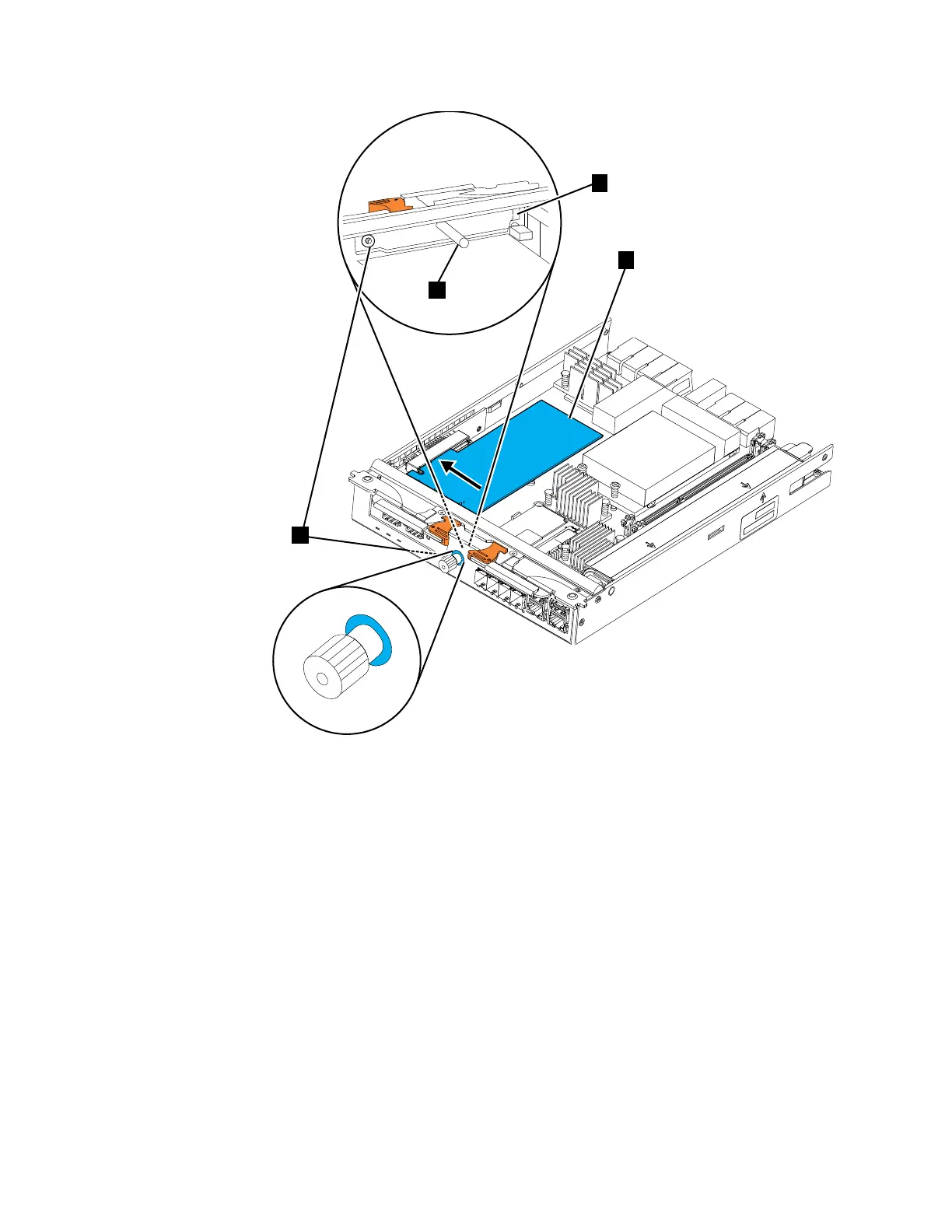

Figure 20. Installing 1 Gbps iSCSI 4-port host interface adapter
Chapter 2. Installing the hardware 33

IBM Storwize V3700 Specifications

General

Model	IBM Storwize V3700
Maximum Drives	120
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Types	SAS, Nearline SAS, SSD
Host Interface	1 Gb iSCSI, 10 Gb iSCSI, 6 Gb SAS, 8 Gb FC
Cache	4 GB per control enclosure
Number of Host Ports	4 per control enclosure
Cache Memory	4 GB per control enclosure
Power Supply	Dual, hot-swappable
Operating Temperature	10°C to 35°C
Non-operating Temperature	-40°C to 60°C (-40°F to 140°F)
Operating Humidity	20% to 80%
Non-operating Humidity	5% to 95%
Dimensions	8.7 cm x 48.3 cm x 55.6 cm
