v ▌1▐ Retaining thumbscrew
v ▌2▐ Filler handle
v ▌3▐ Host interface adapter
v ▌4▐ Catch slot
b. From inside the canister, grasp the filler handle ▌2▐ and slide the filler plate
toward the center of the canister to disengage the plate from the catch slot.
c. Remove the filler plate.
3. Insert the 10 Gbps iSCSI-FCoE 2-port host interface adapter ▌3▐ into the
canister as shown in Figure 19.
4. Align the mounting bracket of the host interface adapter with the inside of the
host interface adapter aperture (adjacent to the thumbscrew), ensuring that the
tab at the end of the faceplate is aligned with the catch slot.
5. Align the connecting edge of the host interface adapter with the slot in the host
interface adapter connector inside the canister.
6. Apply pressure to the opposite edge of the host interface adapter to push the
adapter into the connector.

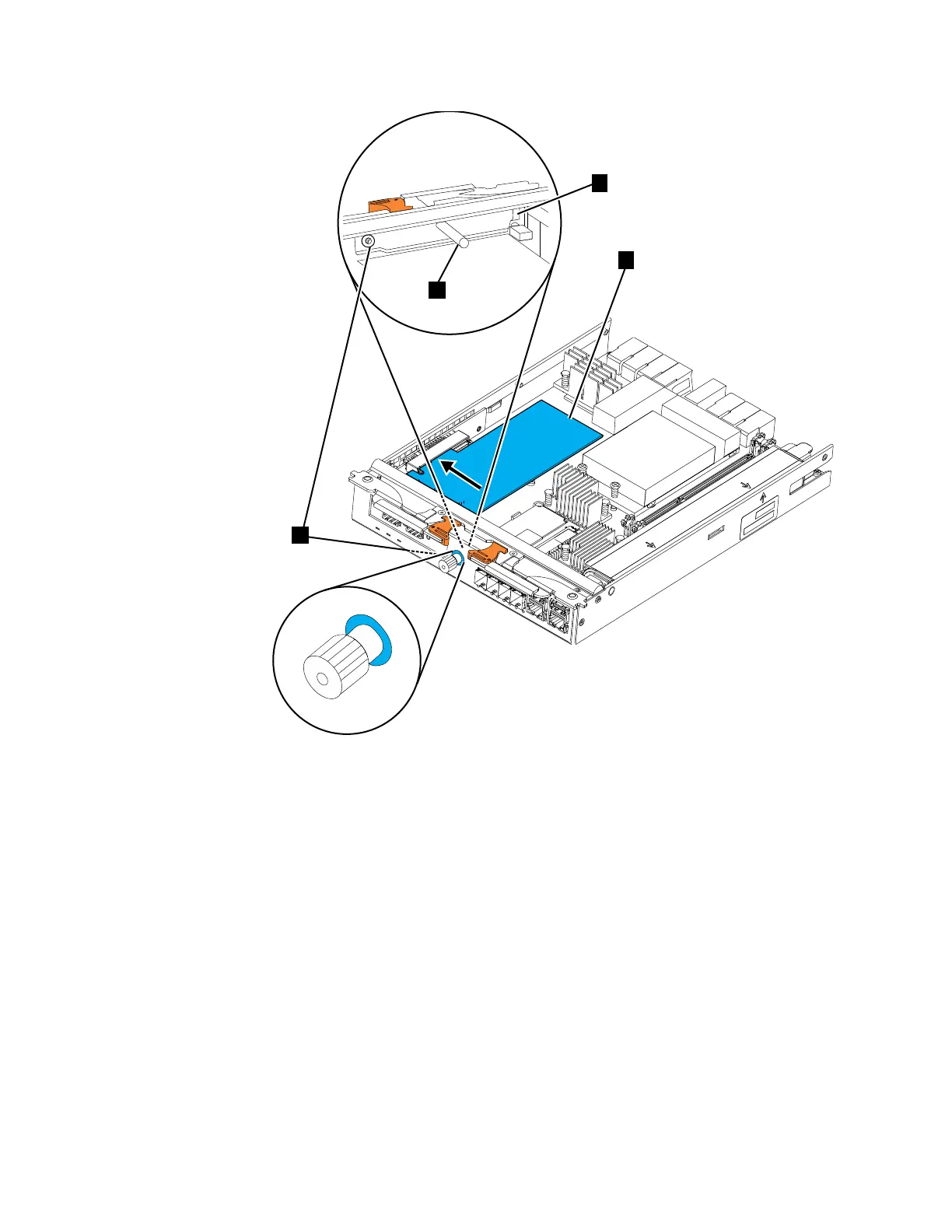

Figure 19. Installing 10 Gbps iSCSI-FCoE 2 port host interface adapter
Chapter 2. Installing the hardware 31
